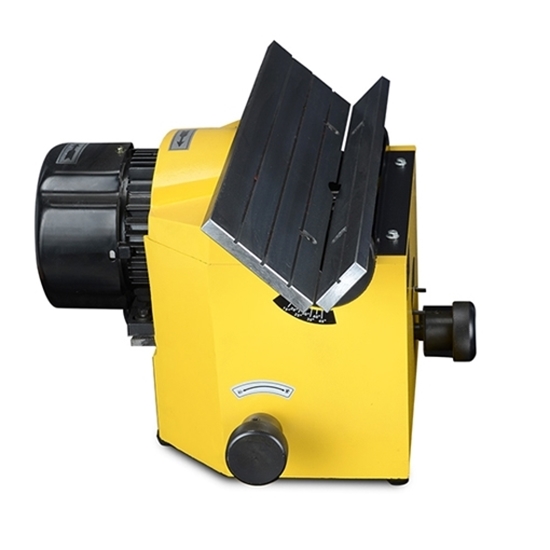

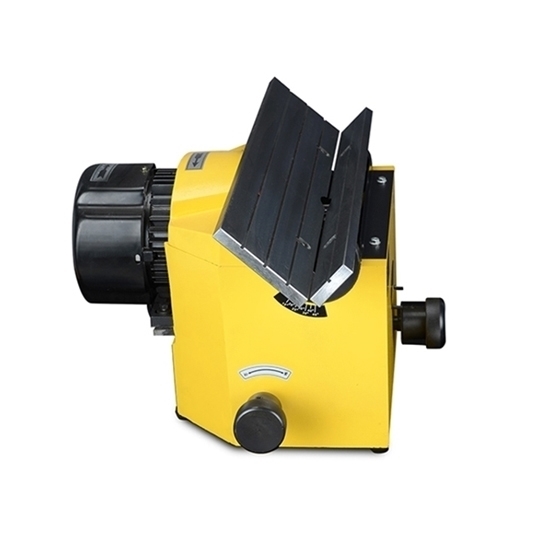

    Chamfering Machine with Chamfer Mill, 45 Degree

    Cost-effective chamfering machine with optional chamfering range 0~3 mm/ R1-R4 angle/C3 angle, chamfering angle 15°~45°, power supply 380V, motor power 550W. The deburring and chamfering machine is suitable for workpieces without heat treatment, such as the chamfering of various molds and mechanical parts.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The deburring/chamfering machine uses a side chamfer mill for working, with the corresponding speed 2800rpm/3000~6000rpm adjustable. The chamfering machine has the advantages of simple operation, easy adjustment, economic reliability and high efficiency.


    • Deburring/chamfering machine is suitable for batch processing of unheated workpieces, such as various molds and mechanical parts. Precise chamfering and good surface roughness.
    • No clamping, simple operation, regular chamfering, economical and reliable, and greatly improve efficiency.
    • The deburring/chamfering machine model ATO-CFM-R300D can chamfer the R angle and C angle.


    Model ATO-CFM-R300 ATO-CFM-R300D
    Speed 2800rpm 3000~6000rpm
    Chamfering Range 0~3 mm R1-R4/C3
    Dimension 53.5*38.5*30cm 40*30*22cm
    Weight 38 kg 27 kg
    Chamfering Angle 15°~45°
    Rated Voltage 380V
    Motor Power 550W
    Accessories Blade*9
    Cutting Head*1
    Allen Wrench*3
    Warranty 1 year

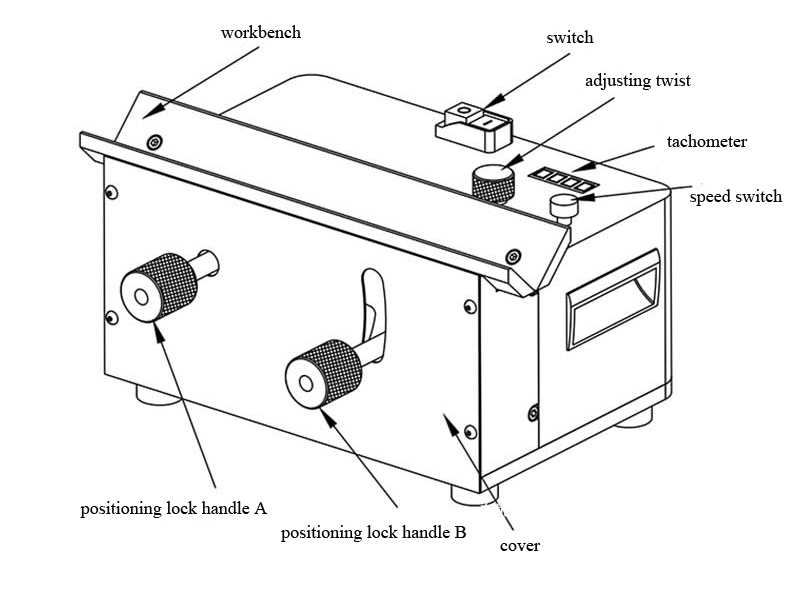

    Structure Diagram


    Chamfering machine with chamfer mill structure diagram


    Chamfering machine with chamfer mill structure diagram


    The deburring/chamfering machine is suitable for large workpieces of any length, unheated and not easily moved, such as chamfering in the manufacturing process of various molds and mechanical parts. In addition, it is also suitable for batch processing of small workpieces, deburring for metal pipes, metal plates, molds, and mold frames, and manufacturing of mechanical equipment and hardware parts, etc.

    Portable chamfering machine application

    Tips: How to maintain the chamfering machine?

    1. After each shift, clean up the iron filings left on the machine tool to keep the machine tool clean.
    2. Observe the tightness of the belt and adjust it if necessary.
    3. Frequently check whether the fastening screws of each part are loose.
    4. If the blade is worn or damaged, adjust the blade to use other cutting edges to rotate an angle until it is firm. If the 4 cutting edges of the blade are worn, just replace them.
