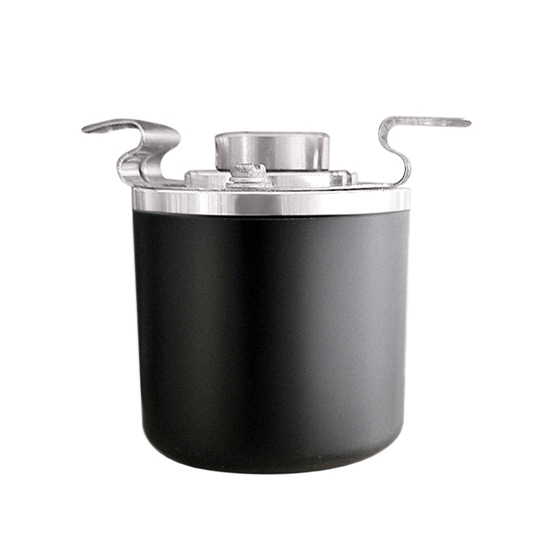

    Incremental Rotary Encoder, Blind Shaft, 800 ppr

    $237.46
    Low priced optical incremental encoder adopts blind shaft and cable edge output mode. Rotay encoder with 800 rrp resolution, 8mm shaft diameter, 52mm shell diameter, has small installation dimension, high reliability, high quality, 6 output modes to choose, manufacturer direct sale.
    SKU: ATO-IRE-800PB
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-20 days

    Incremental optical rotary encoders with 800 ppr can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.

    Features:

    • Incremental rotary encoder internal adopts ASIC devices
    • High reliability, long life
    • Anti-jamming performance
    • Small size, light weight, compact structure
    • Easy installation

    Specification:

    Basics Model ATO-KP5208G-800BM
    Weight 100 g
    Wiring Color Red Black Green White Yellow Brown Gray Orange
    Signal Vcc GND A B Z A- B- Z-
    Mechanical properties Maximum shaft speed (r/min) 5000
    Starting torque <0.03Nm (25℃)
    Maximum shaft load Radial load: 35N, axial load: 15N
    Shock resistance 50G/11ms
    Anti-vibration 10G (10~2000Hz)
    Rotational inertia 4X10-8kgm2
    Operating temperature -30~+85℃ (-22~+185℉)
    Storage temperature -35~+95℃ (-31~+203℉)
    Protection Level IP51
    Electrical characteristics Output circuit Open-collector output Voltage output Push-pull output Line driver output
    Supply voltage Vcc DC 5V±0.2 DC 5~24V DC 5V±0.2 DC 5~24V DC 5V±0.2 DC 5~24V DC5V±0.2 DC 5~24V
    Current consumption ≤60mA ≤60mA ≤60mA ≤100mA
    Output high level ≥3.5V ≥Vcc-2.5V - - ≥2.5V ≥Vcc-2.5V
    Output low level ≤0.5V ≤0.5V - - ≤0.5V ≤1.0V
    Rise time Tr ≤500ns ≤1500ns - - ≤200ns ≤500ns
    Fall time Tf ≤100ns ≤300ns - - ≤200ns ≤200ns
    Maximum frequency response 0~150kHz 0~150kHz 0~150kHz 0~150kHz 0~150kHz 0~150kHz

    Model selection:

    Shaft type Diameter of shell Diameter of shaft Connection type Cable length * Resolution Production identifier Z signal Z signal wavelength Output mode * Voltage *
    KP: Blind shaft 52: 52mm 08: 8mm G: Cable edge output 1: 1m
    2: 2m
    3: 3m
    4: 4m
    800: 800 ppr B M: Output 1 if receiving Z signal Default: 1T C: Open-collector NPN
    CP: Open-collector PNP
    T: Voltage ouput NPN+R
    P: Push-pull output NPN+PNP
    L: Line driver 26LS31
    K: Line driver 7272
    5: +5VDC
    830: +8~30VDC

    Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

    Tips: Accuracy of the incremental encoder

    The accuracy of the optical incremental encoder is not related to the resolution completely, and they are two total different concepts. Accuracy is a measure of the ability to determine the position of any pulse relative to another pulse within a selected range of resolution. Accuracy is usually expressed in terms of angle, arc minute or arc seconds. The accuracy of the encoder is related to the quality of the machining of the light-transmitting slit of the code disc, the manufacturing accuracy of the mechanical rotation of the code disc, and the installation technique.
