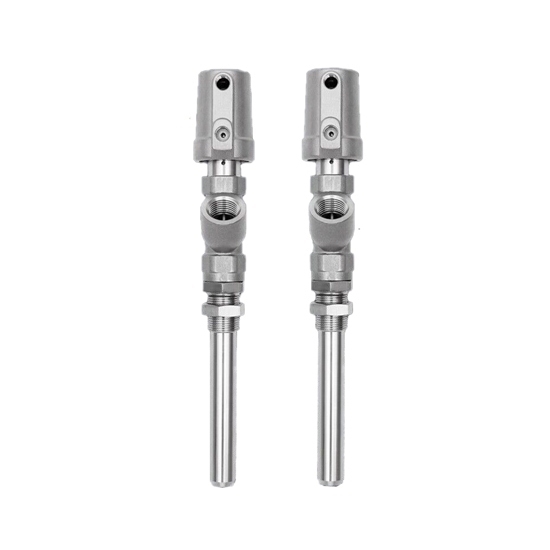

    1 1/2" Filling Valve, Stainless Steel

    Stainless steel material 1 1/2 inch filling valve, 304/316 stainless steel tube optional, corrosion-resistant, suitable for a wide range of liquids. Manufactured with exquisite craftsmanship to ensure efficient and stable operation. Applicable to a variety of working conditions, support high temperature and high-pressure environments.
    SKU: ATO-FV-DN40
    30-day Returns
    Free Shipping
    Delivery date: 7-10 days

    Selected stainless steel, 1 1/2 inch filling valve, the high-quality valve body is corrosion-resistant to ensure long-lasting use. Moderate size, widely used in multiple scenarios. Precision manufacturing, and reliable sealing to ensure efficient fluid control, ideal for providing stability and durability.


    Model ATO-FV-DN40
    Valve Body Material Stainless steel 304/316 (available options)
    Pressure Environment Atmospheric pressure
    Pipe Pressure 0-1.6 MPa
    Control Stress 0.3-0.8 MPa
    Medium Temperature -20℃~+200 ℃
    Shape Angle type
    Applicable Media Weak acid and alkali media
    Parts and Accessories Valve body
    Seal Form Soft seal type
    Sealing Material PTFE(polytetrafluoroethylene)
    Interface Form BSP Thread
    Ambient Temperature -10℃~+80 ℃
    Net Weight 4.5kg

    Structural Diagram

    Structures of filling valve

    Bore Diameter H1 (mm) H2(mm) H3 (mm) D (mm) ∅d (mm) ∅A (mm) M G1 (mm)
    DN40 165 100 40 50 44 29 55 1 1/2 inch


    Details of the filling valve


    • Widely used in filling machinery, especially suitable for viscous, paste, and easy-to-foam liquid filling.
    • Stainless steel tube valve body 316/304 optional, durable use, fine and compact fine workmanship, easy to drain the pipe layout.
    • The sealing design at the bottom of the filling head can realize the filling without dripping while ensuring the flow, all of which are finished by using CNC lathe and high-precision equipment, making the filling valve finer and more professional. The surface is bright and delicate.
    • Bottom chamfering design of filling head, excellent physical properties, strong acid resistance, high quality, with guiding and positioning role, can dive filling.
    • The head of the large-diameter filling valve adopts a gourd design, the filling valve is fast, accurate and stable, and reduces the weight without affecting the flow.


    Applications of filling valve

    Tips: 1 1/2" Stainless Steel Filling Valve Benefits

    The 1 1/2-inch stainless steel filling valve offers multiple advantages that make it ideal for use in fluid control applications.

    • First, the stainless steel material gives the valve excellent corrosion resistance, enabling it to work stably for long periods of time in harsh environments and extending its service life.
    • Secondly, the moderate size of 1 1/2 inches makes it widely applicable in a variety of scenarios, which can meet certain flow requirements and adapt to the limited installation space.
    • In addition, the stainless steel filling valve is designed with operational flexibility in mind, allowing for precise fluid control and ensuring the stability and efficiency of the production process. Its reliable sealing performance and superb manufacturing process enable the valve to maintain excellent working conditions even under high-pressure and high-temperature environments, ensuring the safety and reliability of the system.

    Overall, the 1 1/2-inch stainless steel filling valve has become a highly favored product in the field of fluid control due to its many advantages such as corrosion resistance, moderate size, flexible operation, and reliability.
