40mm Spherical Roller Bearing, Double Row

$78.15

SKU: ATO-SRB-40

Cost-effective spherical roller bearing features two row, an inner diameter of 40mm, an outer diameter of 90mm and a width of 33mm, P5 accuracy class. The double-row spherical roller bearing is widely used in papermaking machinery, reduction gears, crushers, etc.

45mm Spherical Roller Bearing, Double Row

$81.85

SKU: ATO-SRB-45

Lower cost double row spherical roller bearing features an inner diameter of 45mm, an outer diameter of 90mm and a width of 33mm, P5 accuracy class. The high-speed spherical roller bearing has the advantages of small size, low noise ad long service life.

15mm Tapered Roller Bearing, Single Row

$49.85

SKU: ATO-TRB-15

Good price tapered roller bearing for sale online. The single-row roller bearing with inner diameter of 15mm, outer diameter of 35mm, and a width of 11.75mm. The components of 15mm tapered roller bearing are separable and interchangeable and easy to maintain.

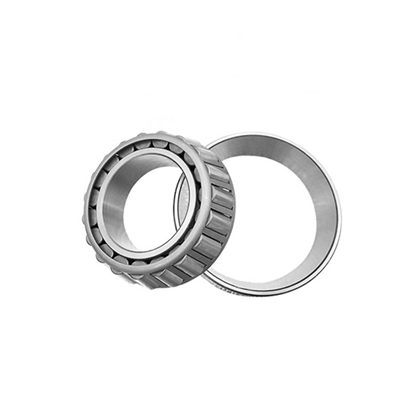

20mm Tapered Roller Bearing, Single Row

$51.33

SKU: ATO-TRB-20

Cheap price tapered roller bearing is a single-row roller bearing, which features inner diameter of 20mm, outer diameter of 47mm, and a width of 15.25mm. The single-row tapered roller bearing is made of high-quality material which makes the tapered roller bearings more durable.

25mm Single Row Cylindrical Roller Bearing

$58.15

SKU: ATO-CRB-25

Good price cylindrical roller bearing is a single-row roller bearing. The cylindrical roller bearing comes with an inner diameter of 25mm, an outer diameter of 52mm, and a width of 15mm, the accuracy class is P5. The simple structure with cylindrical rollers in linear contact with the raceways.

25mm Tapered Roller Bearing, Single Row

$55.99

SKU: ATO-TRB-25

Lower cost tapered roller bearing comes with inner diameter of 25mm, outer diameter of 52mm, width of 16.25mm, P6 accuracy class. The single row tapered roller bearing has the advantages of smooth operation, easy to use and long service life.

30mm Single Row Cylindrical Roller Bearing

$72.88

SKU: ATO-CRB-30

Cost-effective cylindrical roller bearing features an inner diameter of 30mm, an outer diameter of 62mm, and a width of 16mm, the accuracy class is P5. The single-row cylindrical roller bearing has good load-carrying capacity and long service life.

30mm Tapered Roller Bearing, Single Row

$62.37

SKU: ATO-TRB-30

Lower price single row tapered roller bearing comes with inner diameter of 30mm, outer diameter of 62mm, width of 17.25mm, P6 accuracy class. The 30mm roller bearing can run at high speed and rotate with very small friction resistance, so as to obtain high‑precision and stable movement.

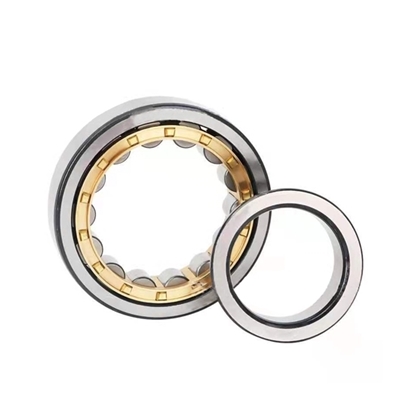

35mm Single Row Cylindrical Roller Bearing

$86.33

SKU: ATO-CRB-35

High-speed single row cylindrical roller bearing comes with an inner diameter of 35mm, an outer diameter of 72mm, and a width of 17mm, P5 accuracy class. The 35mm cylindrical roller bearing has uniform rotation speed, low noise and high efficiency.

35mm Tapered Roller Bearing, Single Row

$66.99

SKU: ATO-TRB-35

35mm single-row tapered roller bearing for sale. The high-speed tapered roller bearing comes with inner diameter of 35mm, outer diameter of 72mm, width of 18.25mm, and P6 accuracy class. The bearing has a professional and precise design to insure a perfect fit and correct operation, it has stable performance.

50mm Spherical Roller Bearing, Double Row

$90.62

SKU: ATO-SRB-50

Good price double-row spherical roller bearing comes with an inner diameter of 50mm, an outer diameter of 110mm and a width of 40mm, P5 accuracy class. The material of double-row spherical roller bearing is good, the workmanship is meticulous, and the surface is smooth.

55mm Spherical Roller Bearing, Double Row

$100.15

SKU: ATO-SRB-55

Double-row spherical roller bearing for sale online. The roller bearing with an inner diameter of 55mm, an outer diameter of 120mm and a width of 43mm, P5 accuracy class. The high-speed spherical roller bearing suitable for applications that support high radial and oscillating axial loads.

60mm Spherical Roller Bearing, Double Row

$110.56

SKU: ATO-SRB-60

Low price spherical roller bearing is a double row roller bearing, with an inner diameter of 60mm, an outer diameter of 130mm and a width of 46mm. The axially symmetric races of double-row spherical roller bearing can support radial loads while maintaining high speeds and rotational accuracy.

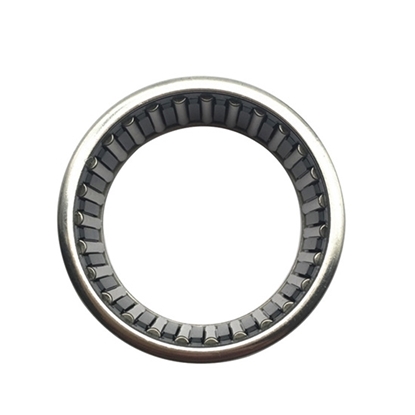

8mm Needle Roller Bearing, Drawn Cup Type

$35.23

SKU: ATO-NRB-8

Cheap price needle roller bearing with 8mm inner diameter for sale online. The drawn cup needle roller bearing with 14mm outer diameter and width of 10mm. HK 0810 roller bearing punched with the steel sheet.

Track Roller Bearing, Stud Type, Diameter 10mm

$38.97

SKU: ATO-TRB-10

Cheap price stud type track roller bearing for sale online. The track roller bearing with a 10mm inner diameter, 22mm outer diameter, width of 12mm, and P4 accuracy class. The cam follower bearing is thick-walled and designed to bear an impact load.

Track Roller Bearing, Stud Type, Diameter 12mm

$37.20

SKU: ATO-TRB-12

High-performance track roller bearing comes with an inner diameter of 12mm, outer diameter of 30mm, width is 14mm, and P4 accuracy class. The stud-type track roller bearing is made of high-grade bearing steel, more durable and longer working life.

Track Roller Bearing, Stud Type, Diameter 16mm

$36.91

SKU: ATO-TRB-16

Good price track roller bearing with an inner diameter of 16mm, stud type, outer diameter of 35mm, eccentric 0.3e. The stud-type track roller bearing is particularly suitable for occasions when the radial space is limited.

Track Roller Bearing, Stud Type, Diameter 30mm

$37.74

SKU: ATO-TRB-30

Lower cost stud type track roller bearing for sale online. The track roller bearing with a 30mm inner diameter, 80mm outer diameter, width of 35mm, and P4 accuracy class. The cam follower bearing has the advantages of being durable, good quality, male thread type, with a cylindrical roller, having higher load capacity.

Track Roller Bearing, Stud Type, Diameter 35mm

$42.53

SKU: ATO-TRB-35

Low-price track roller bearing for sale with diameter 35mm, stud type, the eccentric 0.35e. The cam follower bearing The track roller with solid sealed which can prevent the entry of foreign matters like dust, this would extend the life of the roller bearing.

10mm Needle Roller Bearing, Drawn Cup Type

$36.15

SKU: ATO-NRB-10

Cost effective drawn cup needle roller bearing features a 10mm inner diameter, 14mm outer diameter, width of 10mm, and P2 accuracy class. The needle bearing has the advantages of higher load capacity, it delivers the durability to handle the high rigidity of the shaft based on varied types of applications.

Roller bearings are used to replace sliding movement with low friction, rolling motion in rotary applications. The principal types of roller bearings are cylindrical, spherical, and tapered. In general, roller bearings offer higher load capacities than ball bearings of the same size.

ATO.com offers needle roller bearings, track roller bearings, tapered roller bearings, cylindrical roller bearings and spherical roller bearings for selection. The roller bearings are used for heavy-duty moderate-speed applications. Potential applications for spherical and cylindrical roller bearings include power generation, oil field, mining and aggregate processing, wind turbines, gear drives, rolling mills. Single-row tapered roller bearings are used in such applications as machine tool spindles, gear reduction units, automotive transaxles, transmissions, vehicle front wheels, differential and pinion configurations, conveyor rolls, machine tool spindles, and trailer wheels.

Types of Roller Bearings

There are five main types of roller bearings:

Cylindrical Roller Bearings have high radial-load capacity and moderate thrust loads. They contain rollers that are cylindrically-shaped, but crowned or end-relieved to reduce stress concentrations. Cylindrical roller bearings are similar in design to needle roller bearings but the dimensions of diameter and roller length are closer in magnitude.
Spherical Roller Bearings are self-aligning, double row, combination radial and thrust bearings. They use a spherical or crowned roller as the rolling element.
Tapered Roller Bearings consist of an inner ring (cone), an outer ring (cup), a cage and rollers, which are profiled to distribute the load evenly across the roller. During operation, tapered roller bearings create a line contact between the raceway and rolling element, distributing loads across a larger area.
Needle Roller Bearings are a type of cylindrical roller bearing where the length of the roller is much larger than then the diameter. Needle roller bearings are designed for radial load applications where a low profile is desired.
