AC contactors are widely used in electric drive systems. As a control device for frequently connecting or disconnecting load circuits, AC contactors are electrically operated for remote operation and automatic control systems. ATO offers you a range of 3-poel or 4-pole AC contactors, bypass, with rated working current from 9 to 95 amps for options. It has the characteristics of high quality and low price, long life, simple operation, small size and high safety. Come and choose the right product for you.

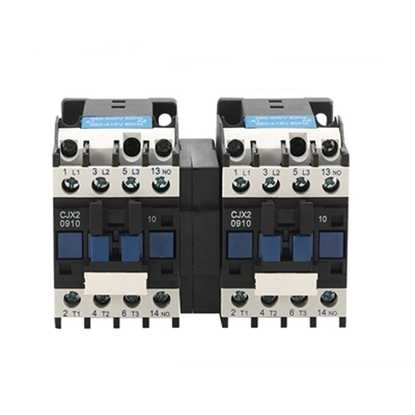

9A by pass AC contactor, 3 pole, available with 24V, 110V, 220V coil voltage. It mainly applies to the circuit of AC 50Hz/60Hz, and rated insulation voltage 660V. The rated current is 9A when used at AC-3 380V and 7A at AC-3 660V, for long distance breaking circuit and frequently starting or control the motor. Contactor can frequently start and control AC electromotor.
3 pole AC contactor has the advantage of small volume, light wight and low cost. With coil voltages of 24V/110V or 220V, rated current 12A/380V, 9A/660V, bypass. Rated insulation voltage is 390V, factory direct sale and free shipping.
The good performance by pass AC contactor provides 24V, 110V, 220V coil voltage, rated at 18A when used at AC-3 380V, and 12A when used at AC-3 660V. It has 3 pole, three main normally open contact and one normally open/closed auxiliary contact, and it can frequent start and control the AC motors.
The inexpensive by pass AC Contactor is suitable for using in the circuits AC 50Hz or 60Hz, rated voltage up to the 660V, high efficiency and reliability, make the contactor widely used. It has 3 pole. If used in AC-3 380V, the rated current is 32A. When used in AC-3 660V, rated current is 21A.

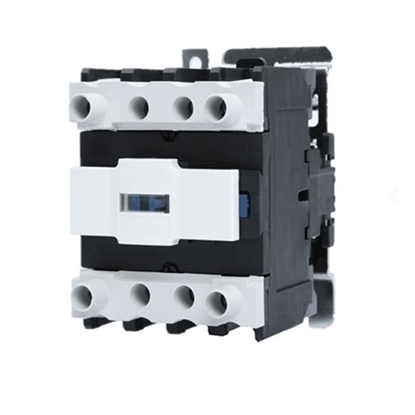

4 pole contactor is mainly used for AC 50Hz or 60Hz, bypass and it is avaliable with contact form 4P(4NO) or 4P(2NO+2NC). When used in AC-3 380V, the rated current is 40A, when used in AC-3 660V, rated current is 34A. Favorable price and high safety.
This lightweight and convenient by pass AC contactor 4P(4NO), 4P(2NO+2NC), it has a lot coil voltage to choose like 24V, 110V, 220V. And when the voltage is at 380V, the rated current is 50A; voltage is at 660V, rated current is 39A. It can be used for a long time and is also affordable.
There are 4P(4NO) and 4P(2NO+2NC) of 80 Amps by pass AC contactors with compact structure and complete specifications. It has 24V, 110V, 220V coil voltage for you to choose, direct sale from manufacturer.
4 pole 95A contactor has a wide coil volatge available for the selection 24V/110V/220V, bypass. When used in AC-3 380V, the rated current is 95A, when used in AC-3 660V, rated current is 49A, 4P(4NO) or 4P(2NO+2NC). Economical price and high quanlity.
