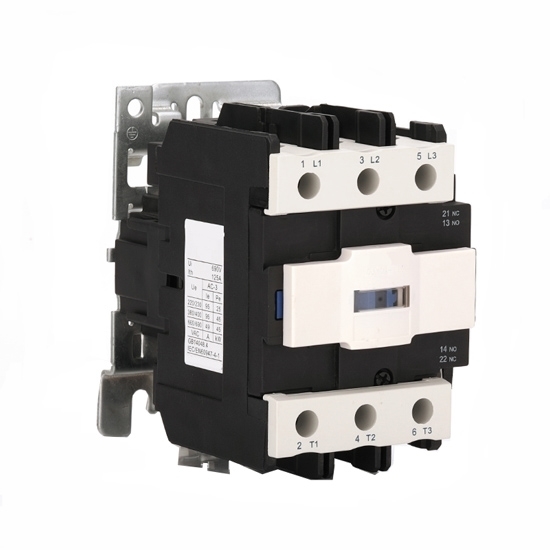

    32 Amps 3 Pole AC contactor 24V/110V/220V Coil

    The inexpensive by pass AC Contactor is suitable for using in the circuits AC 50Hz or 60Hz, rated voltage up to the 660V, high efficiency and reliability, make the contactor widely used. It has 3 pole. If used in AC-3 380V, the rated current is 32A. When used in AC-3 660V, rated current is 21A.
    SKU: ATO-ACCON-032
    Free Shipping Worldwide
    Delivery date: 6-12 days

    32 Amps AC Contactor Features

    This is a brand new upgrade by pass contactor, rated for 32 Amps, 3 pole, widely used in making, breaking, frequently starting & controlling the AC motor. There are 24 volt coil, 110 volt coil, 220 volt coil for you to choose.

    32 Amps AC Contactor Specifications

    Model CJX2-32
    Rated Operational Current (AC-3) 380V 32A
    660V 21A
    Conventional Heating Current 50A
    Rated Insulation Voltage 690V
    Power of Controllable 3-phase Squirrel-cage Motor (AC-3) 220V 7.5kW
    380V 15kW
    660V 18.5kW
    Operational Frequency (AC-3) Electric Life 600 times/h
    Mechanical Life 3600 times/h
    Service Life Electric Life (104 times) 80
    Mechanical Life (104 times) 800
    Matching Fusing Model RT16-50
    Average Power Consumption (20℃) @ 50Hz Pick-up 110VA
    Holding 11VA
    Contact Form (Optional) 3P+NO or 3P+NC
    Ambient Temperature -5℃~+40℃
    Altittude ≤2000m
    Class of Pollution Class 3
    Installation Category
    Weight 0.33kg

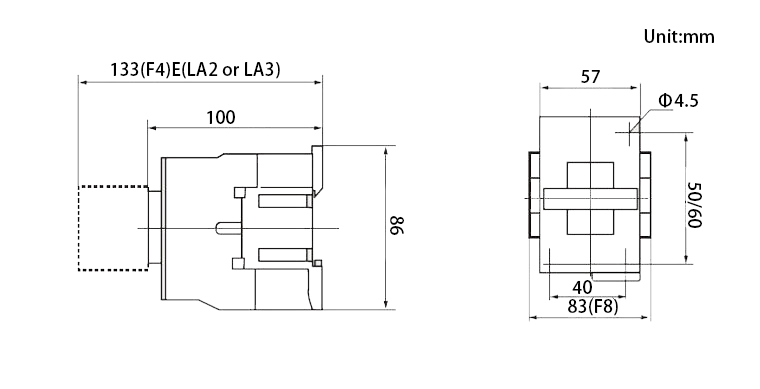

    32 Amps AC Contactor Dimensions

    32amps AC contactor mounting dimensions

    Tips: The main components of the AC contactor

    • Electromagnetic system, including attracting coil, moving iron core and static iron core.
    • The contact system comprises three main contacts and two normally open and two normally closed auxiliary contacts, which are connected with the moving iron cores.
    • Arc extinguishing device, the AC contactor with large capacity is generally equipped with arc extinguishing device to cut off the arc quickly and avoid burning the main contact.
    • Insulating housing and accessories, various springs, transmission mechanisms, short-circuit rings, binding posts, etc.
    • The contact of the AC contactor is made of silver-tungsten alloy and has good electrical conductivity and high temperature ablation resistance.
