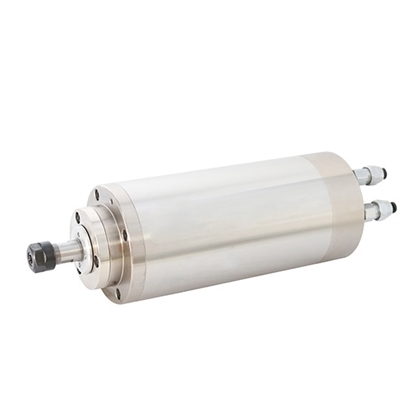

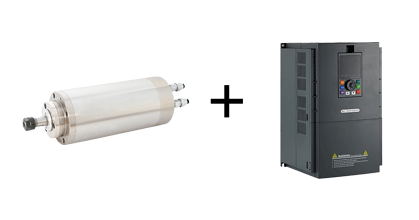

7.5 kW Water Cooled CNC Spindle Motor, 24000 rpm, ER32
Choosing the right water-cooled spindle is crucial for maximizing the performance and longevity of your CNC machine. The ideal water cooled spindle depends heavily on your material type, CNC machine size, and the precision required for your projects. To facilitate your purchase of the Water Cooling Spindle, ATO has compiled a guide to selecting a liquid-cooled spindle.
Benefits of Water Cooled Spindles
- Stable Temperature Control: Water cooling maintains a consistent spindle temperature, reducing wear and tear.
- Lower Noise & Vibration: Compared to air-cooled models, water-cooled spindles operate more quietly, creating a more comfortable work environment.
- Continuous Operation: Ideal for long production runs, as water cooling prevents overheating and thermal damage.
Key Considerations When Choosing a Water Cooled Spindle
- Material Type: Different materials require different torque and power settings. Wood and acrylic are easier to machine, while aluminum and hard metals need a higher torque water-cooled spindle motor to avoid stalling or poor cuts.
- Collet Size: Choose the right collet for your tool diameter. Common options include ER11, ER20, ER25, and ER32, all compatible with most water-cooled CNC spindle setups.
- Voltage & Phase: Always match the spindle voltage with your CNC machine—commonly 220V or 380V, 3-phase—for optimal performance and safety.
- Cooling Efficiency: A high-quality water-cooled CNC spindle depends on an efficient water circulation system. Check the pump flow rate and overall cooling capacity. Proper cooling prevents overheating, extends spindle life, and ensures consistent machining performance.
- Power and Torque: Hobby CNC machines typically need 1–2 kW water-cooled spindle motors, while industrial machines require 2–3 kW or more. Higher torque allows the spindle to handle tougher materials like aluminum and steel without stalling, ensuring smooth and precise cutting.
- RPM Range: For wood and plastics, a higher RPM (12,000–24,000) works best, while harder metals require lower RPM (3,000–12,000) paired with higher torque. Choosing the right RPM range for your water-cooled spindle ensures optimal cutting quality and tool longevity.
ATO Water Cooled CNC Spindle Motor Selection Table
| Model | Special Features | Precision & Runout | Recommended Application |
| ATO-SPINDLE-W800 | Lightweight, compact design | Standard | Compact, hobbyist projects, wood carving |
| ATO-SPINDLE-W1500 | Easy installation, hobbyist-friendly | Low runout | Small CNC routers, engraving, woodwork Small hobby/entry CNC |
| ATO-SPINDLE-W2200 | Requires VFD, versatile medium-duty | High precision, low runout | Medium CNC routers, high-precision engraving |
| ATO-SPINDLE-W3200 | Dual voltage (220/380V), durable | P4 class bearings, high precision | Industrial-grade medium CNC Medium CNC |
| ATO-SPINDLE-W3700 | Large φ100 mm diameter, optimized for routing | High precision, stable | Wood CNC, high stability |
| ATO-SPINDLE-W4500 | 4-bearing design, high torque, reliable for long runs | Precision bearings, low vibration | Industrial CNC, high torque machining |
| ATO-SPINDLE-W5500 | VFD compatible, high RPM, water-cooled | High-speed stable operation | High-speed water-cooled industrial spindle |
| ATO-SPINDLE-W6000 | VFD included, high-power performance | High precision, heavy-duty | Full-power industrial CNC setups |
| ATO-SPINDLE-W7500 | ER32 collet, VFD required, high-torque, industrial-grade | High stability, low runout | Large-scale industrial CNC |
Installation & Maintenance Tips for Water-Cooled Spindles
Before diving into maintenance, it's important to understand how proper installation affects performance and lifespan. A correctly installed water-cooled spindle motor not only improves precision but also reduces the risk of overheating and mechanical issues.
- Verify CNC Machine Compatibility
Before installing a water-cooled spindle, ensure that your CNC machine is compatible with the spindle size and mounting type. Proper alignment and fit are critical to prevent vibration, wear, and performance issues.
- Set Up the Water Circulation System Correctly
A water-cooled CNC spindle relies on an efficient cooling system to maintain optimal temperature during operation. Make sure the water circulation system is properly installed and tested to avoid overheating and ensure consistent machining performance.
- Regular Bearing and Water Quality Checks
Routine maintenance is essential for the longevity of your water-cooled spindle. Regularly inspect bearings for wear and verify that the water quality is clean and free of impurities to prevent corrosion and maintain cooling efficiency.
FAQ
Q: Can a 0.8 kW water-cooled spindle motor cut hardwood?
A: It can, but only for light cuts or thin pieces. High-density hardwood requires at least 1.5 – 2.2 KW.
Q: Why choose a water-cooled spindle?
A: Liquid-cooled spindle keeps torque output stable at high RPM and prevents overheating.
Q: Why is a water cooled spindle better than air cooled spindle?
A: Liquid-cooled spindle keeps temperature stable, reduces vibration, and ensures consistent torque for precision cutting.
Conclusion
Selecting the right water-cooled spindle ensures precision, reduces wear, and supports high-speed machining. Match your spindle by power, torque, collet size, voltage, and application for maximum efficiency. With the right liquid-cooled spindle, your CNC projects will achieve professional-quality results every time.
