    Worm Gearbox

    ATO worm gearboxes are commonly used for transmission mechanisms with high torque and low speed. After the motor and other higher speed power pass through the worm gearbox, the worm gearbox will slow down the speed and increase the output torque. The worm gearbox reducer is installed between the motor and the working set, and the power is conveyed by the motor and the speed is reduced by the worm gear speed reducer, so as to transfer the speed and torque to the working set from the output shaft.
    ATO worm gearboxes are very popular in the machinery industry in the market, and reduction gear ratios of 5:1, 7.5:1, 10:1, 15:1, 30:1... 60:1, 80:1, 100:1 have been launched. The center distance of ATO worm gearbox speed reducer is as small as 30mm, 40mm, 50mm, and as large as 130mm and 150mm. The torque of 2.6N.m-1037N.m can also meet your various needs. ATO has equipped you with asynchronous motors with powers ranging from 200W to 7500W, which can be purchased at the same time as the worm gearbox. It is convenient and also saves your cost. Contact us to buy now.

    View as Grid List
    Display per page
    Sort by

    30mm Worm Gearbox, Ratio 5~100, 2.6 N.m

    $386.12
    SKU: ATO-WGR30
    Good price worm gearbox for sale online. Reduction ratio from 5:1/ 7.5:1/ 10:1 to 100:1. 2.6 Nm rated output torque, 30mm center distance, 1400 rpm input speed, IP65. ATO RV worm gearbox reducer is standard equipped with 60W/ 90W/ 120W/ 180W asynchronous motor, or it can be purchased with output shaft, flange and torque arm.

    40mm Worm Gearbox, Ratio 5~100, 17 N.m

    $463.41
    SKU: ATO-WGR40
    The 40mm D.C. worm gearbox has a large output torque of 17 N.m and a reduction ratio of 5:1, 10:1... 80:1, 100:1. 2087 N.m maximum torque, 47 rpm rated speed, IP65. It can be used with asynchronous motors, AC motors, stepper motors, brushless motors, etc. The standard equipped 120W-370W asynchronous motors are also sold at a low price on ATO.

    50mm Worm Gearbox, Ratio 5~100, 27 N.m

    $496.35
    SKU: ATO-WGR50
    Competitive price worm gearbox has 50mm center distance, 27 Nm rated torque, 1400 rpm rated speed. The reduction ratio can be customized to 5:1/ 7.5:1/ 10:1/ 15:1/ 20:1, etc., the highest is up to 100:1. It is convenient and simple to connect with motors, especially when used with ATO 120W-750W asynchronous motor, the effect is better.

    63mm Worm Gearbox, Ratio 5~100, 55 N.m

    $569.12
    SKU: ATO-WGR63
    Economical price worm gearbox is designed with 5~100 reduction gear ratio and 55 N.m rated torque. 63mm center distance, maximum torque up to 4440 Nm, 750W rated power, 93.3 rpm rated speed. You can buy 250W, 750W, 1500W asynchronous motors together from ATO for more efficient use, the worm gearbox reducer and asynchronous motor are all available in stock.

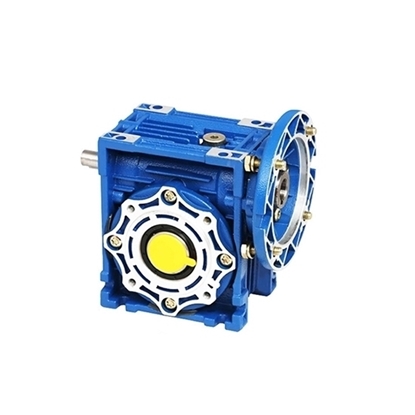

    75mm Worm Gearbox, Ratio 5~100, 128 N.m

    $685.24
    SKU: ATO-WGR75
    The output torque of ATO best-selling worm gearbox is relatively large, up to 128 Nm. Reduction gear ratio: 5:1, 7.5:1, 10:1, 15:1, 20:1, 25:1, 30:1, 40:1, etc. 75mm center distance, 5241 Nm maximum torque, 82% dynamic efficiency. It can be used with 370W-4000W asynchronous motors, AC motors, stepper motors, brushless motors, etc.

    90mm Worm Gearbox, Ratio 5~100, 182 N.m

    $745.25
    SKU: ATO-WGR90
    Buy 182 N.m NMRV worm gearbox reducer with cheap price. The center distance is 90mm, the maximum torque is 5799 N.m, and the rated power is 1500W. You can choose the reduction gear ratio according to your needs: 5:1, 7.5:1, 10:1, 15:1, 20:1, 25:1, 100:1, etc. And the one-way/ bidirectional output shaft, flange, torque arm are also customizable.

    130mm Worm Gearbox, Ratio 5~100, 334 N.m

    $1,435.92
    SKU: ATO-WGR130
    Lower cost worm gearbox has variety of reduction ratio to choose: 5:1, 7.5:1, 10:1, 50:1, 60:1, 80:1, 100:1 and so on. It’s new NMRV reducer with 130mm center distance, 3000W rated power and 334 N.m rated torque. 1100W-7500W asynchronous motor, flange and output shaft can be customized and used together.

    150mm Worm Gearbox, Ratio 5~100, 1037 N.m

    $1,698.73
    SKU: ATO-WGR150
    Buy 150mm center distance worm gearbox at affordable price. Reduction gear ratio ranges from 5:1 to 100:1, rated torque up to 1037 N.m. 28 rpm rated speed, 4 kW rated power. It is new NMRV worm gearbox speed reducer which can be equipped with 2.2kW, 5.5kW, 11kW, 15kW asynchronous motor.
