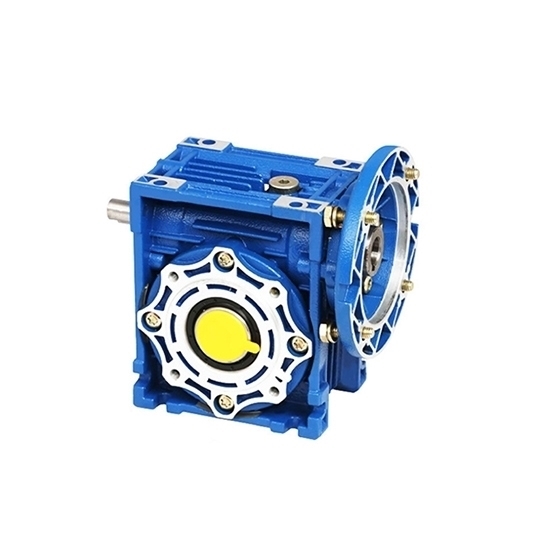

    63mm Worm Gearbox, Ratio 5~100, 55 N.m

    $569.12
    Economical price worm gearbox is designed with 5~100 reduction gear ratio and 55 N.m rated torque. 63mm center distance, maximum torque up to 4440 Nm, 750W rated power, 93.3 rpm rated speed. You can buy 250W, 750W, 1500W asynchronous motors together from ATO for more efficient use, the worm gearbox reducer and asynchronous motor are all available in stock.
    SKU: ATO-WGR63
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Buy CD 63mm RV worm gearbox reducer and you have variety of reduction ratio to choose: 5:1/ 7.5:1/ 10:1/ 15:1/ 20:1/ 25:1/ 30:1/ 40:1/ 50:1/ 60:1/ 80:1/ 100:1. 82% dynamic efficiency is one of its great strengths. Die-cast aluminum alloy body with long service life.

    Specification

    Model ATO-NMRV063
    Reduction ratio 5:1/ 7.5:1/ 10:1/ 15:1/ 20:1/ 25:1/ 30:1/ 40:1/ 50:1/ 60:1/ 80:1/ 100:1 (optional)
    Center distance 63mm
    Rated torque 55 N.m
    Maximum torque 4440 N.m
    Rated power 0.75 kW
    Rated speed 93.3 rpm
    Dynamic efficiency 82%
    Certification CE
    Color Blue
    Warranty 1 year
    Protection grade IP65
    Material

    Housing: Aluminum alloy

    Turbine: 20 Cr

    Worm: Tin bronze

    Dimention (Unit: mm)

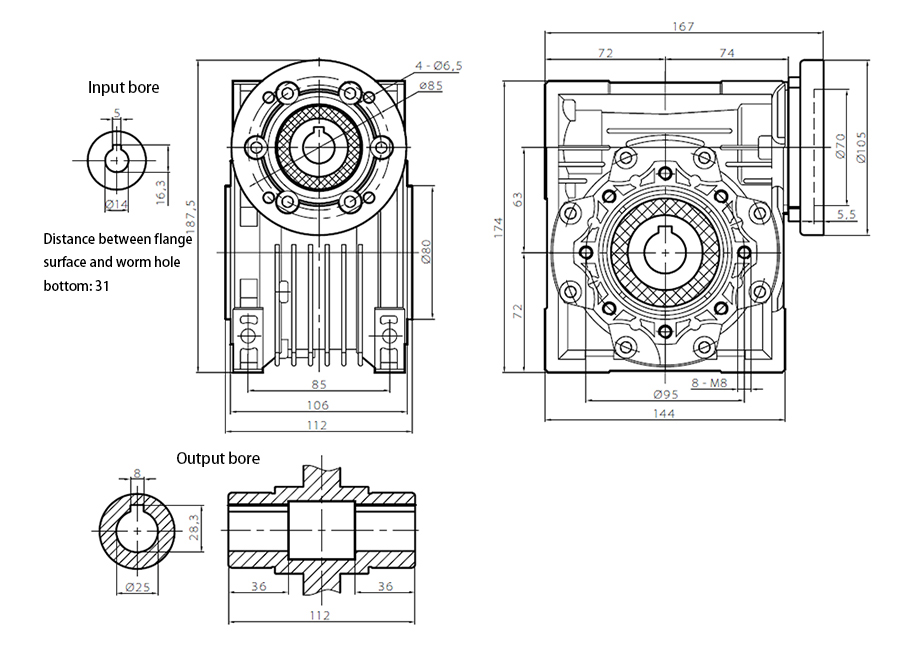

    ATO 63mm worm gear reducer outline dimensional drawing

    Customizable accessories

    ATO worm gear reducer customizable accessories: Asynchronous motor, flange, output shaft

    Tips: How to install the ATO 63mm worm gearbox?

    • The installation relationship between the 63mm worm gear motor and the working machine. In order to avoid the deflection of the main shaft of the working machine and the generation of additional force on the bearing of the reducer, the distance between the 63mm worm gearbox and the working machine should be as small as possible, 5-10mm, without affecting normal operation.
    • The connection between the shaft-mounted worm gear motor and the working machine. The 63mm worm gearbox speed reducer is directly sleeved on the main shaft of the working machine. When the reducer is running, the reaction torque acting on the reducer case body is balanced by the reaction torque bracket installed on the reducer case body or by other methods.
    • Installation of the anti-moment bracket. The counter-moment support should be installed on the side of the working machine facing the reducer to reduce the bending moment attached to the working machine shaft. The counter-torque bracket and the shaft sleeve of the fixed supporting connection end use rubber and other elastic bodies to prevent flexure and absorb the generated torque fluctuations.
