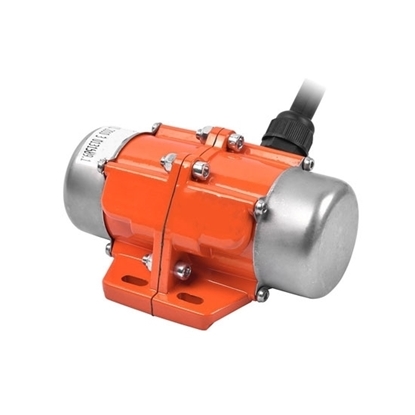

    30W AC Vibration Motor, 1 Phase, 2 Pole

    SKU: ATO-AVB-TO302S1
    Single phase industry asynchronous vibration motor, 30W, AC 110V/220V, 50/60Hz frequency, 3000/3600rpm rated speed, 2 pole, aluminum alloy material. Light weight, adjustable amplitude, low noise and long span lifetime.

    30W AC Vibration Motor, 3 Phase, 2 Pole

    Powerful ac vibration motor, 3 phase, 2 pole, 30 watt, rated speed of 2900rpm, small size, stable and reliable performance, vibrating motors are widely used in construction, chemical, electric power, food and other industries.

    40W AC Vibration Motor, 1 Phase, 2 Pole

    SKU: ATO-AVB-TO402S1
    110V vibrating motor, 40W, 50Hz 3000rpm rated speed, 60Hz 3600rpm rated speed. Single phase, 2 pole, with strong power and can withstand high speed for a long time.

    50W AC Vibration Motor, 1 Phase, 2 Pole

    SKU: ATO-AVB-TB502S2
    50W industial vibrating motor, 1 phase, 2 pole, 110VAC/220VAC, rated speed is 3000rpm/3600rpm, aluminum alloy material. Vibrator motor has a long service life, low noise and small size.

    60W AC Vibration Motor, 1 Phase, 2 Pole

    SKU: ATO-AVB-TB602S2
    1 phase 60W vibrator asynchronous motor, with small size and high power, 110VAC or 220VAC can be customized. 50Hz frequency is 3000rpm, 60Hz frequency is 3600rpm. IP 65 protection rank, waterproof, oil proof and oxidation resistant.

    70W AC Vibration Motor, 1 Phase, 2 Pole

    SKU: ATO-AVB-TB702S2
    High quality 70W 110v vibration motor for sale, 1 phase, 2 pole, 110V and 220V are optional, 50Hz or 60Hz, rated speed 3000rpm/3600rpm. Aluminum alloy material, IP 65, strong power and low noise, factory direct sales.

    80W AC Vibration Motor, 1 Phase, 2 Pole

    SKU: ATO-AVB-TB802S2
    Small asynchronous vibration motor, 80W, 1 phase, 2 pole, 50 Hz 3000rpm rated speed, 60Hz 3600rpm rated speed. High efficiency, strong power and smooth operation. Free shipping and factory direct sales.

    90W AC Vibration Motor, 3 Phase, 2 Pole

    SKU: ATO-AVM-MVE2003
    3 Phase vibration motor power 90W, force 2 kN, 0.35 amp rated current, 2 pole, beautiful appearance, sturdy and shockproof, fully enclosed structure, the vibration motor shell is made of high-strength aluminum alloy, which has strong corrosion resistance.

    100W AC Vibration Motor, 1 Phase, 2 Pole

    SKU: ATO-AVB-TB1002S2
    110V vibrating motor, 100W, 1 phase, 2 pole. AC voltage can select 100V or 220V, 50Hz/60Hz , variable vibration motor rated speed 3000rpm or 3600rpm. Anti deformation, anti oxidation and can withstand long term high speed operation.

    150W AC Vibration Motor, 3 Phase, 4 Pole

    SKU: ATO-AVM-MVE40015
    High efficiency AC vibration motor, three phase, 1450rpm, 150W, 4 pole, CE certification, 12 months warranty. Vibration motor can be used in food, powder sieving, cutting, metallurgy, coal and other fields.

    250W AC Vibration Motor, 3 Phase, 4 Pole

    SKU: ATO-AVM-MVE50015
    Sell 250W vibrating motor, brand new, 4 pole, three phase, AC220V, 50/60Hz, speed of 1420 rpm, waterproof and dustproof, IP65, the powerful vibration force enables the motor to be used in a variety of occasions such as screening, conveying, cleaning and separation.

    370W AC Vibration Motor, 3 Phase, 4 Pole

    SKU: ATO-AVM-MVE70015
    4 Pole industrial shaker motor, 3 phase, 1440 rpm, 220V AC voltafe, the vibration motor adopts high-quality bearings to ensure the smooth operation of the vibration motor, low noise, wear resistance and longer service life.

    400W AC Vibration Motor, 3 Phase, 4 Pole

    SKU: ATO-AVM-MVE80015
    Waterproof 400W vibration motor, 3 phase, 4 pole, rated current 1.36 Amp, freqency 50/60 Hz, speed of 1420 rpm, excellent sealing performance, good dustproof function, F-class insulation level.

    1.5 kW AC Vibration Motor, 3 Phase, 6 Pole

    SKU: ATO-AVM-MVE26001
    220V vibrating motor for sale, power 1.5kW, 6 pole, 3 phase, waterproof and dustproof, easy to adjust the excitation force. The motor shell material is made of high-strength aluminum alloy, which is corrosion-resistant.

    2 kW AC Vibration Motor, 3 Phase, 6 Pole

    SKU: ATO-AVM-MVE38001
    Low cost 2000W AC vibration motor, 6 pole, 3 phase, force 38 kN, speed of 970 rpm, insulation class F, powerful vibration motor are ideal choice for mining, metallurgy and construction industries.

    Choosing a vibration motor with matching excitation force and power can reduce mechanical noise. ATO sells low cost 110V/220V vibrating motor, 380V voltage can be customized, 1 phase or 3 phase, power 30W, 60W, 90W, 1000W and 2000W are optional, 2 pole, 4 pole, 6 pole for selection, the vibration motor casing adopts a fully enclosed type, which can often work in dusty environments, with superior waterproof performance and strong power, widely used in food, powder sieve, cutting, rugged and shock-resistant. Low noise, CE certification, high quality and long life.

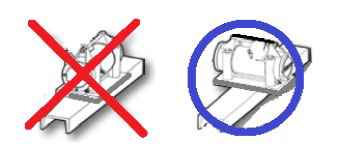

    AC Vibration motor mounting instructions

    Vibration motor mounting instructions

    • Determine vibrator placement on equipment.
    • Determine length of channel iron and style of mounting plate.
    • Attach vibrator to mounting plate. Check the mounting plate for warping.
    • Install safety chain or cable.
    • Take a voltage reading while AC vibration motor is running. Take an amperage reading while vibrator is running.

    AC vibration motor installation steps

    1. Use the integrally cast eyebolts to align the vibration motor.
    2. Use the specified number and size of bolts to attach the vibration motor, in accordance with the leaflet or motor datasheet.
    3. Put the vibration motor in position and loosely tighten the bolts.
    4. Use a torque wrench and tighten the bolts to the following torque, after 15 to 20 minutes after starting, switch off the motor and, using a torque wrench, retighten all of the motor attachment bolts. Repeat this procedure after 2 to 3 hours and after one day.

    ATO recommend checking the attachment bolts every 8 weeks. Attention: If inappropriate bolts and nuts are used, the vibration motor can become loose and cause serious damage. Please note that most of the malfunctions and failures are caused by incorrect or loose connections.
