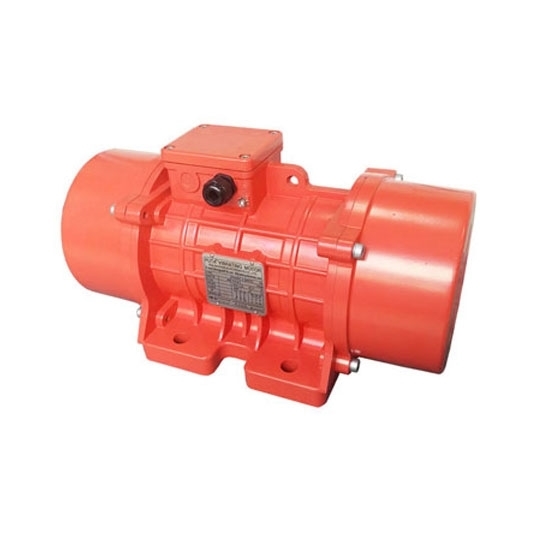

    400W 3 Phase AC Vibration Electric Motor, 220V/380V

    5 out of 5 based on 2 reviews | Write a review
    $1,098.67
    High quality 220V/380V AC three phase vibrating electric motor has 400W power, 4 pole, 807kg force, 1420 rpm, CE certification, IP65 waterproof function, and 50Hz frequency, especially suitable for industrial needs.
    *
    SKU: ATO-AVM-MVE80015
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Factory price vibration electric motor works at 3 phase AC 220V 50Hz/380V 50Hz, available with 400W power, 1.36 amp, 1420 rpm speed, 807kg force, 4 pole, IP65 waterproof and CE certificate. The mini industrial vibrating motor is widely used in mining, metallurgy, coal, electric power, construction and other industries.

    Specifications

    Model ATO-MVE80015
    Phase 3 Phase
    Pole 4 Pole
    Force 807 Kg, 8 kN
    Speed 1420 rpm
    Power 400W (0.4kW)
    Current 1.36A
    Voltage Class 3 Phase 220V 50Hz/380V 50Hz
    Weight 29.5 kg
    Frame No. 50
    Frequency 50 Hz/60 Hz
    Protection Rank IP65
    Insulation Class F
    Certificate CE
    Warranty 12 Months


    Dimension (Unit: mm)

    400W 3 phase vibration motor dimension

    A B C D E F G H I L M N Cable Gland
    120 170 391 208 210 22 17 94 180 205 93 170 M20*1.5


    Internal Structure

    3 Phase vibration motor structure

    Applications

    ATO 400W 220V/380V AC 3 phase micro vibration motor is widely used in mining, metallurgy, coal, electricity, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder screening, grain machinery, etc.

    Vibration motor applications

    Tips: "Pole" in the AC Vibrating Electric Motor

    In the AC vibrating electric motor, the number of poles refers to the pairs of north and south magnetic poles created in the motor's stator. The number of poles directly influences the motor’s speed and vibration frequency. AC vibrating electric motors with fewer poles (e.g., 2 poles) operate at higher speeds, while those with more poles (e.g., 4 or 6 poles) operate at slower speeds. The choice of pole configuration affects the motor's performance in applications where specific vibration frequencies are required, making it crucial to match the motor’s pole count with the desired operational characteristics.

    Video 1: How to use a vibration motor?

    Video 2: How to wire a VFD control using a latching push button switch to run the motor in the forward direction?

    Existing reviews of 400W 3 Phase AC Vibration Electric Motor, 220V/380V
    I have an important question
    We plan to install two motors per shaker, positioned closely together underneath. This means we require four motors in total for our two shakers.
    The model you previously recommended is ATO-AVM-MVE80015, which is a 400W motor with a speed of 1420 rpm, suitable for 3-phase 380V, 50 Hz power supply. Do you have any models that meet similar specifications in terms of force and power, but with a lower rpm, around 1000 rpm? I have heard that many shakers used in French fries production lines are equipped with motors that operate at around 950 or 1000 rpm.
    From: Velhem | Date: 09/07/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    We still recommend you to use the six-pole vibration motor.
    Although the four-pole motor and the six-pole motor have the same vibration force, the vibration amplitude of the material is different. The vibration of the six-pole material will be higher, and the vibration amplitude of the four-pole is smaller than that of the six-pole.
    French fries production lines like this generally require the material amplitude to be relatively high, so that the fries can be easily cooled and not stick together. If a four-pole motor is used, it may not jump that high, and it will not be so easy to cool, and it may stick together.
    How is the vibrating effect of your vibrating motor?
    I am an engineer in the mechanical testing lab of a manufacturer of automatic sliding doors. I am working on methods and techniques for vibration analysis to monitor the condition of the mechanics and structural components (mainly aluminum) in our sliding doors.
    The doors we tested were generally 48 inches by 84 inches by 3 inches (W x H x D), roughly 30 pounds, and constructed from an aluminum frame set by two horizontal fastening rods.
    I would like to know how is the vibrating effect of your vibrating motor?
    From: kelli | Date: 09/09/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    In that case below, if you would like to mount the motor directly on the door panel for testing, we would recommend 60W,12V, 7000rpm DC Brushless Vibration Motor, and 2 motors for 1 door.
    If you have a vibrating platform for testing, you would also need to let us know the dimensions and weight of this platform (including the weight of the material being vibrated) for recommending a right motor. It would be better if you could provide us with a workflow diagram for our reference.
