    Globe Valves

    View as Grid List
    Display per page
    Sort by

    1" Pneumatic Globe Valve

    $1,420.98
    SKU: ATO-PGV-DN25
    With a rated flow coefficient of 11KV, boasting a film effective area of 100 cm2, crafted from high-quality 304 stainless steel, 1 inch (DN25) pneumatic globe valve efficiently handles pressure differences, with Positive Action at 2.91 MPa and Opposite Reaction at 3.88 MPa, ensuring stability and control under varying conditions.

    3/4" Pneumatic Globe Valve

    $1,360.47
    SKU: ATO-PGV-DN20
    3/4 inch (DN20) pneumatic globe valve, with a rated flow coefficient (Kv) of 7, boasting a film effective area of 100 cm2, crafted from high-quality 304 stainless steel. The valve efficiently handles pressure differences, with Positive Action at 5.09 MPa and Opposite Reaction at 6.4 MPa, ensuring stability and control under varying conditions.

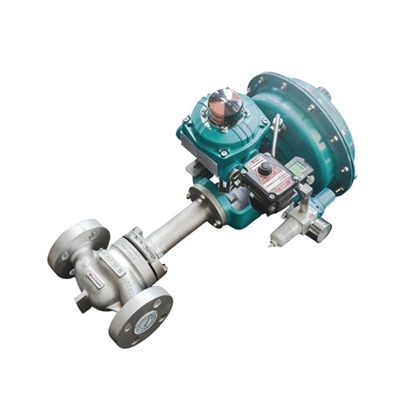

    1 1/2" Pneumatic Globe Valve

    $1,618.99
    SKU: ATO-PGV-DN40
    Operating at a Nominal Pressure of PN16 MPa, with a remarkable Rated Flow Coefficient of 30 KV, featuring a precise Rated Stroke of 12mm, 1 1/4" (DN40) pneumatic globe valve's film effective area of 200 cm2 enhances its ability to regulate flow effectively.

    1 1/4" Pneumatic Globe Valve

    $1,512.99
    SKU: ATO-PGV-32
    1 1/4" (DN32) pneumatic globe valve is equipped with an 8mm rated stroke and a film effective area of 100 cm2, constructed from high-quality 304 stainless steel. The allowable pressure difference is specified for both positive action (1.85 MPa) and opposite reaction (2.47 MPa). The flangeless connection method simplifies installation and maintenance.

    1/4" Stainless Steel Globe Valve

    $101.83
    SKU: ATO-GV-14SSGV
    Good price and high quality 1/4 inch stainless steel globe valve for sale online. Simple and compact appearance of stainless valve. Stainless globe valve with corrosion resistance and high temperature resistance. Working temperature of this type globe valve between -20 ℃ and 260 ℃. Globe valve widely used in machinery, metallurgy, and petrochemical industry.

    2" Pneumatic Globe Valve

    $1,734.92
    SKU: ATO-PGV-DN50
    2 inch pneumatic globe valve, globe control valve with pneumatic actuator for sale, widely used in industrial fluid control. 304 stainless steel valve body material, rated stroke 12mm, nominal pressure PN16. Adopt pneumatic actuator, reliable operation, suitable for automation system.

    2-1/2" Pneumatic Globe Valve

    $2,698.73
    SKU: ATO-PGV-DN65
    2-1/2"pneumatic globe valve is very popular! Suitable for gas and liquid, temperature ≤250℃. Connection mode is flange, equipped with pneumatic thin film actuator, DC24V solenoid valve, limit switch and air filtering pressure reducing valve. Efficient control, stable and reliable, widely used in industrial fields.

    3/8" Stainless Steel Globe Valve

    $107.46
    SKU: ATO-GV-38SSGV
    Cheap price stainless steel globe valve with 3/8 inch for sale online. 304 stainless steel has the characteristics of corrosion resistance and high temperature resistance. Simple and compact appearance of stainless valve. Working temperature of this type globe valve between -20 ℃ and 260 ℃. Globe control valve can be used in machinery and petrochemical industry.

    1/2" Stainless Steel Globe Valve

    $108.95
    SKU: ATO-GV-12SSGV
    1/2 inch stainless steel globe valve with affordable price for sale. Globe stop valve with NPT thread connection, easy to install pressure gauge and pipe. Working temperature of this type globe valve between -20 ℃ and 260 ℃. Globe control valve is suitable for water and oil medium. 304 stainless steel has the characteristics of corrosion resistance.

    3 1/3" Pneumatic Globe Valve

    $3,798.73
    SKU: ATO-PGV-DN100
    3 1/3" pneumatic globe valve is a single-seated shut-off valve, standard design, the valve body is made of 304 stainless steel. Suitable for gas and liquid media, working temperature -17 ~ 250 ℃. Nominal diameter DN100mm, rated flow coefficient 190KV, flow characteristics for fast-opening characteristics.

    3" Pneumatic Globe Valve

    $3,131.47
    SKU: ATO-PGV-DN80
    Hot sale 3 inch pneumatic globe valve! Suitable for gases and liquids, flange connection, with pneumatic membrane actuator, DC24V solenoid valve, limit switch and air filtering pressure reducing valve. The pneumatic valve can accept the signal from the regulating instrument to realize the automatic control of parameters such as pressure, flow, temperature or liquid level. High performance ensures reliable operation of industrial processes.

    3/4" Stainless Steel Globe Valve

    $112.19
    SKU: ATO-GV-34SSGV
    Cost-effective stainless steel globe valve with 3/4 inch for sale online. Water, oil and steam are the applicable medium for the high pressure globe valve. Straight handle makes the globe valve compact. Globe stop valve with NPT thread connection, easy to install pressure gauge and pipe.

    1" Stainless Steel Globe Valve

    $161.86
    SKU: ATO-GV-1SSGV
    1 inch globe valve with stainless steel and good price for sale online. 304 stainless steel has the characteristics of corrosion resistance and high temperature resistance. High pressure globe valve with NPT thread connection, easy to install pressure gauge and pipe. Globe control valve can be used in machinery and petrochemical industry.

    3/8" Y Pattern Globe Valve

    $568.92
    SKU: ATO-GV-38YGV
    Y pattern globe valve with reasonable price for sale. 3/8 inch globe valve with 304 stainless steel valve body. Working temperature of Y type globe valve between 54 ℃ and 648 ℃. Globe control valve widely used in machinery, metallurgy and petrochemical industry.

    1/2" Y Pattern Globe Valve

    $549.73
    SKU: ATO-GV-12YGV
    Affordable price 1/2 inch Y pattern globe valve for sale online. This type globe valve with thrust bearing and low torque. Non-rotating stem with hardened and polished to reduce operating torque of Y globe valve. Globe valve often used in metallurgy, machinery and petrochemical industry.

    1/2" Flanged Globe Valve

    $175.23
    SKU: ATO-GV-15FGV
    1/2 inch flanged globe valve with carbon steel for sale online. Thickened body makes the globe valve stable. Working temperature of globe valve flange type between -29 ℃ and 425 ℃. Mechanical seal and anti-rust globe valve can be used in petroleum, chemical and power system.

    3/4" Flanged Globe Valve

    $206.03
    SKU: ATO-GV-20FGV
    Good price globe valve flange type with 3/4 inch for sale. Yoke integral with bonnet, available with gear operator. Flanged globe valve is suitable for water, oil and steam medium. Working temperature of globe control valve between -29 ℃ and 425 ℃.

    1" Flanged Globe Valve

    $215.25
    SKU: ATO-GV-25FGV
    High quality and reasonable price flanged globe valve with 1 inch port size. Thickened body makes the globe valve stable. The flow direction of 1 inch globe stop valve is one-way flow. Flange globe valve widely used in electric power industry, chemical industry and construction industry.

    1-1/4" Flanged Globe Valve

    $245.92
    SKU: ATO-GV-32FGV
    Affordable price flanged globe valve with 1-1/4 inch for sale online. The pressure environment of the globe check valve is between PN16 and PN100. Working temperature of globe control valve between -29 ℃ and 425 ℃.

    1-1/2" Flanged Globe Valve

    $309.85
    SKU: ATO-GV-40FGV
    Flanged globe valve with carbon steel and 1-1/2 inch port size for sale. The drive mode of the globe valve is manual driven. Flanged globe valve is suitable for oil, water and steam medium. Globe check valve widely used in electric power industry, chemical industry and construction industry.

    The globe valve is a forced sealed valve, so when the valve is closed, pressure must be applied to the disc to force the sealing surface not to leak. Globe check valve is one of the most widely used valves.

    Due to the small friction between the sealing surface in the process of opening and closing, it is more durable, the opening height is not large, easy to manufacture, convenient maintenance, not only suitable for middle and low pressure, but also suitable for high pressure.

    ATO offers a wide range of globe valves including stainless steel globe valve, Y pattern globe valve and flanged globe valve. Globe control valve widely used in machinery, metallurgy, and petrochemical industry.
