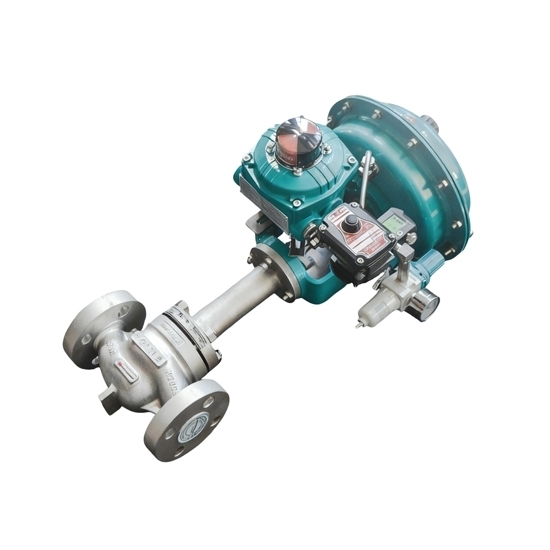

1" DN25 Pneumatic Diaphragm Globe Shut-off Valve

Note: This globe valve cannot be used for drinking water.

Nominal pressure of PN16 MPa, designed to handle both gas and liquid mediums, 1" pneumatic globe valve provide flexibility across a range of industrial processes.

Feature

• The valve body is designed according to the principle of fluid dynamics into an equal cross-section low flow resistance flow path, the rated flow coefficient increases by 30%.
• Compact structure, light weight, sensitive action, fluid channel is S streamline, small pressure drop loss, large capacity, easy disassembly and installation.
• Top-guided construction with multi-spring membrane actuator.
• By using a thin-film multi-spring actuator connected to the adjusting mechanism by three columns, the overall height can be reduced by about 30 per cent and the weight by about 30 per cent. The overall height can be reduced by about 30 per cent and the weight by about 30 per cent.

Specification

Dimension (Unit: mm)

Application

Tips: Are there any safety features incorporated into the valve design?

The 1" Pneumatic Globe Valve is engineered with several safety features to ensure reliable and secure operation in various industrial applications. These safety measures are integrated into the design to mitigate potential risks and enhance the overall performance of the valve. Here are some key safety features:

• Pressure Relief Mechanism: The valve is equipped with a pressure relief mechanism that automatically activates if the internal pressure exceeds the specified limits. This feature prevents overpressurization, safeguarding both the valve and the connected system.
• Emergency Shutdown Capability: In critical situations, the valve has an emergency shutdown function. This allows for rapid closure of the valve to isolate the flow and prevent further damage or potential hazards.
• Corrosion-Resistant Materials: The valve is constructed from materials that are resistant to corrosion and wear, ensuring the longevity of the valve and minimizing the risk of failure due to material degradation.
• Sealing Integrity: The valve incorporates robust sealing mechanisms to prevent leakage. This not only ensures efficient operation but also minimizes the risk of environmental contamination or harm to personnel.
