    Linear Servo Motors

    View as Grid List
    Display per page
    Sort by

    400W Linear Servo Motor, 1.27Nm, 1.02 kN, 800mm

    $1,336.51
    SKU: ATO-SERVO-L400
    Cheap price linear servo actuator online for sale, with rated power 400 watt, rated voltage 220V, two connection types for selection, max. stroke 800mm, reduction ration 1:1, rated torque 1.27 Nm, rated thrust 0.68 kN, max. thrust 1.02 kN. Linear servo motor is widely used in the paper industry, chemical industry, automobile industry, electronics industry, mechanical automation industry, welding industry, etc.

    1hp (750W) Linear Servo Motor, 2.39Nm, 1.91 kN, 800mm

    $1,378.89
    SKU: ATO-SERVO-L750
    Economical price linear servo actuator with 750W rated power, reduction ratio 1:1, rated torque 2.39 Nm, rated thrust 1.28 kN, max. thrust 1.91 kN, max. stroke 800mm, 16mm diameter. Linear servo motor has the advantages of low noise, energy saving, clean, high rigidity, impact resistance, long service life.

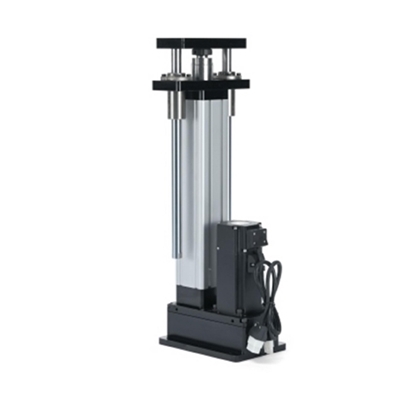

    1kW Linear Servo Motor, 3.18Nm, 34.8 kN, 1500mm

    $3,022.86
    SKU: ATO-SERVO-L1000
    Good price linear servo motor with rated voltage 220V, 1000W rated power, reduction ratio 4, rated torque 3.18 Nm, rated thrust 23.2 kN, max. thrust 34.8 kN, max. stroke 1500mm, diameter 25mm. Linear servo actuator is widely used in the paper industry, chemical industry, automobile industry, electronics industry, mechanical automation industry, welding industry, etc.

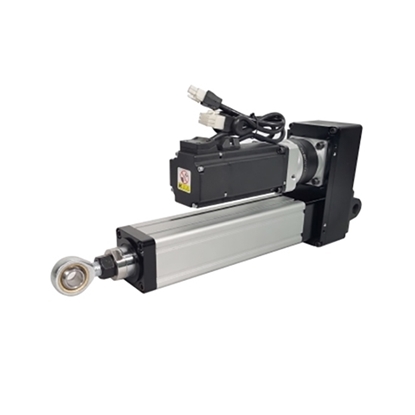

    2hp (1.5kW) Linear Servo Motor, 7.16Nm, 24.3kN, 1500mm

    $3,125.08
    SKU: ATO-SERVO-L1500
    Cost-effective linear cylinder with rated voltage 220V, 2hp linear servo motor with reduction ratio 1:1, rated torque 7.16 Nm, rated thrust 16.2 kN, maximum thrust up to 24.3 kN,  maximum stroke 1500mm. The linear servo actuator has the advantages of low noise, energy saving and long service life.

    1500W Linear Servo Motor, 7.16Nm, 31.8kN, 1500mm

    $3,125.08
    SKU: ATO-SERVO-L1500w
    1.5kW linear servo actuator with rated voltage 220V, max. stroke 1500mm , rated torque 7.16 Nm, rated thrust 21.2 kN, maximum thrust up to 31.8 kN, two connections for selection. High speed linear servo motor is widely used in the paper industry, chemical industry, automobile industry, electronics industry, mechanical automation industry, welding industry, etc.

    6hp (4.5kW) Linear Servo Motor, 29Nm, 34kN, 1800mm

    $9,178.73
    SKU: ATO-SERVO-L4500
    Lower cost linear servo actuator with rated power 4500 watt, 220 volt rated voltage, max. stroke 1800mm, rated torque 29 Nm, rated thrust 22.96 kN, max. thrust can up to 34 kN, in-line/ reentrant two connection for needs. The linear sevo motor offers advantages of stable performance, low failure rate, and high reliability.

    5.5kW Linear Servo Motor, 35Nm, 56kN, 1800mm

    $9,321.59
    SKU: ATO-SERVO-L5500
    5500 watt linear cylinder offers two connections to choose, with rated voltage 220 volt, rated torque 35 Nm, rated thrust 37.42 kN, maximum thrust up to 56 kN, lead 10mm, reduction ratio 2:1, maximum stroke 1800mm. The linear servo actuator has the advantages of low noise, energy saving and long service life.

    The linear servo motor is a modular product that integrates the servo motor and the lead screw. ATO.com online store offers a variety of linear servo actuators for electronics industry, mechanical automation industry, welding industry. Linear servo motor has optional rated power from 400W to 5.5kW, wide range rated torque from 1.27 Nm to 35 Nm, maximun thrust from 1.27 kN to 56 kN, maximum stroke 800mm, 1500mm, 1800mm can be chosen. Due to the precise position control of linear servo, repeatable positioning accuracy can reach 0.01mm, adding external displacement sensor can reach 0.005mm. Linear cylinder has the advantages of low noise, energy saving, high rigidity, impact resistance, long service life. Buy a good quality linear servo actuator right now!

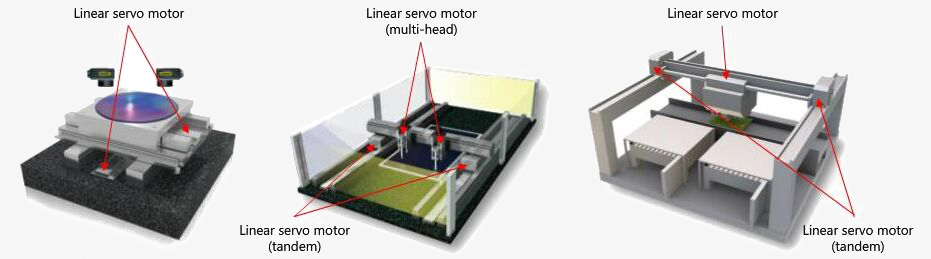

    Applications of Linear Servo Motor

    A system with linear servo motors does not require transmission mechanism such as a ball screw, enabling high-speed and high-accuracy controls, and easy maintenance. Therefore, linear servo motors are used in various systems as below.

    • Alignment sytem: Systems that requires high-accuracy positioning.
    • Automatic assembly system: Large system (tandem); System that needs to shorten tact time (multi-head).
    • Mounter: System that requires high-speed positioning.

    Linear servo motor applications

    Features of Linear Servo Motor

    A Linear servo motor can be connected directly with a device and performs linear movements without a transmission mechanism such as a ball screw. Therefore, using the linear servo motor enables high-speed and high-accuracy positioning operations.

    1. Enables simple and compact mechanism, and increases machine rigidity.
    2. Smooth, quiet operations.
    3. High-speed driving part improves productivity.
