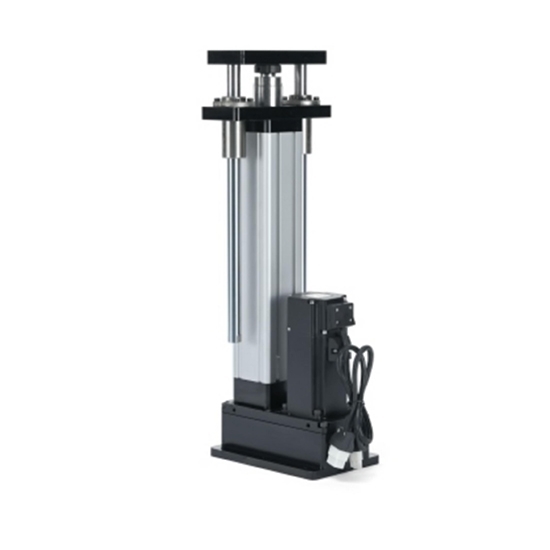

    5.5kW Linear Servo Motor, 35Nm, 56kN, 1800mm

    5500 watt linear cylinder offers two connections to choose, with rated voltage 220 volt, rated torque 35 Nm, rated thrust 37.42 kN, maximum thrust up to 56 kN, lead 10mm, reduction ratio 2:1, maximum stroke 1800mm. The linear servo actuator has the advantages of low noise, energy saving and long service life.
    SKU: ATO-SERVO-L5500
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Lower price linear servo motor with rated power 5.5kW, rated linear speed 25mm/ s, which can up to 250mm/ s, diameter 40mm.


    Model ATO-LSM-EDA110-5500W
    Rated power 5.5KW
    Rated voltage 220V
    Structure type In-line/ Reentrant
    Lead 10mm
    Reduction ratio 2:1
    Rated speed 1500 rpm
    Max. speed 3000 rpm
    Rated torque 35 Nm
    Rated thrust 37.42 kN
    Rated linear speed 25mm/s
    Max. thrust 56 kN
    Max. linear speed 250mm/s
    Max. stroke 1800mm
    Diameter 40mm
    Inductive switch Magnetic induction, PNP, 2NO (Please contact us for other switches)
    Motor brand Japan
    Pressure sensor

    Not include (50kg/100kg/200kg/300kg/400kg/500kg/600kg/800kg/900kg/1T/2T can be customized, please contact us if necessary)

    Weight 320kg
    Certificate CE
    Warranty 12 months

    Dimension (unit=mm)


    Dimension of in line type linear servo motor


    Dimension of reentrant type linear servo motor


    5500W Linear Servo Motor Details

    Tips: Deceleration Mechanism of Linear Servo Motor.

    The deceleration mechanism of the actuator cylinde can choose the synchronous belt, the planetary gear reducer and the harmonic gear reducer, etc.
    The synchronous belt drive is composed of an endless belt with equidistant teeth on the inner peripheral surface and wheels with corresponding anastomosis. It combines the advantages of belt drive, chain drive and gear drive. Synchronous belt transmission is mostly used on fold-back electric cylinders. Synchronous belt transmission has the advantages of accurate transmission, constant transmission ratio and stable transmission. Part of the electric cylinder adopts a planetary gear reduction mechanism in the selection of the reduction gear. Planetary gear transmission is a gear transmission that makes the axis of one or more planetary wheels rotate around the fixed axis of the center wheel. Planetary gear transmission has the advantages of small size, light weight and high carrying capacity. Harmonic gear reducer is also one of the commonly used reduction devices for electric cylinders. The so-called harmonic drive is a general term for a device that realizes movement and power transmission by elastic deformation of the middle flexible member. Harmonic gear drive has the advantages of simple structure, small size, large carrying capacity, large transmission ratio range, high motion accuracy, small and uniform tooth surface wear, etc.
