Hydraulic Electric Pump

View as Grid List

Display per page

Sort by

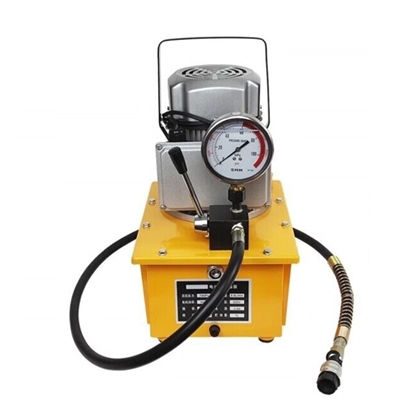

750W Hydraulic Electric Pump, 10000 psi

$678.06

SKU: ATO-DYB-63A

10000 psi electric hydraulic pump with 750W power, high pressure flow rate 0.9 L/min, speed 1400 rpm, single acting, it has a precise pressure gauge with shock-resistant, 7 L oil storage capacity, hydraulic pump oil tank using No. 15 hydraulic oil.

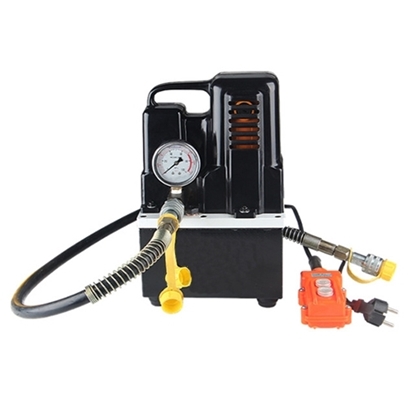

1.2 kW Hydraulic Electric Pump, 10000 psi

$568.85

SKU: ATO-HEP-QQ700

220 Volt hydraulic electric pump for dump truck, power supply 1200 watt, high pressure flow rate 1.7 L/min, low pressure flow rate 5 L/min, high pressure 10000 psi, maximum tank capacity is 2 L, hydraulic electric pump has the advantages of small size, light weight and simple structure.

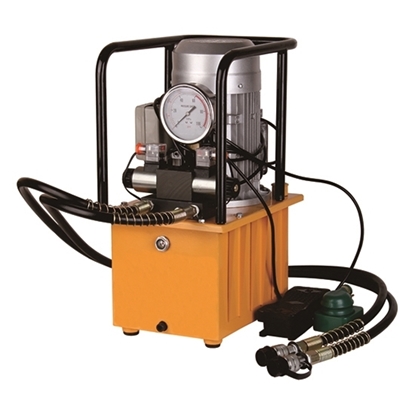

1.5 kW Hydraulic Electric Pump, Double Acting

$1,118.46

SKU: ATO-HEP-D2

Double acting hydraulic electric pump for dump trailer, built-in motor 1.5 kW, 2-stage pressure, high pressure 10000 psi, oil storage capacity 10 L. Hydraulic electric pumps are applicable to truck tailgate lifts, dump trailers, lift trucks, snow plows, aerial work platforms, material handling, wheelchair lifts, etc.

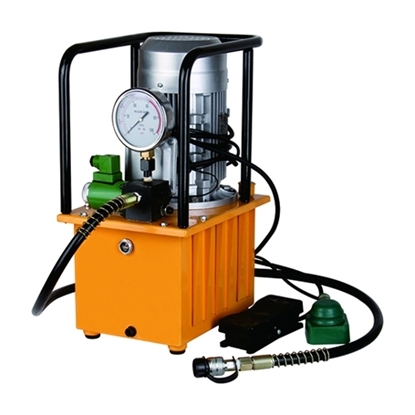

1.5 kW Hydraulic Electric Pump, Single Acting

$1,028.85

SKU: ATO-HEP-D1

Single acting Hydraulic electric pump equipped with a efficient motor, high pressure 10000 psi, low pressure 1450 psi or 1015 psi, power supply 1500W, voltage 110V or 380V, oil storage capacity 10 L

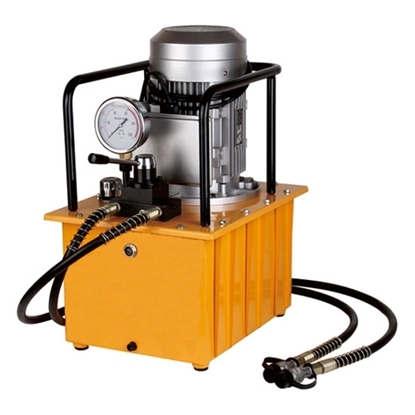

3 kW Hydraulic Electric Pump, 10000 psi

$1,986.87

SKU: ATO-HEP-S2

110V hydraulic electric pump at affordable price, power supply 3 kW, 10000 psi high pressure, rated voltage 110 volt or 380 volt is optional, high-quality high-pressure tubing and long service life.

Hydraulic Electric Pump Selection Table

Parameter	ATO-DYB-63A	ATO-HEP-D1	ATO-HEP-D2
Rated Voltage	110 V / 380 V	110 V / 380 V	110 V / 380 V
Motor Power	750 W	1.5 kW	1.5 kW
Rated Current	~2.3 A (220 V, 750 W estimated)	~13.6 A (110 V, 1.5 kW estimated)	~13.6 A (110 V, 1.5 kW estimated)
High Pressure	10,000 psi / 70 MPa	10,000 psi / 70 MPa	10,000 psi / 70 MPa
Low Pressure	1,015 psi / 7 MPa	1,450 psi / 10 MPa	1,450 psi / 10 MPa
High Flow Rate	0.9 L/min	1.7 L/min	1.7 L/min
Low Flow Rate	N/A	7.9 L/min	7.9 L/min
Oil Storage	7 L	10 L	10 L
Speed	1,400 rpm	1,400 rpm	1,400 rpm
Motor Type	Asynchronous Motor	Electric Motor	Electric Motor
Action Type	Single Acting	Single Acting	Double Acting
Applications	Hydraulic jacks, single-acting tools	Punching, bending, crimping tools	Dump trailers, lift platforms, snow plows
Compliance	CE	CE	CE
Price	$678.06	$1,028.85	$1,118.46
