750W Hydraulic Electric Pump, 10000 psi

110V hydraulic pump for sale, equipped with 750 watt asynchronous motor, oil storage capacity 7 L, 10000 psi high pressure, aluminum housing, good resistance to oxidation.

Specification

Model: ATO-DYB-63A

High Pressure: 10,000 psi (70 Mpa)

High Pressure Flow Rate: 0.9 L/min

Motor Power: 750W

Voltage: 110V / 380V

Frequency: 50Hz / 60Hz

Speed: 1400 rpm

Oil Storage Capacity: 7 L

Oil Type: ≤15# hydraulic oil

Weight: 21.4 kg

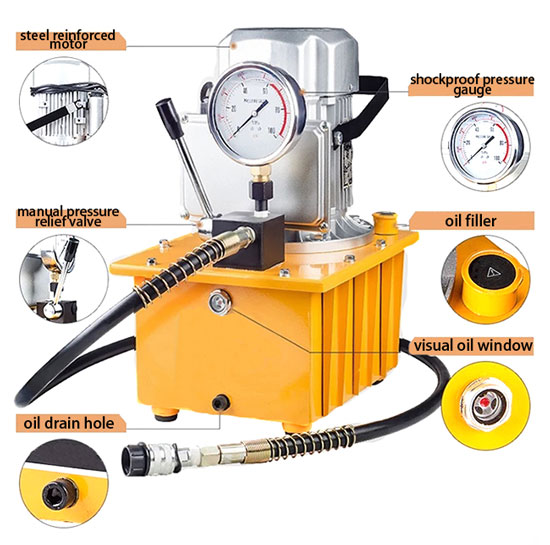

750W Hydraulic Electric Pump Structure

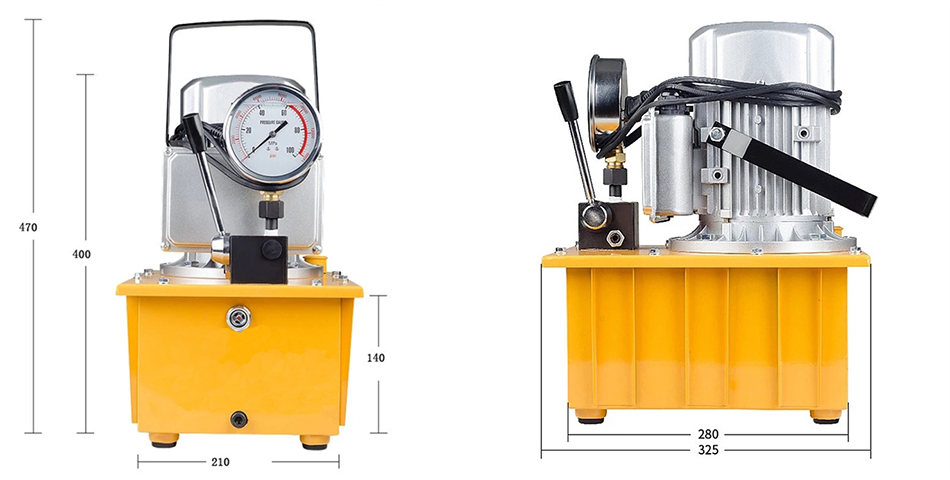

Hydraulic Electric Pump Dimension Drawing (Unit: mm)

Tips: What Causes Oil Leaks in Hydraulic Pumping Stations?

• The spindle oil seal is damaged or the shaft is defective or scratched.
• The internal leakage is too large, causing the pressure at the oil seal to increase, and the oil seal is damaged or flushed out.
• The oil drain pipe is too thin and too long, causing oil leakage at the seal.
• The external oil pipe of the pump is loose, the pipe joint is damaged, the gasket is aged or cracked.
• The bolt of the variable adjustment mechanism is loose and the seal is damaged.
• Cast iron pump casing has blisters or poor welding.
