IGBT module air cooling plating rectifier with 100A continuously adjustable current, 50Hz/60Hz three phase 380V/ 480V AC input voltage, 12V/ 24V/ 36V DC output voltage for optional (input/ output voltages can be customized), with the remote control box controls the operating voltage and current, high efficiency and high control precision.
High frequency 200A adjustable plating IGBT rectifer matched with remote controller, converts 50Hz/60Hz three phase 380V/ 480V AC to 12V/ 36V DC or other desired voltages, features with complete protection functions, manual or automatic reverse control, 24 hours operation at full load, suitable for plating small sized no-ferrous metal and alloy work pieces.
300 amps IGBT module rectifier is a solid state three phase 50Hz/60Hz 380V/ 480V AC to 24V/ 36V DC power conversion device with competitive price, rectifier remote controller controls the current and voltage, providing forced air cooled solution to system thermal problems, higher power factor and lower cost of operation to meet all of your plating need.
Adjustable 0-500A electroplating rectifier switch power supply adopts PWM control circuit and high reliability IGBT module, input voltage of three phase 380V/ 480V AC (220-1000V can be customized), output voltage of 20V/ 24V DC (8-500V can be customized), forced air-cooling type, with complete protection functions.
1000A three phase IGBT rectifier for hard chrome electroplating process, air cooling mode, 380V/ 400V/ 480V AC input, 0-12V/ 0-18V/ 0-24V DC output, current and output voltage can be adjusted. It has many protection functions against phase loss, over-voltage, under-voltage, short circuit, over current and overheating.
Air cooling 0-1500A adjustable plating rectifer power supply used in 3-phase 50Hz/60Hz 400V/ 480V AC input and 12V/ 24V DC output, other desired voltages are customized, features with complete protection functions, 24 hours operation at full load, energy saving more than 20% because of higher conversion efficiency, especially low DC output voltage.
3-phase 380V AC to 18V DC hard chrome plating IGBT rectifier machine has 0-2000A adjustable high output current, output voltage can be continuously adjusted also. Forced air cooling by the big axial fans, works with a remote controller box, higher power factor and lower cost of operation to meet all of your plating need.
Air cooling 3000 amps high enegy saving plating with 50Hz/60Hz 3-phase 400V AC input and 12V/ 18V low voltage output. It adopts IGBT inverter soft switch rectifier technology, mainly used as various metal and non-metal electroplating rectifier power supply. The matched remote controller with timing function offers more secure and higher control precision.
Three phase air cooled hard chrome plating rectifier matched with remote controller, features 400V/ 480V AC iutput, 0-4000A adjustable current and 0-24V continuously adjustable ouput (8-500V output voltage are customized). It has high enetration ability, strong adhesive force, and can effectively enhance the brightness of the plated surface.
0-5000 amps variable air-cooling IGBT rectifier for electroplating process, with remote control box and timer function, high frequency pulse current output, optional for 0-12V/ 0-18V/ 0-24V continuously adjustable output voltage. Reliable quality and cheap price rectifier will definitely satisfy your requirements.
6000A chrome plating rectifier switching power supply for sales, converts three phase 50/60Hz 380V/ 480V AC input voltage to 12V/ 24V DC output voltage, air-cooling mode, high coversion efficiency to 92%. Combined with a remote controller box, not only easy to operate but also to ensure the safety of operating personnel.

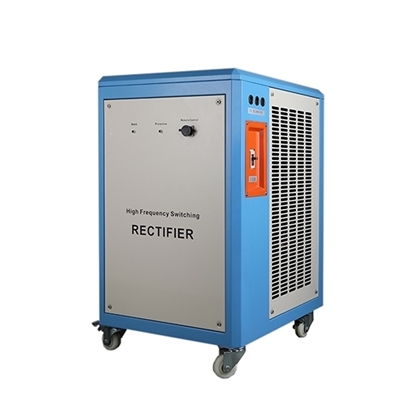

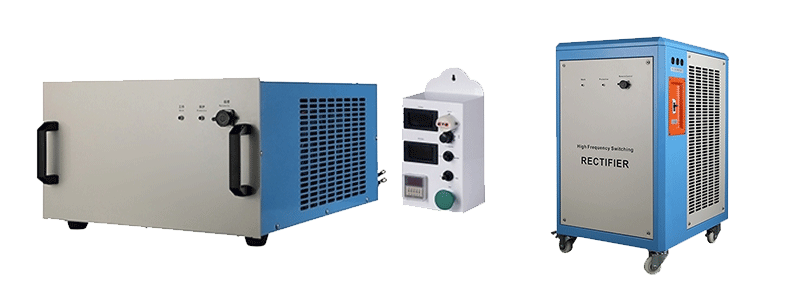

You want hard chromium plating, copper plating, electrolysis process or other metal surface treatment? Then choose a high-frequency electroplating rectifier power supply. ATO plating rectifier for sale, provides a series of forced air cooling plating rectifiers, features with higher efficiency and more reasonable price, continuously adjustable current from 100A to 6000A, three phase four wire 50-60Hz 380V/ 400V/ 415V/ 480V AC input voltage and 10V/ 12V/ 15V/ 24V DC output voltage. (Wide range of 220-1000V AC input, 8-500V DC output and higher output current are customizable). They adopt pulse width modulation (PWM) as the control circuit and world-famous IGBT power modules, equipped with a standard antiseptic remote controller box, separate the power from the plating tank. Compared with manual operation, it is more reliable and easy to operate.
How does a plating rectifier work?
When a voltage is applied to the PN junction, the P junction is connected to the positive voltage and the N junction is connected to the negative voltage, current flows from the P junction to the N junction, and holes and electrons move toward the interface, making the space charge area narrower, current can pass smoothly, and current conducts. If the N junction is connected to the positive side of the voltage, the P junction is connected to the negative side, the holes and electrons are moving away from the direction of the interface so that the space charge area becomes wider, and the current can not flow through the current cutoff. This is the unidirectional conductivity of the PN junction. Using this property, it is possible to make the forward voltage conductive and the reverse voltage cutoff to rectify the AC current. The above is the working principle of an electroplating rectifier.
AC to DC Plating rectifier features
Small size and lightweight: plating rectifier is easy for you to plan, expand, move, maintain and install.
Good energy-saving effect: The switching power supply of the plating rectifier adopts a high-frequency transformer, and the conversion efficiency is greatly improved, which is more than 10% higher than that of silicon controlled equipment under normal conditions, and more than 30% higher than that of silicon controlled equipment when the load rate reaches below 70%.
High output stability: due to the plating rectifier system response speed (microsecond level), the network power and load changes have strong adaptability, and the output accuracy can be better than 1%. Switching power supply efficiency is high, so the control accuracy is high, which is conducive to improving product quality.
The output waveform is easy to modulate: due to the high working frequency of the plating rectifier, the output waveform adjustment cost is low, and the output waveform can be changed according to the user's process requirements, which is conducive to the worksite to improve work efficiency and process product quality.
Functions of ATO plating rectifier
Plating rectifiers can reduce the porosity, the formation rate of the nucleus is larger than the growth rate, and promote the refinement of the nucleus.
It improves the bonding force and makes the passivation film break down, which is conducive to the solid bonding between the substrate and the plating layer.
The plating rectifier improves the coverage and dispersion ability, and the high negative cathode potential enables the deposition of the passivated parts in ordinary plating and slows down the "scorching" and "dendritic" deposition of the protruding parts of complex parts due to the excessive consumption of deposited ions. For obtaining a given characteristic layer (such as color, no porosity, etc.), the thickness can be reduced to 1/3~1/2 of the original, saving raw materials.
It reduces the internal stress of the plating layer, improves lattice defects, impurities, voids, tumors, etc., easy to get a crack-free plating layer, and reduces additives.
It helps to get alloy plating layers with stable composition.
Three-phase plating rectifier improves the dissolution of an anode without an anode activator.
The plating rectifier can improve the mechanical and physical properties of the plating layer, such as increasing density, reducing surface resistance and body resistance, improving toughness, wear resistance, corrosion resistance and controlling the hardness of the plating layer.
Electroplating rectifier troubleshooting
Failure: The rectifier occurs with an abnormal rattling sound. Treatment: The dust accumulation of the rectifier should be cleaned up in time to avoid affecting the normal operation of the whole machine.
Fault: The power indicator light of the plating rectifier is not lit. Treatment: The power cord is not plugged in or the main switch of the plating rectifier is not closed.
Fault: The power indicator is normal, the fan is normal, and the work indicator is not lit. Treatment: At this time, you should check whether the position of the start switch is correct, if the position is normal but still can't work, then please re-toggle the start switch.
Fault: The working indicator is normal, but the regulation current and voltage are faulty. Treatment: Please pay attention to whether the regulated voltage and current have exceeded the minimum and maximum values that the power supply itself can carry and whether the adjustment switch has been turned to the lowest or highest position.
Fault: During the working process, the current output is suddenly interrupted, but the working indication and the voltage and current meter show normal. Treatment: There is a problem with the wiring between the power supply and the plating tank. At this time, you should check the wiring between the power supply and the tank and connect it in time.
Fault: During the working process, the power output of the plating rectifier is suddenly interrupted and the protection light flashes. Treatment: The power supply system enters the protection state.
