    1/2 hp Shallow Well Jet Pump with Pressure Tank

    $349.69
    SKU: ATO-SWP-0-5HP
    Factory price 0.5 hp (0.37kW) shallow well jet pump with 20L pressure tank for sale. This shallow well water pump can convey clear water for irrigation and sprinkler system in garden and yard, with 4.8m3/h flow, 58m head, stainless steel body material, optional voltage of 110V 60Hz, 220-240V 50Hz or 220-240V 60Hz.

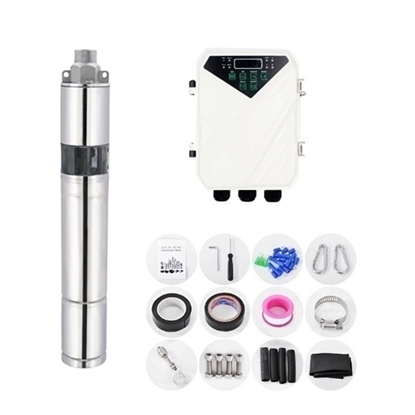

    80W Submersible/Deep Water Well Pump, 12V DC

    $727.27
    SKU: ATO-SWP-12V80
    Cheap 80W water well pump adopts stainless steel single screw structure, which can be used for home use, such as small ponds, small fountains, water tanks or water gardens. 12 volt DC deep well pump has an external DC controller, maximum head of 28m (90ft), maximum flow of 132 gph, 3 inch inlet diameter and 0.75 inch outlet diameter.

    120W Submersible/Deep Water Well Pump, 24V DC

    $727.27
    SKU: ATO-SWP-24V120
    High quality 120 watt water well pump cost is low. It has stainless steel impeller, 3 inch inlet diameter, 0.75 inch outlet diameter, maximum head 56m (180ft), maximum flow 1.2m3/h. 24V DC submersible well pump with a DC controller can be used for water tanks, water gardens, small fountains or pools.

    3/4 hp Shallow Well Jet Pump with Pressure Tank

    $353.59
    SKU: ATO-SWP-0-75HP
    0.75 hp (0.55kW) shallow well jet pump with 20L pressure tank for sale at economical price. This shallow well water pump can convey clear water for irrigation and sprinkler system in garden and yard, with 4.8m3/h flow, 56m head, stainless steel body material, optional voltage of 110V 60Hz, 220-240V 50Hz or 220-240V 60Hz.

    1 hp Shallow Well Jet Pump with Pressure Tank

    $358.79
    SKU: ATO-SWP-1HP
    Cost-effective 1 hp (0.75kW) shallow well jet pump with 20L pressure tank for sale, optional voltage of 110V 60Hz, 220-240V 50Hz or 220-240V 60Hz. This stainless steel shallow well water pump can convey clear water for irrigation and sprinkler system in garden and yard, with 3m3/h flow, 45m head.

    200W Submersible/Deep Water Well Pump, 24V DC

    $816.74
    SKU: ATO-SWP-24V200
    Buy a 200W deep well pump with an external DC controller online. 24 volt DC water well pump adopts stainless steel impeller to support drip irrigation, small fountain, farms, cattle or ponds. It has maximum head 25m, maximum flow 3.0m3/h, and 1.25 inch outlet diameter.

    1.5 hp Shallow Well Jet Pump with Pressure Tank

    $375.79
    SKU: ATO-SWP-1-5HP
    Low cost 1.5 hp (1.1kW) shallow well jet pump with 20L pressure tank for sale, optional voltage of 110V 60Hz, 220-240V 50Hz or 220-240V 60Hz, with 3m3/h flow, 48m head. This stainless steel shallow well water pump can convey clear water for irrigation and sprinkler system in garden and yard.

    210W Submersible/Deep Water Well Pump, 36V DC

    $727.27
    SKU: ATO-SWP-36V210
    Low price 210 watt water well pump for sale. DC controller can show power, voltage, current and speed values. 36V submersible well pump with stainless steel impeller, maximum head 77m, maximum flow 1.2m3/h, 3 inch inlet diameter and 1.25 inch outlet diameter can be used for deep wells, small fountains, ponds or water tanks.

    1300W Shallow Well Jet Pump with Pressure Tank

    $565.49
    SKU: ATO-SWP-1300W
    Best 1300W shallow well jet pump with 100L pressure tank at factory price, optional voltage of 110V 60Hz, 220-240V 50Hz or 220-240V 60Hz, with 5m3/h flow, 90m head. This stainless steel shallow well water pump can convey clear water for irrigation and sprinkler system in garden and yard.

    300W Submersible/Deep Water Well Pump, 24V DC

    $727.27
    SKU: ATO-SWP-24V300
    300W water well pump adopts stainless steel impeller and has maximum head 35m (115ft), maximum flow 3.0m3/h, DC 24 volt working voltage, 3 inch inlet diameter and 1.25 inch outlet diameter. Deep well pump with special DC controller supplies for pool, tank, water feature or fountain.

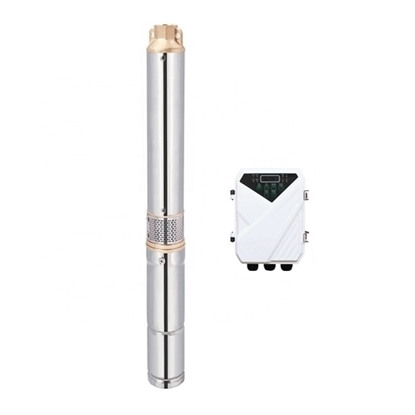

    1/2 hp (400W) Submersible/Deep Water Well Pump, 48V DC

    $727.27
    SKU: ATO-SWP-48V400
    1/2 hp submersible well pump has 47~50mmaximum head, 48V DC working voltage and pumps 800~1000 gallons per hour. 3-inch water well pump with an external DC controller is used for ponds, farms, fountains or pools. DC controller with LED display shows power, voltage, current and speed values.

    2 hp Shallow Well Jet Pump

    $459.69
    SKU: ATO-SWP-2HP
    Favorable price 2 horsepower (1.5kW) shallow well jet pump for sale, optional voltage of 110V 60Hz, 220-240V 50Hz or 220-240V 60Hz, with 4.5m3/h flow, 40m head, 10m NPSH. This stainless steel shallow well water pump can convey clear water for irrigation and sprinkler system in garden, yard and other places.

    3 hp Shallow Well Jet Pump

    $586.66
    SKU: ATO-SWP-3HP
    3 horsepower (2.2kW) shallow well jet pump for sale online, optional voltage of 110V 60Hz, 220-240V 50Hz or 220-240V 60Hz, with 8m3/h flow, 55m head, 10m NPSH. This stainless steel shallow well water pump can convey clear water for irrigation and sprinkler system in garden and yard, high performance for the price.

    500W Submersible/Deep Water Well Pump, 48V DC

    $746.03
    SKU: ATO-SWP-48V500
    500W water well pump cost is affordable. It has stainless steel impeller/screw, maximum head 45~109m (145~355ft), maximum flow 449~1321 gallons per hour, 3 inch/4 inch inlet diameter and 0.75 inch/1.25 inch outlet diameter. Popular 48V DC submersible well pump can be used for deep wells, small fountains, large ponds or water tanks.

    600W Submersible/Deep Water Well Pump, 48V DC

    $746.03
    SKU: ATO-SWP-48V600
    Best 48V water well pump with a special DC controller has maximum head 42~80m (135~260ft), maximum flow 800~1585 gallons per hour, 3 inch/4 inch inlet diameter and 1.25 inch outlet diameter. 600 watt submersible water pump can be used for pools, tanks, water features or fountains.

    600W Submersible/Deep Water Well Pump, 72VDC

    $764.79
    SKU: ATO-WWP-72V600
    High quality 600 watt well pump for sale, 72 volt water well pump has single-suction plastic impeller, maximum head 80m/ 42m, maximum flow 800/ 1585 gallons per hour, 3 inch/ 4 inch inlet diameter and 1.25 inch outlet diameter. Submersible well pump can be used for water tank, water feature, pond or farms.

    1 hp (750W) Submersible/Deep Water Well Pump, 48VDC

    $783.55
    SKU: ATO-WWP-48V750
    1 hp well pump has optional maximum head 95m/ 56m/ 67m, maximum flow 925/ 1585/ 1321 gallons per hour, single-suction impeller, 3/ 4 inch inlet diameter and 1.25 inch outlet diameter. Water well pump can be used for irrigation, water tank, pool, livestock or farms.

    1 hp (750W) Submersible/Deep Water Well Pump, 72VDC

    $802.31
    SKU: ATO-WWP-72V750
    Competitive price water well pump with 72 volt working voltage, special DC controller. Water well pump has maximum head 95m/ 56m/ 67m for selection, maximum flow 925/ 1268/ 1585/ 1321 gallons per hour, 3 inch/ 4 inch inlet diameter and 1.25 inch outlet diameter. 1 hp well pump can be used for tank, pool, fountain or water feature.

    1.5 hp (1100W) Submersible/Deep Water Well Pump, 72VDC

    $821.07
    SKU: ATO-WWP-72V1100
    1.5 hp well pump with 72V DC working voltage, submersible well pump has optional maximum head 110/ 123m (360/ 400ft), maximum flow 3.8m³/ 4.8m³ per hour, 3 inch inlet diameter and 1.25 inch outlet diameter, single-suction plastic/ stainless steel impeller can be chosen. The water well pump can be used for irrigation,water tank, farms and livestock.

    1.5 hp (1100W) Submersible/Deep Water Well Pump, 110VDC

    $839.83
    SKU: ATO-WWP-110V1100
    110 volt submersible well pump with 1100 watt, the deep well pump has optional maximum head 123m/ 130m/ 84m/ 101m, maximum flow 1004~1585 gallons per hour, 3 inch/ 4 inch inlet diameter and 1.25 inch outlet diameter. 1.5 hp well pump for agriculture can be used for irrigation, farms, cattle, livestock or water tank.

    A water well pump is a pump that is used in extracting water from a water well. The deep well pump has the advantages of compact structure, small size, light weight, convenient installation, use and maintenance, safe and reliable transportation, and energy saving.

    ATO.com online store offers well pump of wide range power from 80W to 1500W for selection, working voltage DC 12V/ 24V/ 48V/ 72V/ 110V. The deep well pump has a special DC controller with LED which can display power, voltage, current and speed values in real time. DC controller drives the submersible water pump pumping water from deep wells/ pond/ rivers/ lakes, and injecting water to tanks/pools or irrigation/ fountain systems.

    The water pumping system brings new resource-saving and environment-friendly solutions for agricultural, irrigation, desert management, urban water feature and home use. Buy a deep well water pump for your needs now!

    What is Well Pump?

    A submersible pump is a device which has a hermetically sealed motor close-coupled to the pump body. The whole assembly is submerged in the fluid to be pumped. The main advantage of this type of pump is that it prevents pump cavitation, a problem associated with a high elevation difference between the pump and the fluid surface. Submersible pumps push fluid to the surface, rather than jet pumps, which create a vacuum and rely upon atmospheric pressure. Submersibles use pressurized fluid from the surface to drive a hydraulic motor downhole, rather than an electric motor, and are used in heavy oil applications with heated water as the motive fluid.Water well pump

    How does Water Well Pump Work?

    The well pump pushes the water from your well into a storage tank, which will store it until you need it. When the motor is in operation, it will draw water into the pump, which then pushes it to the surface into a pressure tank.

    Pumping water into this pressure tank will cause the tank’s air pressure to increase until it reaches a specific preset level, ranging from 40 to 60 psi. When you turn a faucet on in your house, the force of the lessening air pressure in the tank pushes water through your plumbing. Once the air pressure drops down to around 40 psi, this will turn the pump back on again, and the pump will immediately start to drive more water into the storage tank.

    Water Well Pump Troubleshooting

    1. No water or little flow after startup
      After starting, the pump rotates, but there is no water or the flow rate is small. It should be stopped immediately for inspection. If the time is a little longer, the rubber bearing may be burned and the pump may vibrate. The main reasons are: (1) The pump body is not submerged enough in the water or the water level in the well drops too much, and the water inlet is exposed to the water surface and air is sucked in. (2) The mud sand and debris in the water block the water inlet pipe, impeller or water guide casing flow channel, and the debris in the pump or well must be cleaned before installing the pump. (3) The impeller is loose, the transmission shaft or the pump shaft is broken, which causes the impeller to not rotate. This type of failure is caused by improper assembly of the pump body or excessive adjustment of the axial clearance. (4) The water outlet pipe is broken and tripped, resulting in a large amount of water leakage, resulting in reduced water output or no water.
    2. Difficulty or inability to start
      If the switch is turned on, the fuse blows immediately or the motor only hums and does not rotate or the rotation does not reach the rated speed. All are startup failures.
    3. The operating rate of the deep well pump increases
      If it is found that the reading of the ammeter or power meter on the switchboard suddenly increases, it means that the power of the deep well pump shaft increases and the motor is overloaded. The cause should be immediately identified and dealt with, and the overload time of the motor should be shortened as much as possible to avoid burning the motor. Reasons for the increase in the power of the pump shaft: (1) The axial clearance of the impeller is too small, which causes mechanical friction between the impeller and the water guide shell, and the clearance should be adjusted by stopping the machine. (2) The packing is too tight, the gland nut should be loosened properly; (3) The motor bearing is damaged, the bearing should be replaced. (4) The water contains a large amount of mud and sand, and the running parts are blocked by mud and sand, so the pump should be removed to clean the well.
    4. Strong vibration occurs when the deep well pump is running
      (1) Vibration at start-up may be due to the lack of pre-lubricating water or insufficient water. It should be stopped immediately to add pre-lubricating water to avoid dry friction and cause the rubber bearing to hold the shaft after high temperature. (2) The axial clearance of the drive shaft is too small, which causes mechanical friction and collision between the impeller and the water guide casing, causing vibration, and should be stopped immediately for inspection. (3) The drive shaft is bent or the rubber bearing is excessively worn, and the supporting function is lost, causing the drive shaft to swing. The drive shaft should be checked and straightened. (4) The well pipe is not vertical, and the transmission shaft and the water pipe are squeezed and bent to cause vibration. The deep well pump should be removed to straighten the well pipe.
