    500W Submersible/Deep Water Well Pump, 48V DC

    500W water well pump cost is affordable. It has stainless steel impeller/screw, maximum head 45~109m (145~355ft), maximum flow 449~1321 gallons per hour, 3 inch/4 inch inlet diameter and 0.75 inch/1.25 inch outlet diameter. Popular 48V DC submersible well pump can be used for deep wells, small fountains, large ponds or water tanks.
    SKU: ATO-SWP-48V500
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    500w water well pump and DC controller for sale. Low cost deep well pump has 48V working voltage, 449~1321 gph max. flow, 45~109m max. Head, can be used for deep wells, small fountains, large ponds or water tanks.

    Well Pump Features

    Model 3DSS1.7-109-48-500 4DSC5-45-48-500
    Max. flow 1.7m3/h (449 gph, American system) 5.0m3/h (1321 gph, American system)
    Max. head 109m (355ft) 45m (145ft)
    Length 70cm 50cm
    Inlet diameter 3 inch 4 inch
    Outlet diameter 0.75 inch 1.25 inch
    Structure Stainless steel single screw Single-suction stainless steel impeller
    Power 500W
    Voltage 48V DC
    Internal motor Brushless DC motor
    Speed 4000rpm
    Material of shaft 304 stainless steel
    Material of outlet/connector/oil cylinder Stainless steel
    No water protection function The water pump stops working automatically when there is no water in the well, and it will automatically restart working 30 minutes later.
    Required open circuit voltage (VOC) of solar panel <100V DC
    Required power of solar panel ≥1.3*pump power
    Efficiency 45%
    Warranty 2 years
    Cable length 2m

    Controller Features

    Model DF-48
    Best MPPT voltage range 60-90V DC
    Max. input current 15A
    Working temperature -15~+60℃ (5~140℉)
    Display LED display can show power, voltage, current and speed value.
    Functions Automatic charging (for battery)
    Variable frequency
    Automatic power ON/OFF
    Soft start
    High voltage/low voltage/over-current/high temperature protection
    Protection class IP65

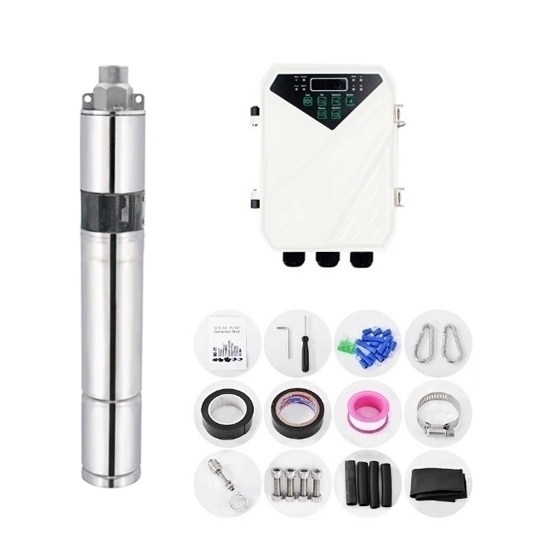

    Package included

    • 1 * Water well pump with 2m cable
    • 1 * DC controller
    • 1 * Stainless steel float switch (water level sensor for the tank)
    • 1 * Pump outlet joint connector
    • 1 * Splice kit for cable join
    • 1 * Splice kit for waterproof
    • 1 * User manual

    500W water well pump performance curves

    Max. Flow: 1.7m3/h, Max. Head: 109m, Model: 3DSS1.7-109-48-500

    500W 48V DC 3 inch water well pump performance curves

    Max. Flow: 5.0m3/h, Max. Head: 45m, Model: 4DSC5-45-48-500

    400W 48V DC 3 inch water well pump performance curves

    Tips: Water well pump applications

    • Livestock irrigation: The water well pump plays a major role in the water supply on pastures in America, Australia and Southern Africa. The water sources in these areas are scattered over vast pastures with few power lines, and the cost of transportation and maintenance is very high. Some ranchers use solar water pumps to distribute pipes of several kilometers (more than 5 kilometers), others use portable systems to move them from one source to another.
    • Agricultural irrigation: The water well pump is used for small farms, orchards, vineyards and gardens. Direct water pumping (without a battery) is the most economic. It stores water in a tank and distributes it by gravity flow. In the case where pressurization is required, the battery stabilizes the voltage to maintain consistent flow and distribution, eliminating the need for a storage tank.
    • Household water supply: The water well pump can also be applied in private houses, villages, medical clinics and so on. The pump can be powered by a solar panel array or by the main power system that powers the fixtures and home appliances.
