    300W Submersible/Deep Water Well Pump, 24V DC

    5 out of 5 based on 2 reviews | Write a review
    300W water well pump adopts stainless steel impeller and has maximum head 35m (115ft), maximum flow 800 gallons per hour, DC 24 volt working voltage, 3 inch inlet diameter and 1.25 inch outlet diameter. Deep well pump with special DC controller supplies for pool, tank, water feature or fountain.
    SKU: ATO-SWP-24V300
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    300 watt solar water pump with DC controller is used for pool, tank, water feature or fountain. It has 24V working voltage, 800 gph max. flow, 35m max. head.

    Well Pump Features

    Model 3DPC3-35-24-300
    Voltage 24V DC
    Power 300W
    Max. flow 3.0m3/h (800 gph, American system)
    Max. head 35m (250ft)
    Length 60cm
    Inlet diameter 3 inch
    Outlet diameter 1.25 inch
    Screw structure Stainless steel single screw
    Internal motor Brushless DC motor
    Speed 4000rpm
    Material of shaft 304 stainless steel
    Material of outlet/connector/oil cylinder Stainless steel
    No water protection function The water pump stops working automatically when there is no water in the well, and it will automatically restart working 30 minutes later.
    Required open circuit voltage (VOC) of solar panel <50V DC
    Required power of solar panel ≥1.3*pump power
    Efficiency 45%
    Warranty 2 years
    Cable length 2m

    Controller Features

    Model DF-24
    Best MPPT voltage range 30-48V DC
    Max. input current 15A
    Working temperature -15~+60℃ (5~140℉)
    Display LED display can show power, voltage, current and speed value.
    Functions Automatic charging (for battery)
    Variable frequency
    Automatic power ON/OFF
    Soft start
    High voltage/low voltage/over-current/high temperature protection
    Protection class IP65

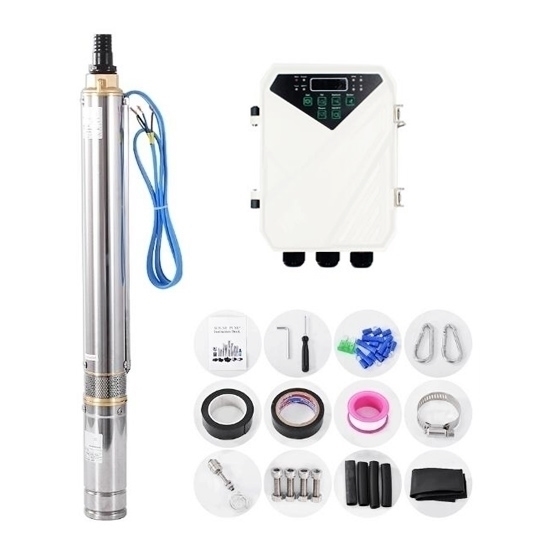

    Package included

    • 1 * Water well pump with 2m cable
    • 1 * DC controller
    • 1 * Stainless steel float switch (water level sensor for the tank)
    • 1 * Pump outlet joint connector
    • 1 * Splice kit for cable join
    • 1 * Splice kit for waterproof
    • 1 * User manual

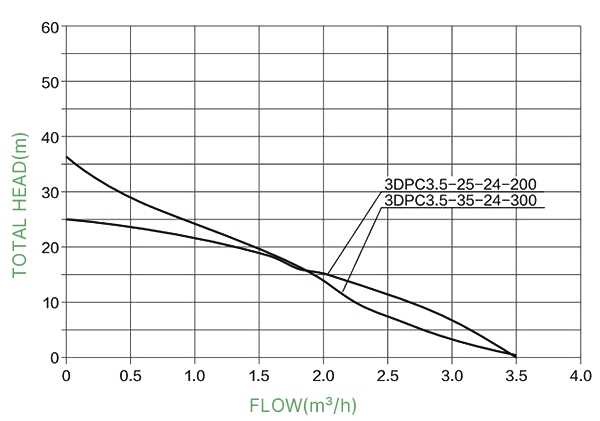

    300W water well pump performance curves (see dart blue line):

    300W 24V DC 3 inch solar water pump performance curves

    Tips: What is a water well pump?

    A water well pump system is a photovoltaic pumping system that uses the solar panel power generated by the PV (photovoltaic) array to drive the pump. The whole system is mainly constituted by the solar panel, solar inverter and solar water pump. It is the most attractive water supply means in the sun-rich areas of the world today, especially in remote areas where electricity is insufficient or not available.

    There are two main types of solar water pumps. The surface pump is located on the ground and moves water through the pipe. They can move a lot of water slowly. The submersible solar water pump is located underground, but the solar panel is connected to the ground. The submersible pump is used to move water from the well to the surface. Water well pumps are often found on farms or large irrigation systems where water needs to be moved from the lake to the field for irrigation or to be moved from the well to the water tank for fountain, pool and home use.
