    Right Angle Gearbox

    Right angle gearbox is a type of speed reducer, which is driven by gears. Gear types in right angle gearbox include worm gears, bevel gears, spiral bevel gears, spiral worms, planetary gears, etc. The most popular gearbox types are spiral bevel and worm gear box.

    The main function of a right angle gearbox is speed reduction and steering, so it is also called steering gear box. The drive shaft (input shaft) and output shaft of right angle gearbox are distributed at an angle of 90-degree. Shafts of a 90° gearbox can intersect in 1 plane or in 2 parallel planes. Advantages of right angle gearbox: small size, compact structure, suitable for use in limited space. Right angle gearbox reducer can be combined with other types of gearboxes. The torque is large. Hollow shafts can be used.

    A right angle gearbox with a gear ratio of 1 to 1 is usually called a mitre gearbox. Because the larger the spiral bevel gear, the larger the size, the speed ratio of a spiral bevel gearbox seldom exceeds 4:1. However, ATO can provide right angle gearboxes with high gear ratios of 4:1 and 5:1. If you need a higher gear ratio, we also provide customization, please contact us.

    View as Grid List
    Display per page
    Sort by

    2 hp 1500 rpm Spiral Bevel Right Angle Gearbox, 1:1/ 2:1

    $413.23
    SKU: ATO-RAGB-21500
    Right angle gearbox driven by spiral bevel gear. Ratio 1 to 1 or 2 to 1 for selection, maximum input power 2 hp, speed 50~1500 rpm, torque 5.8~18.62 N.m, flexible input/output shafts combination, 1/2/3/4 ways. Small speed reducer change transmission direction in 90°, compact, low price.

    18 hp 1500 rpm Spiral Bevel Right Angle Gearbox, 1:1/ 2:1

    $879.85
    SKU: ATO-RAGB-181500
    Good price right angle gearbox for sale, spiral bevel gear drives. Optional ratio 1 to 1 or 2 to 1, maximum input horsepower 18 hp, speed 1500 rpm, high torque 38.5~137.51 N.m, various input/output shafts configurations, 1/2/3/4 ways. Small right angle reducer gearbox for 90° reduction and transmission.

    100 hp 1500 rpm Spiral Bevel Right Angle Gearbox, 1:1/ 2:1

    $1,949.69
    SKU: ATO-RAGB-1001500
    Buy spiral bevel right angle gearbox at affordable price. Gear ratio 1 to 1 or 2 to 1 for choose, max input power 100 hp, speed 50~1500 rpm, high torque 224.8~787.82 N.m, optional input/output shafts directions, 1/2/3/4 ways. Compact 90 degree reducer gearbox, 95% high efficiency, small size.

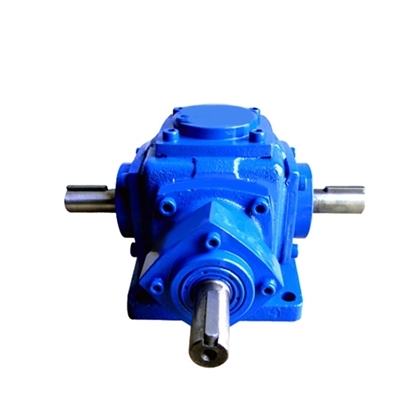

    5 hp 1450 rpm Spiral Bevel Right Angle Gearbox, 1:1/ 2:1

    $694.62
    SKU: ATO-RAGB-51450
    Competitive price right angle gearbox for sale, driven by spiral bevel gear. Optional gear ratio 1 to 1 or 2 to 1, max input power 5 hp, speed 10~1450 rpm, high torque 32~48.5 N.m, 1/2/3/4 ways shafts, optional output shafts directions. 90-degree gearbox reducer, small and compact.

    15 hp 1450 rpm Spiral Bevel Right Angle Gearbox, 1:1~5:1

    $899.69
    SKU: ATO-RAGB-151450
    Buy spiral bevel right angle gearbox from professional manufacturer. 7 gear ratios for selection, 1:1 to 5:1, max input horsepower 15 hp, speed 10~1450 rpm, torque 52~139 N.m, optional 1/2/3/4 ways shafts configurations and directions. Ideal price gearbox reducer for reduction and 90°steering.

    45 hp 1450 rpm Spiral Bevel Right Angle Gearbox, 1:1~5:1

    $1,319.69
    SKU: ATO-RAGB-451450
    Ideal manufacturer right angle gearbox with spiral bevel drives. Optional gear ratios from 1:1 to 5:1, input horsepower 0.02~45 hp, speed 10~1450 rpm, torque 69~361 N.m, 1/2/3/4 ways shafts, optional directions. Compact right angle reducer gearbox, 90°steering and reduction.
