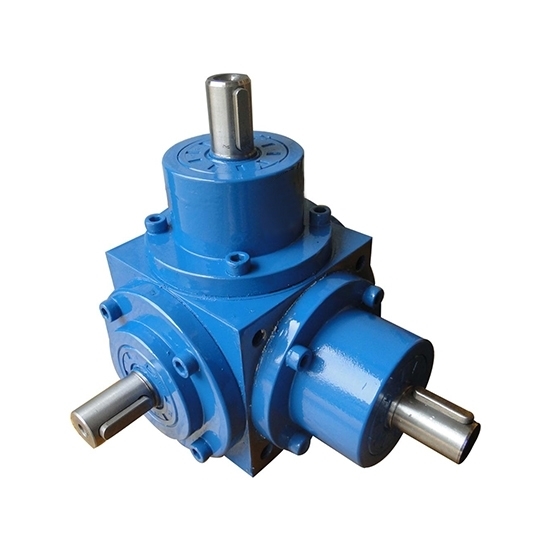

    18 hp 1500 rpm Spiral Bevel Right Angle Gearbox, 1:1/ 2:1

    $879.85
    Good price right angle gearbox for sale, spiral bevel gear drives. Optional ratio 1 to 1 or 2 to 1, maximum input horsepower 18 hp, speed 1500 rpm, high torque 38.5~137.51 N.m, various input/output shafts configurations, 1/2/3/4 ways. Small right angle reducer gearbox for 90° reduction and transmission.
    SKU: ATO-RAGB-181500
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Buy spiral bevel right angle gearbox at low price. Gear ratio 1:1 or 2:1 for selection, maximum input power 18 hp, speed 50~1500 rpm, optional 1/2/3/4 ways, matching various input and output shafts directions. Compact right angle gear reducer for 90 degree steering and reduction.

    Features

    • Spiral bevel gears, bearings, gear box, input shaft, output shaft and other components consist the right angle gearbox.
    • The spiral bevel right angle gearbox is also a steering gear box, which 90° changes the transmission direction. Small mounting size, high torque, high speed.
    • Spiral bevel gears are made of alloy steel, which is hardened by carburizing, and has high rigidity and wear resistance. The bearing is a tapered roller bearing, which can withstand greater torque.
    • The gear box material is cast iron. The input shaft and output shaft are made of #45 steel, which has been carburized and heat treated.
    • Spiral bevel 90 degree gearbox are used in textile industry, food processing machinery, conveying machinery, packaging machinery, automation machinery, etc.

    Basic Specification

    Model ATO-RNV-120
    Gear Ratio 1:1, 2:1
    Max. Horsepower 18 hp
    Max. Speed 1500 rpm
    Transmission Efficiency 95%
    Gear Oil HD320~680
    Ambient Temperature -20℃ ~ +80℃
    Noise < 80dB
    Weight 14 kg

    Transmission Specification

    Input Speed 1500 rpm
    Gear Ratio Input Horsepower (hp) Torque (N.m)
    1:1 18 86
    2:1 8 38.5
    Input Speed 1000 rpm
    Gear Ratio Input Horsepower (hp) Torque (N.m)
    1:1 13.52 96.83
    2:1 5.9 42.26
    Input Speed 750 rpm
    Gear Ratio Input Horsepower (hp) Torque (N.m)
    1:1 11.34 108.29
    2:1 4.7 44.88
    Input Speed 500 rpm
    Gear Ratio Input Horsepower (hp) Torque (N.m)
    1:1 8.45 121.04
    2:1 3.38 48.42
    Input Speed 250 rpm
    Gear Ratio Input Horsepower (hp) Torque (N.m)
    1:1 4.52 129.49
    2:1 1.8 51.57
    Input Speed 50 rpm
    Gear Ratio Input Horsepower (hp) Torque (N.m)
    1:1 0.96 137.51
    2:1 0.38 54.43

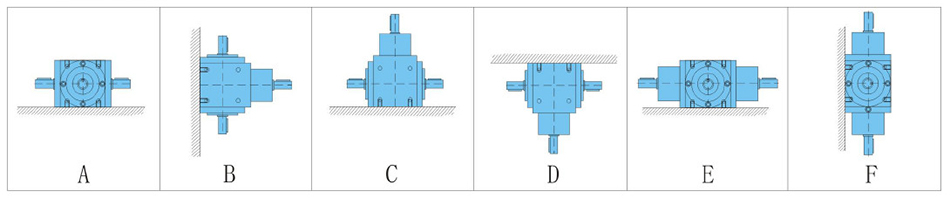

    Spiral Bevel Right Angle Gearbox Installation Methods

    RNV series Spiral Bevel Right Angle Gearbox installation methods

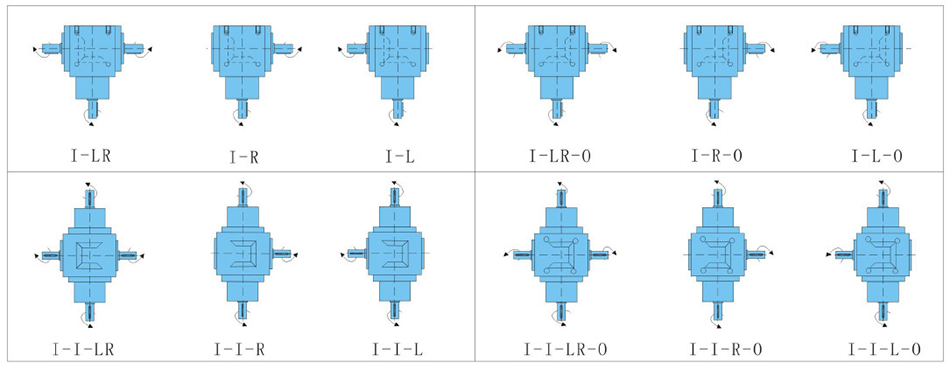

    Spiral Bevel Right Angle Gearbox Shafts Directions

    RNV series Spiral Bevel Right Angle Gearbox Shafts Directions

    Direction Code Definition
    I-LR 1 input shaft + 1 left output shaft + 1 right output shaft
    I-R 1 input shaft + 1 right output shaft
    I-L 1 input shaft + 1 left output shaft
    I-LR-O 1 input shaft + 1 left output shaft + 1 right output shaft, opposite direction
    I-R-O 1 input shaft + 1 right output shaft, opposite direction
    I-L-O 1 input shaft + 1 left output shaft, opposite direction
    I-I-LR 2 input shafts + 1 left output shaft + 1 right output shaft
    I-I-R 2 input shafts + 1 right output shaft
    I-I-L 2 input shafts + 1 left output shaft
    I-I-LR-O 2 input shafts + 1 left output shaft + 1 right output shaft, opposite direction
    I-I-R-O 2 input shafts + 1 right output shaft, opposite direction
    I-I-L-O 2 input shafts + 1 left output shaft, opposite direction

    Tips: How to install 18 hp spiral bevel right angle gearbox correctly?

    1. The 18 hp spiral bevel right angle gearbox must be installed on a firm, flat bottom plate. It is recommended that the flatness be within 0.254mm. Make sure that the mounting pads of right angle gearbox are evenly placed on the bottom plate. It is best to use gaskets to avoid damage to housing, otherwise it may change the gear mesh or cause premature damage and deformation of the bearing.
    2. 18 hp spiral bevel right angle gearbox can be driven by direct coupling, flexible coupling or V-belt drive. The coupling can be installed with less force. The transmission system must be accurately aligned in accordance with the manufacturer's regulations to limit the operating load and minimize the thrust load on the gear drive shaft.
    3. The V-belt drive must be installed close to the bearing seat to minimize excessive overhanging load and avoid premature bearing damage.
    4. The pulley must be installed correctly. Overtightening may cause the shaft to deviate from its normal position and cause internal damage. When installing the 18 hp spiral bevel right angle gearbox, excessive vibration may be caused, which may cause damage or breakage of the shaft.

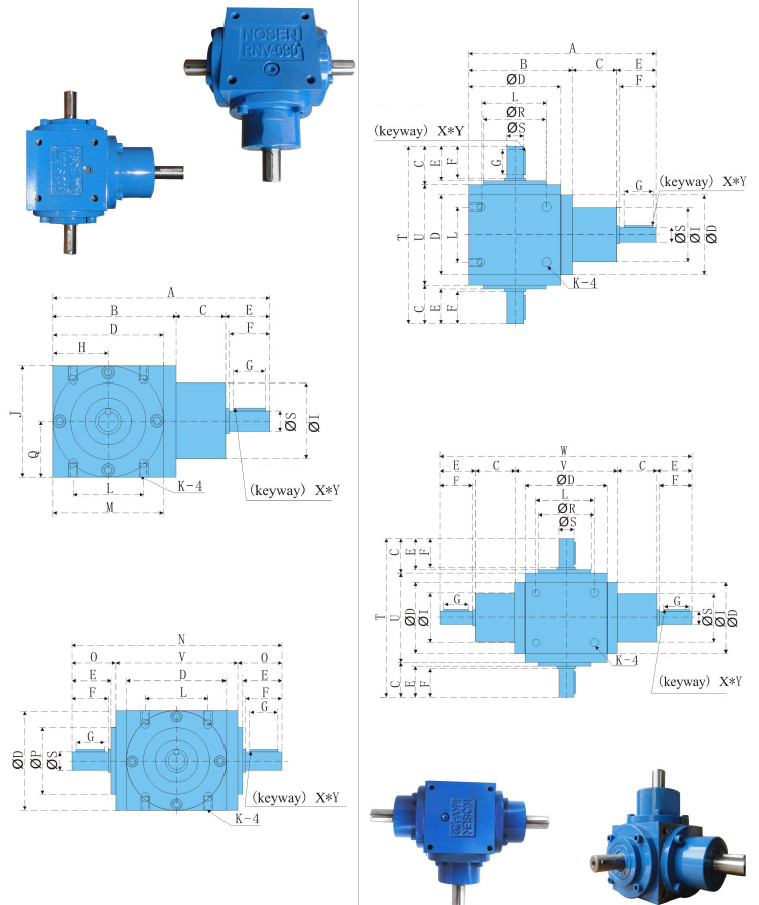

    18 hp 1500 rpm Spiral Bevel Right Angle Gearbox Dimensions (Unit: mm)

    RNV series Spiral Bevel Right Angle Gearbox dimensions

    A B C D P E F G H X * Y φ S φ I
    222 135 40 120 80 47 45 8*7 60 8*4 25 80
    J Q L M K N O V R T U W
    120 60 100 120 M10 244 50 150 80 244 144 324
