    Hydraulic Hand Pump

    View as Grid List
    Display per page
    Sort by

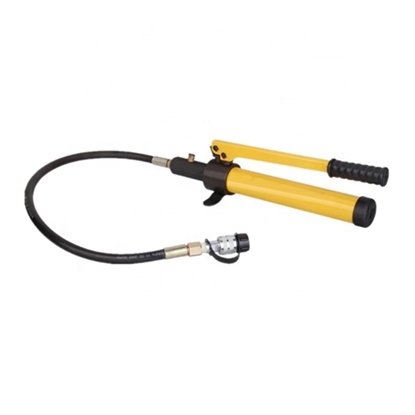

    850 psi Hydraulic Hand Pump, 450cc Oil Reservoir

    SKU: ATO-HHP-450
    Lower cost hydraulic hand pump for sale. Single-acting hydraulic hand pump has oil reservoir 450cc/ 400cc for selection, optional pressure gauge configuration and oil pipe length, with maximum pressure 850 psi, oil amount 20cc/ min. Hand operated hydraulic pump is suitable for split hydraulic pliers, short hydraulic jack, long hydraulic jack and so on.

    10,000 psi Hydraulic Hand Pump, 1200cc Oil Reservoir

    SKU: ATO-HHP-1200
    10000 psi hydraulic hand pump for sale. Double-acting hydraulic hand pump with low pressure of 20 kg/cm, high pressure of 700 kg/cm, optional oil reservoir /900cc/1200cc/2800cc, high-pressure oil output 13cc/ min, low-pressure oil output 2.3cc/ min. Pressure gauge configuration for selection, portable use and long service lifetime.

    10,000 psi Hydraulic Hand Pump, 2800cc Oil Reservoir

    SKU: ATO-HHP-2800
    Low price hydraulic hand pump with 10000 psi for sale online. Double-acting hydraulic hand pump with low-pressure of 2MPa, high-pressure of 70MPa, optional oil reservoir 900cc/2800cc, high-pressure oil output 13cc/ min or 12.26cc/ min, low-pressure oil output 2.3cc/ min or 2.26cc/ min. Pressure gauge configuration can be chosen, 10000 psi hand pump with portable use and long service lifetime.

    10,000 psi Hydraulic Hand Pump, 3000cc Oil Reservoir

    SKU: ATO-HHP-3000
    10000 psi hydraulic hand pump with oil reservoir 1100cc/ 3000cc for selection, double-acting hydraulic hand pump with high pressure 10000 psi (700 kg/cm²), oil output 2.3cc/ 2.26cc per min. Optional pressure gauge and tube length 2m/ 3m/ 4m/ 5m for purchase. Hand operated hydraulic pump has light weight, easy to carry and high security advantages.

    10,000 psi Hydraulic Foot Pump, 0.6~1.5k cc Oil Reservoir

    SKU: ATO-HFP-1500
    Hydraulic foot pump with double-acting output, 2-stage pressure, high pressure 10000 psi (700 kg/cm²), low pressure 284 psi (20 kg/cm²), optional oil reservoir 600cc/ 700cc/ 900cc/ 1500cc. Optional pressure gauge configuration and oil tube length. Foot operated hydraulic pump is suitable for operation in field construction in electric power, construction and other industries.

    The hydraulic hand pump is one of the hydraulic pumps, its function is to convert the mechanical energy of the power machine (such as electric motor and internal combustion engine, etc.) into the pressure energy of the liquid. The manual hydraulic pump has advantages of wide range of use, noiseless operation, high security and light weight. online store offers hydraulic hand pump with wide range oil reservoir from 400cc to 3000cc, max output pressure 850 psi/ 10000 psi can be chosen, double acting or single acting available, with high and low pressure two-stage pressure output, optional pressure gauge configuration and oil pipe length. Hand operated hydraulic pump is suitable for flammable and explosive places, the operation process does not produce sparks.

    What is a hydraulic hand pump?

    A hydraulic hand pump uses human power as an input to generate a combination of pressure and flow, which then produces hydraulic energy. Based on the simple principle of a handle providing leverage to an internal piston, hydraulic fluid is delivered directly under manually applied pressure. The piston then forces the hydraulic fluid into the cylinder port. Water and hydraulic fluid are the most common fluids, but a variety of pressure media can be used.Hydrulic hand pump

    The hydraulic pressure generated can be used to provide pressure for testing, adjusting and calibrating different types of measuring instruments or tools. Hydraulic hand pumps are commonly used to load and test mechanical components, especially when the user needs fine adjustments. They are also used in material handling machinery to lift and lower heavy objects, which also requires fine control of the movement of the items.

    Features of hydraulic hand pump

    1. It is suitable for flammable and explosive places, and no sparks are generated during the operation;
    2. It has two-stage pressure output of high and low pressure, which can automatically change and speed up the rescue time;
    3. Hydraulic hand pump can be connected to any hydraulic tool;
    4. The hydraulic hand pump has wide range of use;
    5. Using aviation hydraulic oil, it can work under the ambient temperature of -30°C ~ 55°C;
    6. The hydraulic hand pump operate without noise.

    Types of hydraulic hand pumps

    There are two types of hydraulic hand pumps available:

    • Single-acting hydraulic hand pump
    • Double-acting hydraulic hand pumps

    Single-acting hand pumps apply force only on the downstroke, while double-acting hand pumps apply force on both the downstroke and upstroke. For speed, a double-acting hand pump is the better choice. Not everyone thinks these are the better choice because they are more complicated to maintain and repair if there is a problem. Single-acting hand pumps are simpler and easier to maintain, but they take twice as long to produce the same amount of pressure and movement as double-acting hand pumps.

    Single-action pumps are commonly used in hydraulic jacks. Double-acting hand pumps are used in a much wider range of applications. They are used in some aircraft hydraulic systems as a source of hydraulic power in emergencies, to test certain subsystems during preventive maintenance checks, and also to determine the cause of hydraulic system failures. Both types of pumps are designed to reduce operational risk, but double-acting hand pumps are more commonly used to improve safety and minimize downtime.
