Electric Foot Switch, 250V, 10A, 1NO1NC

250V pedal switch with 0.5mm², 3C/ 1m-3m cable length, CMV-100D micro switch type, 12 months warranty. The electric foot pedal has advantages of light weight, simple operation and long service life.

Specification

NOTE: The default size of conduit connector is M20x1.5, outfiting cable connector. Conduit connector size is PG13.5, with product model number plus (-P), example: CFS-302-P.

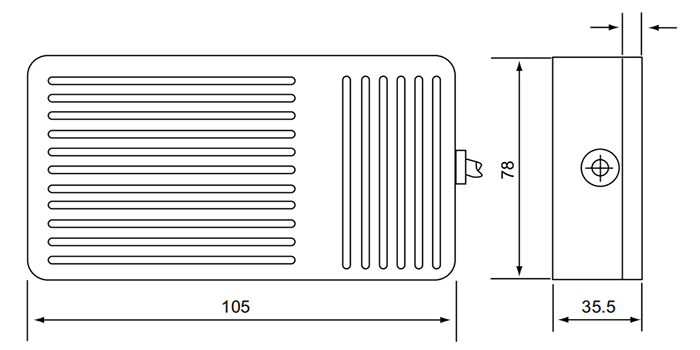

Dimension (unit=mm)

Tips: What is Foot Switch?

A foot switch is a switch that controls the on and off of a circuit by stepping on or stepping on it. It is used in a control circuit that cannot be touched by both hands to replace both hands to achieve the purpose of operation.

A simple foot switch is actually a built-in travel switch, when the foot pedal gives a signal, the switch is executed. But in the field of welding, the function of the foot switch also plays a role in controlling the size of the output current. This type of foot switch can also be divided into two categories: one is  mechanical foot switch; and other one is inductive foot switch. The mechanical foot switch is a traditional rack and pinion drive, and the induction type is based on the principle of electromagnetic induction.
