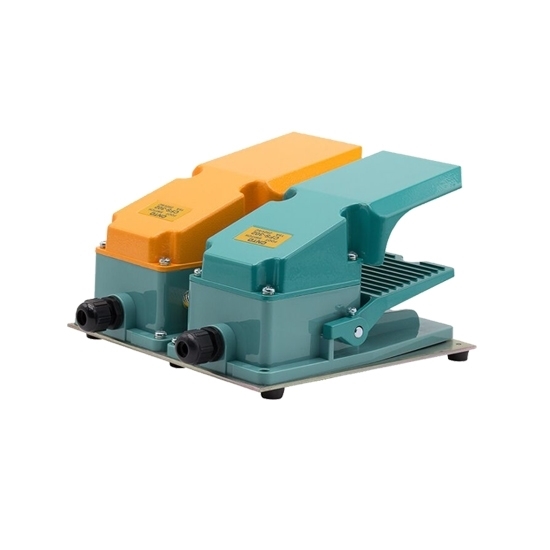

    Foot Switch, 250V, 2NO2NC

    $87.78
    Competitive price foot pedal switch for sales, with rated voltage 250V AC, rated current 15 amp, contact 2*1NO1NC, action force 3.2kg. It offers impact resistance, abrasion resistance, high temperature resistance advantages.
    SKU: ATO-CFS-702
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Foot switch with cheap price, which with momentary operation type, CMV-100D micro switch type. It is widely used in medical equipment, stamping equipment, welding equipment, textile equipment, and printing machinery.

    Specification

    Model CFS-702
    Rated voltage 250V AC
    Rated current 15A
    Operation type Momentary
    Micro switch type CM-1704
    Cable type Accessory: Cable gland (No cable)
    Contact 2*1NO1NC
    Action force 3.2kg
    Shell material Aluminum Cast
    Weight 2.47kg
    Color Green and orange
    Certificate CE
    Warranty 12 months

    NOTE: The default size of conduit connector is M20x1.5, outfiting cable connector. Conduit connector size is PG13.5, with product model number plus (-P), example: CFS-302-P.

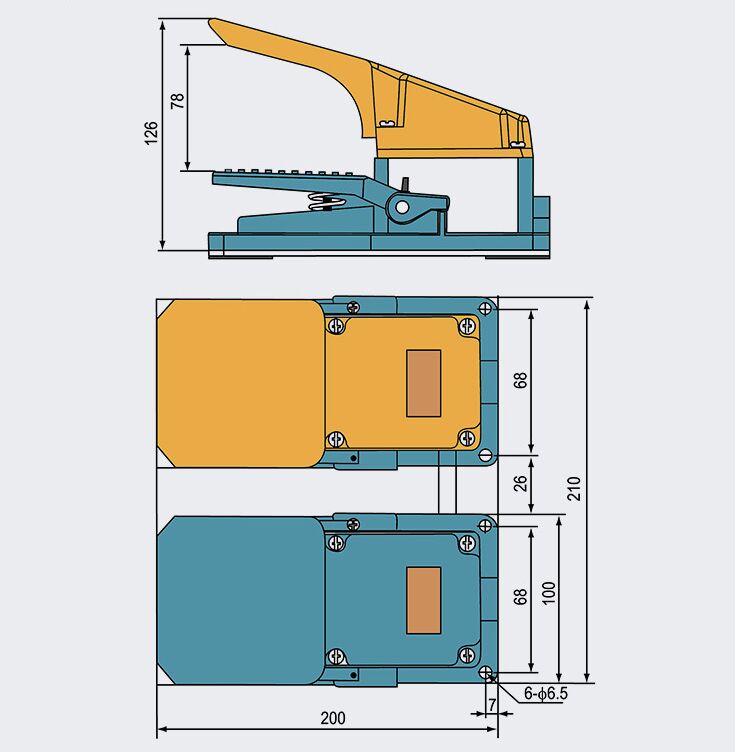

    Dimension (unit=mm)

    Dimension of foot switch of CFS-702

    Tips:  Working Principle of Foot Switch.

    A simple foot switch is actually a built-in travel switch, when the foot pedal gives a signal, the switch is executed. But in the field of welding, the function of the foot switch also plays a role in controlling the size of the output current. There is a micro switch inside the foot switch. The micro switch has 2 sets of contacts: normally open and normally closed. When the foot pedal is pressed to touch the micro switch, the normally open contact is closed and the normally closed contact is disconnected. The general application is to wire the normally open contact and use it as a foot switch.
