    Rigid Coupling

    View as Grid List
    Display per page
    Sort by

    Rigid Coupling, 16 x 16mm

    SKU: ATO-SC-GNC-1616
    Rigid shaft coupling diameter 16mm, length 16mm, 4mm to 8mm, ratd torque 5 N.m, low inertia and high sensitivity, shaft coupler is made of high-strength aluminum alloy with strong corrosion resistance.

    Rigid Coupling, 16 x 24mm

    SKU: ATO-SC-GNC-1624
    Rigid coupling diameter 16mm, 24mm length, rated torque 5 N.m, speed of 9400rpm, moment of inertia 2.9 X 10-7 N.m, rigid clamping couplings are widely used in automation equipment, lasers (marking, engraving, welding, cutting), non-standard automation, dispensing machines, screw machines, etc.

    Rigid Coupling, 20 x 20mm

    SKU: ATO-SC-GNC-2020
    Diameter 20mm x length 20mm rigid coupling for sale, 5mm to 10mm, rated torque 10 N.m, speed of 7500rpm, high torque and high rigidity, the shaft couplers are widely applied to small CNC machines encoding and screw machines.

    Rigid Coupling, 25 x 25mm

    SKU: ATO-SC-GNC-2525
    Sell low price rigid coupling, clamp type, 25mm x 25mm, bore 6mm to 12mm, rigid couplings have the advantages of light weight, ultra-low inertia and high sensitivity, widely used in automation equipment, laser marking and dispensing machines.

    Rigid Coupling, 25 x 36mm

    SKU: ATO-SC-GNC-2536
    Light weight rigid coupling speed of 6000rpm, clamp type, 12Nm rated torque,diameter 25mm, length 36mm, load smoothly, reliable force transmission, easy to install and disassemble. Rigid shaft coupling has the advantages of maintenance-free, super oil and corrosion resistance.

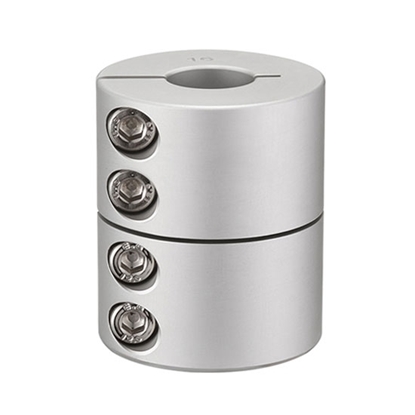

    Rigid Coupling, 32 x 32mm

    SKU: ATO-SC-GNC-3232
    Rigid shaft coupling diameter 32mm, length 32mm, 8mm to 15mm bore, 4700rpm speed, 15 N.m rated torque. Small size rigid coupling has the characteristics of light weight, low inertia and high sensitivity.

    Rigid Coupling, 32 x 41mm

    SKU: ATO-SC-GNC-3241
    Rigid shaft coupling rated torque 19Nm, 32mm diameter, 41mm length, integrated structure, the overall use of high-strength alu-minum alloymaterial to ensure that the rigid coupling will not be corroded and oxidized after long-term use.

    Rigid Coupling, 40 x 44mm

    SKU: ATO-SC-GNC-4044
    Sell high-sensitivity rigid couplings at low prices, 40mm diameter, 44mm length, bore 8mm to 20mm, easy to install and remove, light weight, low inertia, load smoothly, used for occasions with small transmission torque.

    Rigid Coupling, 50 x 55mm

    SKU: ATO-SC-GNC-5055
    High torque rigid shaft coupling diameter 50mmm, length 55mm, speed of 4000rpm, simple structure, light weight, bore 0.39 inch to 1 inch, suitable for the connection of low speed, stable load, short and rigid shaft.

    Rigid Coupling, 20 x 30mm

    SKU: ATO-SC-GNC-2030
    Rigid clamping couping adopts high-strength aluminum alloy as a whole, which has strong corrosion and oxidation resistance, rated torque 10 Nm, speed of 7500rpm. Diameter 20mm, length 30mm, 5mm to 10mm, clamping screw tightening method.
