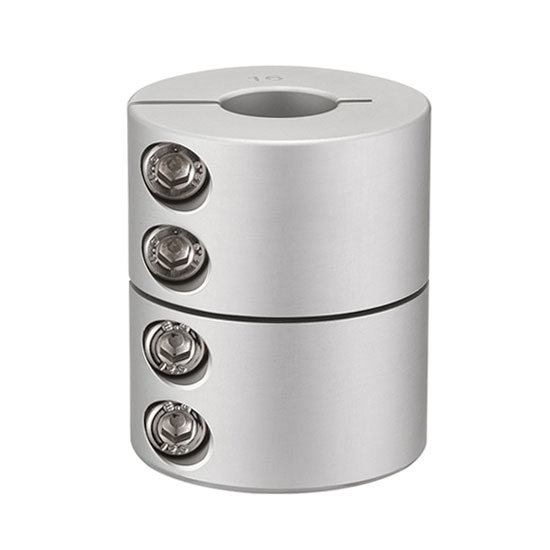

Rigid Coupling, 20 x 20mm

5 out of 5 based on 1 reviews | Write a review

$99.85

Diameter 20mm x length 20mm rigid coupling for sale, 5mm to 10mm, rated torque 10 N.m, speed of 7500rpm, high torque and high rigidity, the shaft couplers are widely applied to small CNC machines encoding and screw machines.

φd1 Inner Diameter Size (mm) *
φd2 Inner Diameter Size (mm) *

SKU: ATO-SC-GNC-2020

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Low cost rigid coupling or sale, diameter 20mm, length 20mm, bore 4mm to 10mm, integrated structure, high-strength aluminum alloy material is used for clamp coupling, rugged and durable, strong corrosion resistance.

Specification

Model	ATO-SC-GNC-1624
Rated Torque	10 Nm
Allowable Speed	7500rpm
Moment of inertia	8.6 X 10^-6
d1/d2 Inner Diameter Size	4-5-6-6.35-7-8-9-9.525-10
Φd	20
L	20
F	3.75
Moment of inertia	M2.5
Tightening Torque	1 N.m
Weight	15g
Certificate	ISO9001, REACH, RoHS
Warranty	12 Months

20 x 20mm Rigid Coupling Dimension (unit: mm)

Tips: How to maintain the shaft coupling?

1. Partially disassemble and inspect the shaft coupling, clean the specified parts, and dredge the pipes and valves.
2. Replace or clean the packing, observe whether the sealing part is leaking, adjust the matching gap of each part of the equipment, and tighten each part of the equipment.
3. Refuel and prevent rust on the bolts of the motor and the water pump.
4. Check whether the pressure gauges and control cabinets are normal, and repair or replace them if they are damaged.
5. Check the operation of the control cabinet and whether the internal components are normal.

Existing reviews of Rigid Coupling, 20 x 20mm

Very great rigid coupling!

Well made good rigid couplings just what i needed. Worked perfect for my project I was working on. So far everything stays locked unlike others with only one set screw. No complaints from me.

From: Joe | Date: 20/04/2022
