    Linear Slide

    Linear slide is also called linear guide rail, linear slide stage or linear slide table. It provides smooth and high-precision linear motion and positioning for different types of automated machinery, and is often used in sturdy mechanical systems that require high thrust, high precision and high rigidity.

    ATO provides linear motion system, which not only a linear slide or guide rail, it is a linear motion system. Drive unit (mainly ball screw or belt), bearings, carriage, guide rail, actuator, positioner, controller, cover, seals and other components consist the whole linear slide mechanism. Common types of linear slides are ball screw, belt driven, sleeve bearing, linear bushing, crossed roller, etc. Compared with a low profile linear rail, the linear slide system is relatively a heavy-duty device.

    ATO linear slide guide rail system is wide used in industrial automation, medical care, packaging, machine tools, semiconductors, printing, automotive assembly, CNC system, food processing and homemade DIY.

    View as Grid List
    Display per page
    Sort by

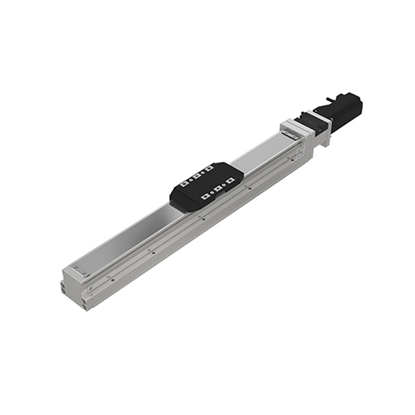

    100~800mm Ball Screw Driven Linear Slide, Ф12mm

    $747.54
    SKU: ATO-LS-80012
    Cheap linear slide guide rail for sale, driven by Ф12mm ball screw. Stroke 100mm~800mm for selection, maximum speed 1000mm/s, motor capacity 100W, screw path 5/10/20mm. High precision linear motion system, servo motor and sensor are optional for configuration.

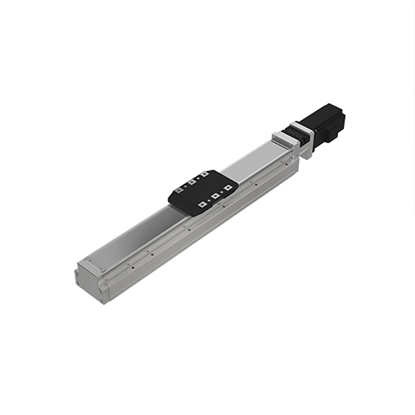

    100~1050mm Ball Screw Driven Linear Slide, Ф16mm

    $799.38
    SKU: ATO-LS-105016
    Low cost linear slide guide rail for sale, driven by Ф16mm ball screw. 11 strokes for selection, minimum 100mm, maximum 1050mm, maximum speed 900mm/s, motor capacity 200W, screw path 5/10/20mm. Compact linear motion system can match with servo motor and sensor.

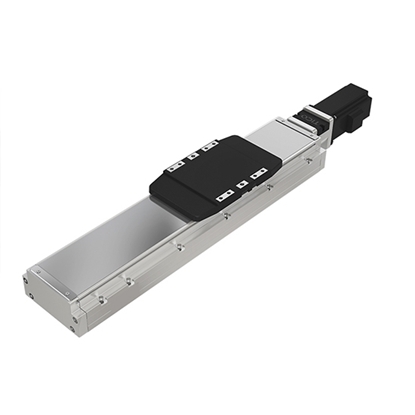

    100~1250mm Ball Screw Driven Linear Slide, Ф16mm

    $949.92
    SKU: ATO-LS-125016
    Linear slide guide rail is driven by Ф16mm ball screw and 400W motor. Stroke can select from 100mm to 1250mm, maximum speed 1600mm/s, optional screw path 5/10/20/32mm. Guide rail, coupling, motor and sensor form the linear motion system, good price and easy assembly.

    100W 100~1050mm Ball Screw Driven Linear Slide, Ф16mm

    $939.69
    SKU: ATO-LS-1050100
    Linear slide works at 100W power, driven by ball screw (diameter 16mm). Available stroke 100mm to 1050mm, screw path 5/10/20mm, maximum speed 900mm/s. The motorized linear guide rail can used with servo motor, optional for configuration.

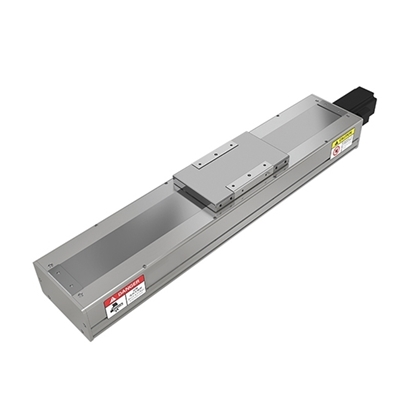

    200W 100~1050mm Ball Screw Driven Linear Slide, Ф16mm

    $1,199.69
    SKU: ATO-LS-1050200
    Ball screw driven linear slide for sale. Stroke 100mm~1050mm for selection, ball screw diameter 16mm, screw path 5/10/20mm, maximum speed 900mm/s, motor power 200W. Linear guide rail with servo motor and sensor for optional configuration.

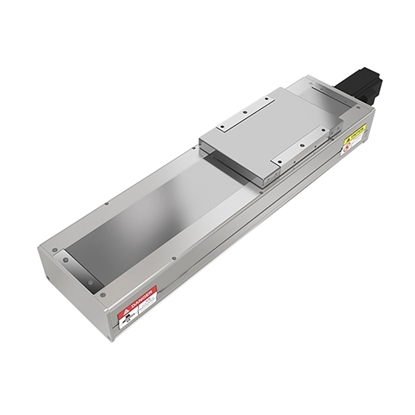

    400W 100~1250mm Ball Screw Driven Linear Slide, Ф20mm

    $1,439.23
    SKU: ATO-LS-1050400
    Good price linear slide is driven by Ф20mm ball screw. 13 optional strokes, minimum 100mm, maximum 1250mm, screw path 5/10/20/40mm, maximum speed 1000mm/s, motor power 400W. Linear guide rail system for linear motion, matching with servo motor and sensor.

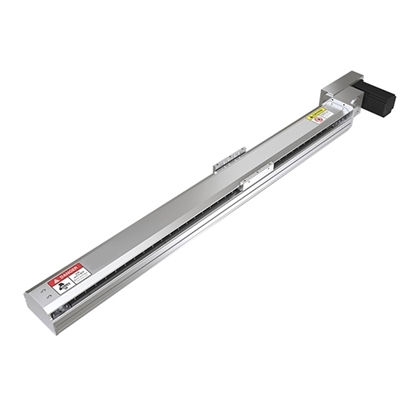

    100W 100~1800mm Belt Driven Linear Slide

    $1,022.46
    SKU: ATO-LS-1800100
    Linear slide guide rail is driven by belt. Stroke is available in 18 values, minimum 100mm, maximum 1800mm, belt width 20mm, max speed 2000mm/s, motor power 100W, lead range 40mm, max payload 10kg, rated thrust 61N. Compact linear motion system, available for matching servo motor and sensor.

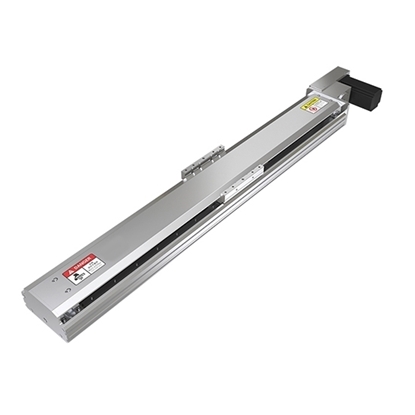

    200W 100~3050mm Belt Driven Linear Slide

    $1,103.85
    SKU: ATO-LS-3050200
    Affordable price linear slide rail for sale, driven by 23mm width belt. 31 values of stroke for selection, minimum 100mm, maximum 3050mm, max speed 2000mm/s, rated power 200W, lead range 40mm, max payload 25kg, rated thrust 100N. Linear motion guide rail system, powered by servo motor, optional conformation is provided.

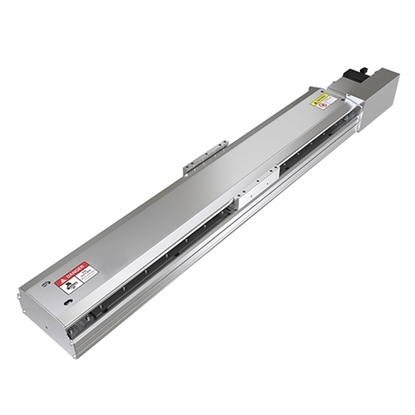

    400W 100~3050mm Belt Driven Linear Slide

    $1,232.31
    SKU: ATO-LS-3050400
    Linear slide works with 400W servo motor. Stroke 100mm~3050mm for selection, max speed 2000mm/s, belt width 30mm, lead range 40mm, max payload 45kg, rated thrust 204N. Linear guide rail driven by belt, matching motor and sensor are optional.

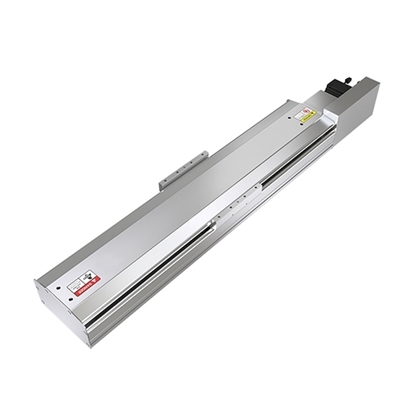

    750W 100~3050mm Belt Driven Linear Slide

    $1,803.38
    SKU: ATO-LS-3050750
    Competitive price linear slide for sale, driven by 50mm width belt. Optional 31 strokes, minimum 100mm, maximum 3050mm, max speed 2000mm/s, motor power 750W, lead range 40mm, max payload 85kg, rated thrust 367N. High speed linear motion system, providing optional servo motor and sensor.
