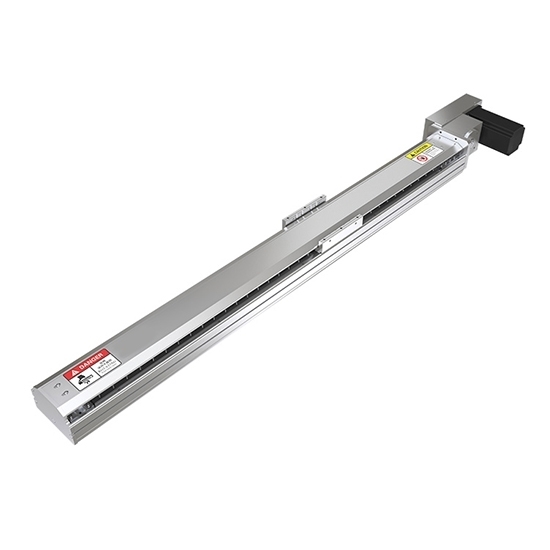

    100W 100~1800mm Belt Driven Linear Slide

    100W 100~1800mm Belt Driven Linear Slide

    4.5 out of 5 based on 2 reviews | Write a review
    $1,022.46
    Linear slide guide rail is driven by belt. Stroke is available in 18 values, minimum 100mm, maximum 1800mm, belt width 20mm, max speed 2000mm/s, motor power 100W, lead range 40mm, max payload 10kg, rated thrust 61N. Compact linear motion system, available for matching servo motor and sensor.
    *
    *
    *
    SKU: ATO-LS-1800100
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The linear motion system integrates linear slide table, guide rail, slide block, motor, sensor and coupling. Optional stroke 100mm~1800mm, maximum speed 2000mm/s, belt width 20mm, lead range 40mm, suitable for 100W servo motor (optional).

    Basic Specification

    Model ATO-GB100
    Stroke 100mm~1800mm (100mm pitch)
    Belt Width 20mm
    Repeatability Accuracy ± 0.04mm
    Lead Range 40mm
    Max. Speed 2000 mm/s
    Max. Payload

    		 Horizontal 10 kg
    Vertical -
    Rated Thrust 61 N
    Matching Servo Motor Power* 100W
    Coupling 12*14 / 12*19 mm
    Home Sensor Outside EE-SX672 (NPN)
    Built-in EE-SX674 (NPN)

    *Note: The servo motor is not included in packing list, if you need one, please contact us.

    Speed Chart

    Model Body Width (mm) Lead Range (mm) Max. Payload (kg) Max. Speed (mm/s) Standard stroke and recommended use of the highest speed (mm/s)
    Horizontal Vertical 200 400 600 800 1000 1200 1400 1600 1800
    ATO-GB100 100 40 10 - 2000 - - - - - - - - 2000

    Note: The highest speed is based on the maximum speed of servo motor (3000 rpm).

    Features

    • The linear slide guide rail adopts synchronous belt transmission, high speed, equipped with servo motor up to 2000mm/s, repeat accuracy ±0.04, especially suitable for high-speed linear motion requirements.
    • The belt driven linear slide is a semi-enclosed linear motion system, which is mainly composed of aluminum body, guide rail, diagonal bearing holder, cover plate, slide block and other components.
    • Linear slide guide rail uses corrosion-resistant, high-strength aluminum alloy as the base. A high-precision linear guide pair is installed in the base. The aluminum alloy motion base is installed on the slide block. The middle part of motion seat is connected with the nut of ball screw.
    • Motor of the motorized linear slide drives the sliding table to reciprocate through the ball screw rod.
    • The diagonal bearing holder ensures the repeatability and positioning accuracy of motion seat. The aluminum alloy cover is installed on the motion base for overall protection.

    Motor Mounting Dimensions (Unit: mm)

    100W liner slide motor mounting dimensions

    Motor Power Motor Size Shaft Diameter
    100W 38mm 8mm

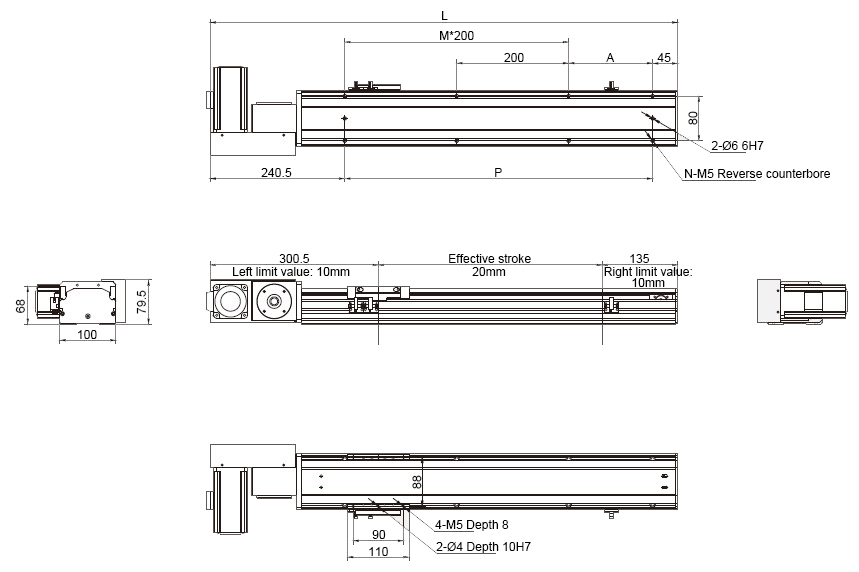

    Dimensions of Belt Driven Linear Slide with Motor Exposed and Left Fold (Unit: mm)

    Dimensions of 100W 1800mm Belt Driven Linear Slide with motor Exposed and Left Fold

    Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800
    L 538 638 738 838 938 1038 1138 1238 1338 1438 1538 1638 1738 1838 1938 2038 2138 2238
    A 50 150 50 150 50 150 50 150 50 150 50 150 50 150 50 150 50 150
    M 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9
    N 6 6 8 8 10 10 12 12 14 14 16 16 18 18 20 20 22 22
    P 250 350 450 550 650 750 850 950 1050 1150 1250 1350 1450 1550 1650 1750 1850 1950
    Weight (kg) 6.80 7.65 8.50 9.34 10.19 11.03 11.88 12.73 13.57 14.42 15.26 16.10 16.94 17.78 18.62 19.46 20.30 21.14

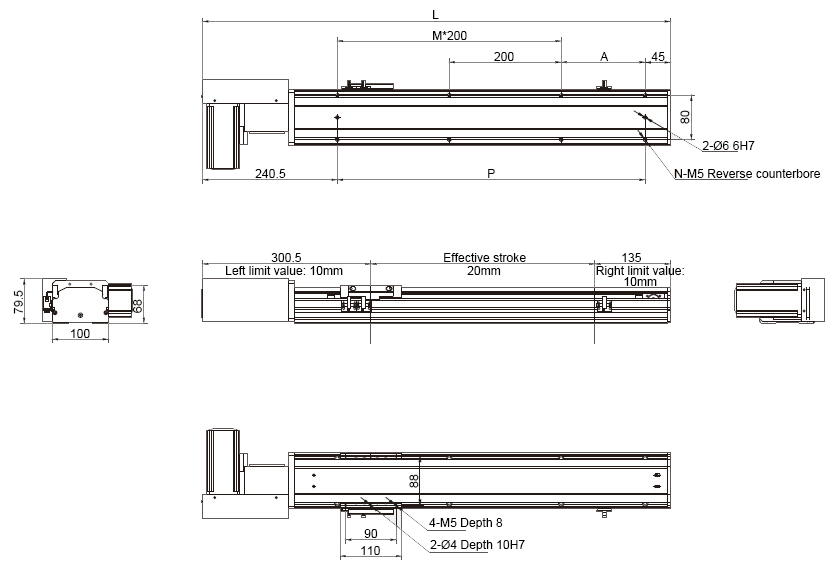

    Dimensions of Belt Driven Linear Slide with Motor Exposed and Right Fold (Unit: mm)

    Dimensions of 100W 1800mm Belt Driven Linear Slide with motor Exposed and Right Fold

    Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800
    L 538 638 738 838 938 1038 1138 1238 1338 1438 1538 1638 1738 1838 1938 2038 2138 2238
    A 50 150 50 150 50 150 50 150 50 150 50 150 50 150 50 150 50 150
    M 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9
    N 6 6 8 8 10 10 12 12 14 14 16 16 18 18 20 20 22 22
    P 250 350 450 550 650 750 850 950 1050 1150 1250 1350 1450 1550 1650 1750 1850 1950
    Weight (kg) 6.80 7.65 8.50 9.34 10.19 11.03 11.88 12.73 13.57 14.42 15.26 16.10 16.94 17.78 18.62 19.46 20.30 21.14

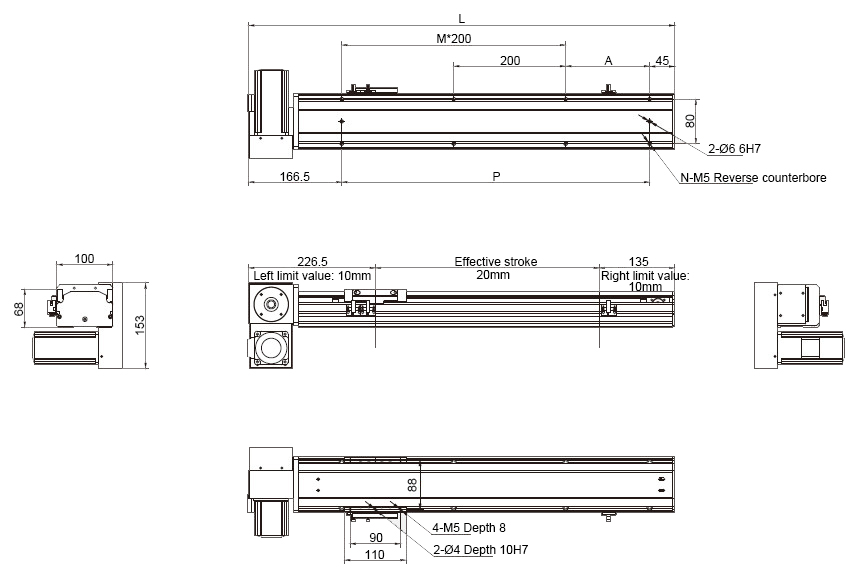

    Dimensions of Belt Driven Linear Slide with Motor Down to the Left (Unit: mm)

    Dimensions of 100W 1800mm Belt Driven Linear Slide with motor Down to the Left

    Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800
    L 464 564 664 764 864 964 1064 1164 1264 1364 1464 1564 1664 1764 1864 1964 2064 2164
    A 50 150 50 150 50 150 50 150 50 150 50 150 50 150 50 150 50 150
    M 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9
    N 6 6 8 8 10 10 12 12 14 14 16 16 18 18 20 20 22 22
    P 250 350 450 550 650 750 850 950 1050 1150 1250 1350 1450 1550 1650 1750 1850 1950
    Weight (kg) 6.80 7.65 8.50 9.34 10.19 11.03 11.88 12.73 13.57 14.42 15.26 16.10 16.94 17.78 18.62 19.46 20.30 21.14

    Dimensions of Belt Driven Linear Slide with Motor Down to the Right (Unit: mm)

    Dimensions of 100W 1800mm Belt Driven Linear Slide with motor Down to the Right

    Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800
    L 464 564 664 764 864 964 1064 1164 1264 1364 1464 1564 1664 1764 1864 1964 2064 2164
    A 50 150 50 150 50 150 50 150 50 150 50 150 50 150 50 150 50 150
    M 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9
    N 6 6 8 8 10 10 12 12 14 14 16 16 18 18 20 20 22 22
    P 250 350 450 550 650 750 850 950 1050 1150 1250 1350 1450 1550 1650 1750 1850 1950
    Weight (kg) 6.80 7.65 8.50 9.34 10.19 11.03 11.88 12.73 13.57 14.42 15.26 16.10 16.94 17.78 18.62 19.46 20.30 21.14

    Dimensions of Belt Driven Linear Slide with with Motor on the Top Left (Unit: mm)

    Dimensions of 100W 1800mm Belt Driven Linear Slide with motor on the Top Left

    Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800
    L 464 564 664 764 864 964 1064 1164 1264 1364 1464 1564 1664 1764 1864 1964 2064 2164
    A 50 150 50 150 50 150 50 150 50 150 50 150 50 150 50 150 50 150
    M 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9
    N 6 6 8 8 10 10 12 12 14 14 16 16 18 18 20 20 22 22
    P 250 350 450 550 650 750 850 950 1050 1150 1250 1350 1450 1550 1650 1750 1850 1950
    Weight (kg) 6.80 7.65 8.50 9.34 10.19 11.03 11.88 12.73 13.57 14.42 15.26 16.10 16.94 17.78 18.62 19.46 20.30 21.14

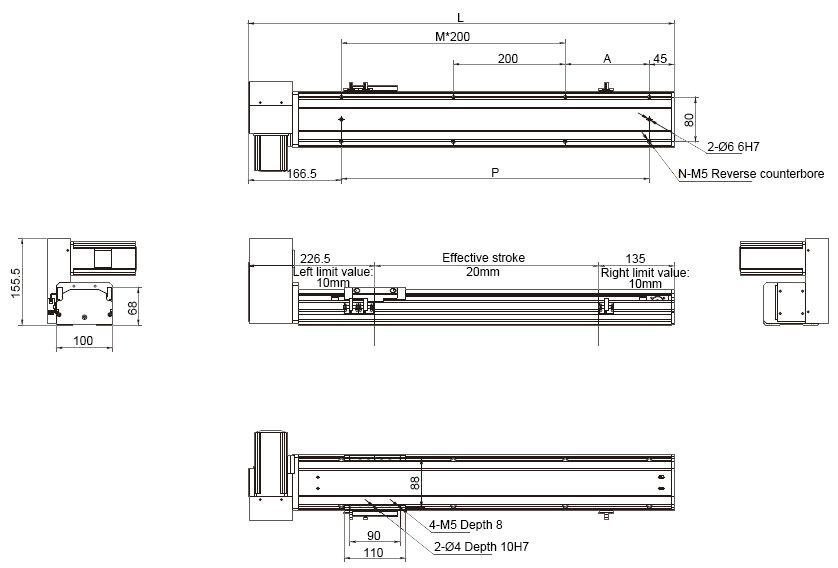

    Dimensions of Belt Driven Linear Slide with Motor on the Top Right (Unit: mm)

    Dimensions of 100W 1800mm Belt Driven Linear Slide with motor on the Top Right

    Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800
    L 464 564 664 764 864 964 1064 1164 1264 1364 1464 1564 1664 1764 1864 1964 2064 2164
    A 50 150 50 150 50 150 50 150 50 150 50 150 50 150 50 150 50 150
    M 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9
    N 6 6 8 8 10 10 12 12 14 14 16 16 18 18 20 20 22 22
    P 250 350 450 550 650 750 850 950 1050 1150 1250 1350 1450 1550 1650 1750 1850 1950
    Weight (kg) 6.80 7.65 8.50 9.34 10.19 11.03 11.88 12.73 13.57 14.42 15.26 16.10 16.94 17.78 18.62 19.46 20.30 21.14
