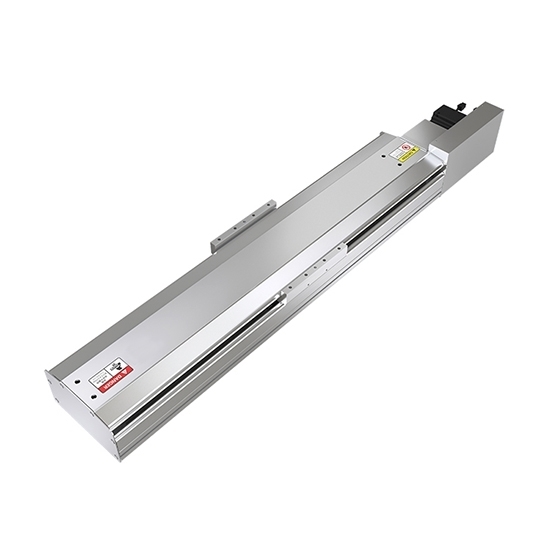

750W 100~3050mm Belt Driven Linear Slide

$1,803.38

Competitive price linear slide for sale, driven by 50mm width belt. Optional 31 strokes, minimum 100mm, maximum 3050mm, max speed 2000mm/s, motor power 750W, lead range 40mm, max payload 85kg, rated thrust 367N. High speed linear motion system, providing optional servo motor and sensor.

Stroke *
Motor Position *
Sensor Switch *
Servo Motor

SKU: ATO-LS-3050750

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Belt Driven Linear Slide Dimensions

Belt driven linear slide system for linear motion, which consists of linear guide rail, slide block, motor, sensor and coupling form the linear motion system. 31 values of stroke for selection, 100mm~3050mm, maximum speed 2000mm/s, belt width 50mm, lead range 40mm.

Basic Specification

Model		ATO-GB210
Stroke		100mm~3050mm (100mm pitch)
Belt Width		50mm
Repeatability Accuracy		± 0.04mm
Lead Range		40mm
Max. Speed		2000 mm/s
Max. Payload	Horizontal	85 kg
	Vertical	-
Rated Thrust		367 N
Matching Servo Motor Power*		750W
Home Sensor	Outside	EE-SX672 (NPN)
	Built-in	EE-SX674 (NPN)

*Note: The servo motor is not included in packing list, if you need one, please contact us.

Speed Chart

Model	Body Width (mm)	lead Range (mm)	Max. Payload (kg)		Max. Speed (mm/s)	Standard stroke and recommended use of the highest speed (mm/s)
Model	Body Width (mm)	lead Range (mm)	Horizontal	Vertical	Max. Speed (mm/s)	200	400	600	800	1000	1200	1400	1600	1800	2000	2200	2400	2600	2800	3000	3050
ATO-GB210	210	40	85	-	2000	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	2000

Note: The highest speed is based on the maximum speed of servo motor (3000 rpm).

Features

The linear slide guide rail adopts synchronous belt transmission, high speed, equipped with servo motor up to 2000mm/s, repeat accuracy ±0.04, especially suitable for high-speed linear motion requirements.
The belt driven linear slide is a semi-enclosed linear motion system, which is mainly composed of aluminum body, guide rail, diagonal bearing holder, cover plate, slide block and other components.
Linear slide guide rail uses corrosion-resistant, high-strength aluminum alloy as the base. A high-precision linear guide pair is installed in the base. The aluminum alloy motion base is installed on the slide block. The middle part of motion seat is connected with the nut of ball screw.
Motor of the motorized linear slide drives the sliding table to reciprocate through the ball screw rod.
The diagonal bearing holder ensures the repeatability and positioning accuracy of motion seat. The aluminum alloy cover is installed on the motion base for overall protection.

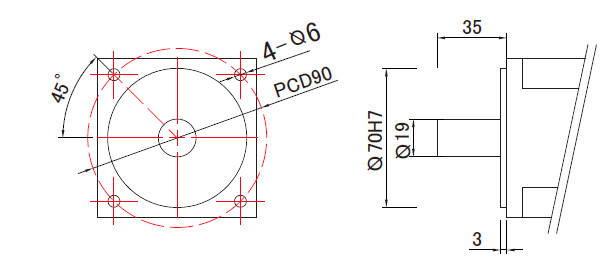

Motor Mounting Dimensions (Unit: mm)

Motor Power	Motor Size	Shaft Diameter
750W	80mm	19mm

Tips: Preload standard reference for belt driven linear slide.

Selecting proper preload from table below to make the belt driven linear slide to adapt specific applications and conditions.

Preload Level	Conditions	Applications
Light Preload	The loading direction is fixed, vibration and impact are light, and two axes are applied in parallel. High precision is not required, and the low frictional resistance is needed.	Welding machine, binding machine, auto packing machine, XY axis of ordinary industrial machine, material handling equipment.
Medium Preload	Overhang application with a moment load. Applied in one-axis configuration. The need of light preload and high precision.	Z axis of industrial machines, EDM, precision XY table, PC board drilling machine, industrial robot, NC lathe, measuring equipment, grinding machine, auto painting machine.
Heavy Preload	Machine is subjected to vibration and impact, and high rigidity is required. Application of heavy load or heavy cutting.	Machine center, NC lathe, grinding machine, milling machine, Z axis of boring machine and machine tools.

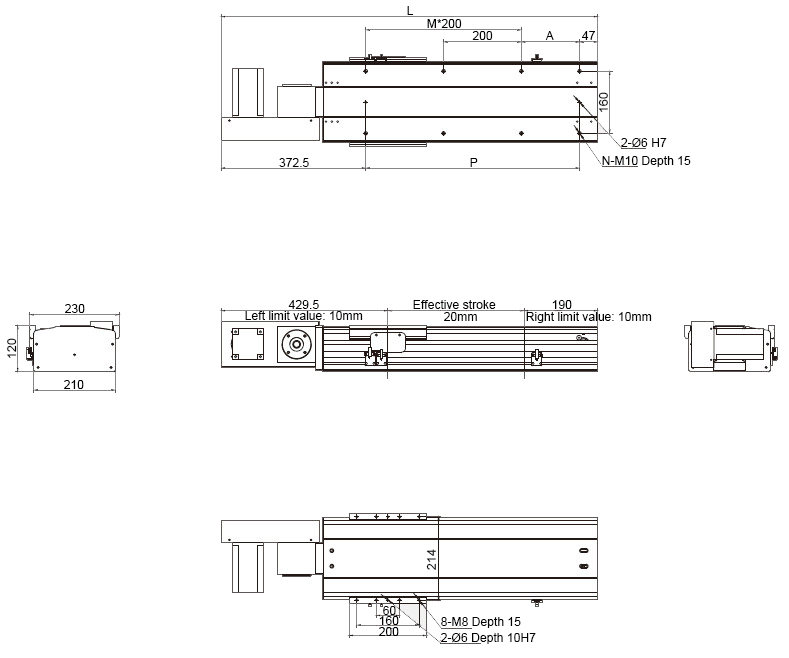

Dimensions of Belt Driven Linear Slide with Motor Exposed and Left Fold (Unit: mm)

Stroke	100	200	300	400	500	600	700	800	900	1000	1100	1200	1300	1400	1500
L	720	820	920	1020	1120	1220	1320	1420	1520	1620	1720	1820	1920	2020	2120
A	100	200	100	200	100	200	100	200	100	200	100	200	100	200	100
M	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8
N	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20
P	300	400	500	600	700	800	900	1000	1100	1200	1300	1400	1500	1600	1700
Weight (kg)	30	32.5	34.8	37.2	39.6	42	44.5	46.8	49.5	51.6	54	56.5	58.8	61.5	63.6

Stroke	1600	1700	1800	1900	2000	2100	2200	2300	2400	2500	2600	2700	2800	2900	3000	3050
L	2220	2320	2420	2520	2620	2720	2820	2920	3020	3120	3220	3320	3420	3520	3620	3670
A	200	100	200	100	200	100	200	100	200	100	200	100	200	100	200	50
M	8	9	9	10	10	11	11	12	12	13	13	14	14	15	15	16
N	20	22	22	24	24	26	26	28	28	30	30	32	32	34	34	36
P	1800	1900	2000	2100	2200	2300	2400	2500	2600	2700	2800	2900	3000	3100	3200	3250
Weight (kg)	66	68.5	70.8	73.5	75.6	78	80.5	82.8	85.5	87.6	90	92.5	94.8	97.5	99.6	100.8

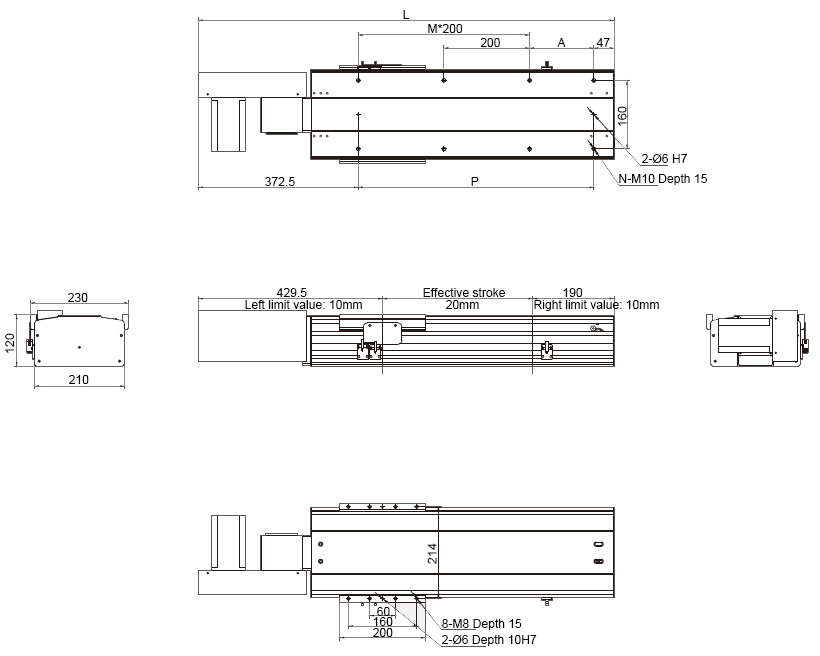

Dimensions of Belt Driven Linear Slide with Motor Exposed and Right Fold (Unit: mm)

Stroke	100	200	300	400	500	600	700	800	900	1000	1100	1200	1300	1400	1500
L	720	820	920	1020	1120	1220	1320	1420	1520	1620	1720	1820	1920	2020	2120
A	100	200	100	200	100	200	100	200	100	200	100	200	100	200	100
M	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8
N	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20
P	300	400	500	600	700	800	900	1000	1100	1200	1300	1400	1500	1600	1700
Weight (kg)	30	32.5	34.8	37.2	39.6	42	44.5	46.8	49.5	51.6	54	56.5	58.8	61.5	63.6

Stroke	1600	1700	1800	1900	2000	2100	2200	2300	2400	2500	2600	2700	2800	2900	3000	3050
L	2220	2320	2420	2520	2620	2720	2820	2920	3020	3120	3220	3320	3420	3520	3620	3670
A	200	100	200	100	200	100	200	100	200	100	200	100	200	100	200	50
M	8	9	9	10	10	11	11	12	12	13	13	14	14	15	15	16
N	20	22	22	24	24	26	26	28	28	30	30	32	32	34	34	36
P	1800	1900	2000	2100	2200	2300	2400	2500	2600	2700	2800	2900	3000	3100	3200	3250
Weight (kg)	66	68.5	70.8	73.5	75.6	78	80.5	82.8	85.5	87.6	90	92.5	94.8	97.5	99.6	100.8

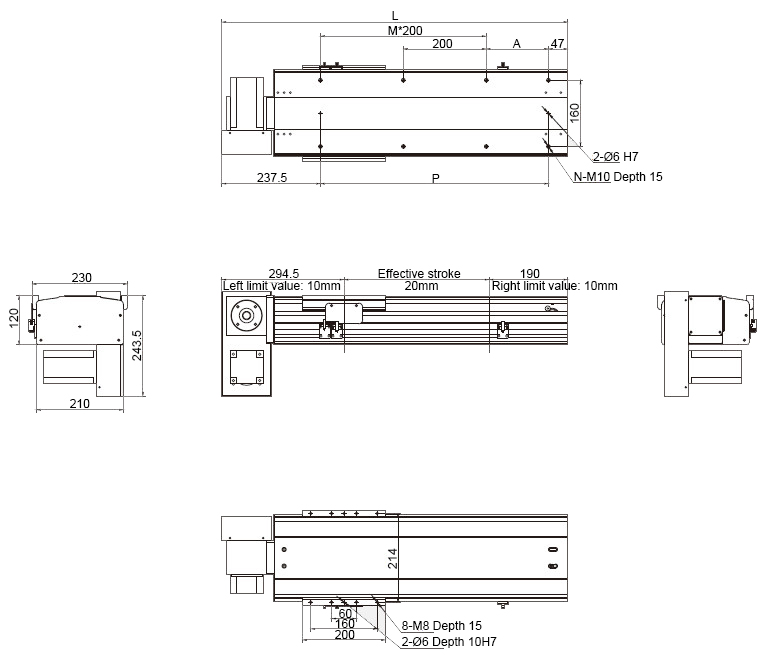

Dimensions of Belt Driven Linear Slide with Motor Down to the Left (Unit: mm)

Stroke	100	200	300	400	500	600	700	800	900	1000	1100	1200	1300	1400	1500
L	585	685	785	885	985	1085	1185	1285	1385	1485	1585	1685	1785	1885	1985
A	100	200	100	200	100	200	100	200	100	200	100	200	100	200	100
M	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8
N	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20
P	300	400	500	600	700	800	900	1000	1100	1200	1300	1400	1500	1600	1700
Weight (kg)	30	32.5	34.8	37.2	39.6	42	44.5	46.8	49.5	51.6	54	56.5	58.8	61.5	63.6

Stroke	1600	1700	1800	1900	2000	2100	2200	2300	2400	2500	2600	2700	2800	2900	3000	3050
L	2085	2185	2285	2385	2485	2585	2685	2785	2885	2985	3085	3185	3285	3385	3485	3535
A	200	100	200	100	200	100	200	100	200	100	200	100	200	100	200	50
M	8	9	9	10	10	11	11	12	12	13	13	14	14	15	15	16
N	20	22	22	24	24	26	26	28	28	30	30	32	32	34	34	36
P	1800	1900	2000	2100	2200	2300	2400	2500	2600	2700	2800	2900	3000	3100	3200	3250
Weight (kg)	66	68.5	70.8	73.5	75.6	78	80.5	82.8	85.5	87.6	90	92.5	94.8	97.5	99.6	100.8

Dimensions of Belt Driven Linear Slide with Motor Down to the Right (Unit: mm)

Stroke	100	200	300	400	500	600	700	800	900	1000	1100	1200	1300	1400	1500
L	585	685	785	885	985	1085	1185	1285	1385	1485	1585	1685	1785	1885	1985
A	100	200	100	200	100	200	100	200	100	200	100	200	100	200	100
M	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8
N	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20
P	300	400	500	600	700	800	900	1000	1100	1200	1300	1400	1500	1600	1700
Weight (kg)	30	32.5	34.8	37.2	39.6	42	44.5	46.8	49.5	51.6	54	56.5	58.8	61.5	63.6

Stroke	1600	1700	1800	1900	2000	2100	2200	2300	2400	2500	2600	2700	2800	2900	3000	3050
L	2085	2185	2285	2385	2485	2585	2685	2785	2885	2985	3085	3185	3285	3385	3485	3535
A	200	100	200	100	200	100	200	100	200	100	200	100	200	100	200	50
M	8	9	9	10	10	11	11	12	12	13	13	14	14	15	15	16
N	20	22	22	24	24	26	26	28	28	30	30	32	32	34	34	36
P	1800	1900	2000	2100	2200	2300	2400	2500	2600	2700	2800	2900	3000	3100	3200	3250
Weight (kg)	66	68.5	70.8	73.5	75.6	78	80.5	82.8	85.5	87.6	90	92.5	94.8	97.5	99.6	100.8

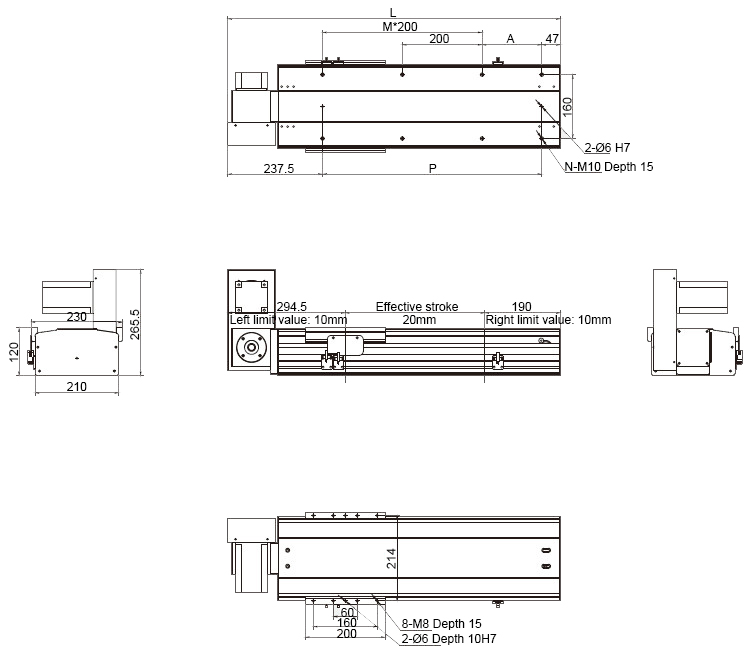

Dimensions of Belt Driven Linear Slide with with Motor on the Top Left (Unit: mm)

Stroke	100	200	300	400	500	600	700	800	900	1000	1100	1200	1300	1400	1500
L	585	685	785	885	985	1085	1185	1285	1385	1485	1585	1685	1785	1885	1985
A	100	200	100	200	100	200	100	200	100	200	100	200	100	200	100
M	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8
N	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20
P	300	400	500	600	700	800	900	1000	1100	1200	1300	1400	1500	1600	1700
Weight (kg)	30	32.5	34.8	37.2	39.6	42	44.5	46.8	49.5	51.6	54	56.5	58.8	61.5	63.6

Stroke	1600	1700	1800	1900	2000	2100	2200	2300	2400	2500	2600	2700	2800	2900	3000	3050
L	2085	2185	2285	2385	2485	2585	2685	2785	2885	2985	3085	3185	3285	3385	3485	3535
A	200	100	200	100	200	100	200	100	200	100	200	100	200	100	200	50
M	8	9	9	10	10	11	11	12	12	13	13	14	14	15	15	16
N	20	22	22	24	24	26	26	28	28	30	30	32	32	34	34	36
P	1800	1900	2000	2100	2200	2300	2400	2500	2600	2700	2800	2900	3000	3100	3200	3250
Weight (kg)	66	68.5	70.8	73.5	75.6	78	80.5	82.8	85.5	87.6	90	92.5	94.8	97.5	99.6	100.8

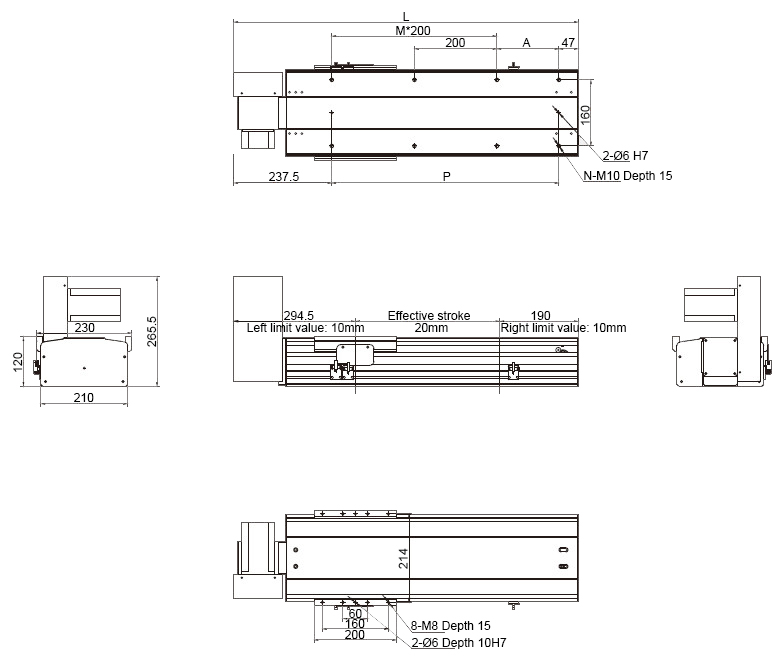

Dimensions of Belt Driven Linear Slide with Motor on the Top Right (Unit: mm)

Stroke	100	200	300	400	500	600	700	800	900	1000	1100	1200	1300	1400	1500
L	585	685	785	885	985	1085	1185	1285	1385	1485	1585	1685	1785	1885	1985
A	100	200	100	200	100	200	100	200	100	200	100	200	100	200	100
M	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8
N	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20
P	300	400	500	600	700	800	900	1000	1100	1200	1300	1400	1500	1600	1700
Weight (kg)	30	32.5	34.8	37.2	39.6	42	44.5	46.8	49.5	51.6	54	56.5	58.8	61.5	63.6

Stroke	1600	1700	1800	1900	2000	2100	2200	2300	2400	2500	2600	2700	2800	2900	3000	3050
L	2085	2185	2285	2385	2485	2585	2685	2785	2885	2985	3085	3185	3285	3385	3485	3535
A	200	100	200	100	200	100	200	100	200	100	200	100	200	100	200	50
M	8	9	9	10	10	11	11	12	12	13	13	14	14	15	15	16
N	20	22	22	24	24	26	26	28	28	30	30	32	32	34	34	36
P	1800	1900	2000	2100	2200	2300	2400	2500	2600	2700	2800	2900	3000	3100	3200	3250
Weight (kg)	66	68.5	70.8	73.5	75.6	78	80.5	82.8	85.5	87.6	90	92.5	94.8	97.5	99.6	100.8
