400W 100~3050mm Belt Driven Linear Slide

$1,232.31

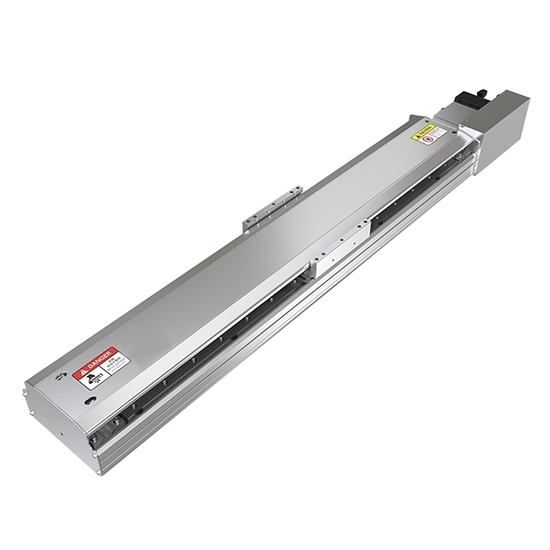

Linear slide works with 400W servo motor. Stroke 100mm~3050mm for selection, max speed 2000mm/s, belt width 30mm, lead range 40mm, max payload 45kg, rated thrust 204N. Linear guide rail driven by belt, matching motor and sensor are optional.

Stroke *
Motor Position *
Sensor Switch *
Servo Motor

SKU: ATO-LS-3050400

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Belt Driven Linear Slide Dimensions

Belt driven linear slide guide rail, slide block, motor, sensor and coupling form the linear motion system. 31 values of stroke for selection, from 100mm to 3050mm, maximum speed 2000mm/s, belt width 30mm, lead range 40mm.

Basic Specification

Model		ATO-GB170
Stroke		100mm~3050mm (100mm pitch)
Belt Width		30mm
Repeatability Accuracy		± 0.04mm
Lead Range		40mm
Max. Speed		2000 mm/s
Max. Payload	Horizontal	45 kg
	Vertical	-
Rated Thrust		204 N
Matching Servo Motor Power*		400W
Home Sensor	Outside	EE-SX672 (NPN)
	Built-in	EE-SX674 (NPN)

*Note: The servo motor is not included in packing list, if you need one, please contact us.

Speed Chart

Model	Body Width (mm)	lead Range (mm)	Max. Payload (kg)		Max. Speed (mm/s)	Standard stroke and recommended use of the highest speed (mm/s)
Model	Body Width (mm)	lead Range (mm)	Horizontal	Vertical	Max. Speed (mm/s)	200	400	600	800	1000	1200	1400	1600	1800	2000	2200	2400	2600	2800	3000	3050
ATO-GB170	170	40	45	-	2000	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	2000

Note: The highest speed is based on the maximum speed of servo motor (3000 rpm).

Features

The linear slide guide rail adopts synchronous belt transmission, high speed, equipped with servo motor up to 2000mm/s, repeat accuracy ±0.04, especially suitable for high-speed linear motion requirements.
The belt driven linear slide is a semi-enclosed linear motion system, which is mainly composed of aluminum body, guide rail, diagonal bearing holder, cover plate, slide block and other components.
Linear slide guide rail uses corrosion-resistant, high-strength aluminum alloy as the base. A high-precision linear guide pair is installed in the base. The aluminum alloy motion base is installed on the slide block. The middle part of motion seat is connected with the nut of ball screw.
Motor of the motorized linear slide drives the sliding table to reciprocate through the ball screw rod.
The diagonal bearing holder ensures the repeatability and positioning accuracy of motion seat. The aluminum alloy cover is installed on the motion base for overall protection.

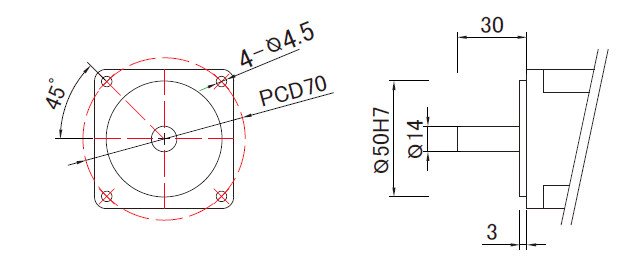

Motor Mounting Dimensions (Unit: mm)

400W linear slide motor mounting dimensions

Motor Power	Motor Size	Shaft Diameter
400W	60mm	14mm

Tips: How to solve the heating problem of 400W belt driven linear slide?

Generally, the 400W belt driven linear slide will generate heat more or less during operation. For example, the heating during high-speed reciprocating linear motion is normal. Stop the linear slide for a few minutes and restart it.

In addition to normal heating, 400W belt driven linear slide will also have abnormal heating. For example, water droplets on the 400W belt driven linear slide, it will vaporize immediately, and there will be tremble at the same time. If this situation is not dealt with in time, the belt driven linear slide is likely to be damaged due to heat, or wear the belt and guide rails. This will affect the service life of the belt driven linear slide. This heating is generally caused by the slider, that is, the slider is the root cause of this abnormal heating phenomenon. At this time, users can check whether the slider part is malfunctioning, or directly replace the slider.

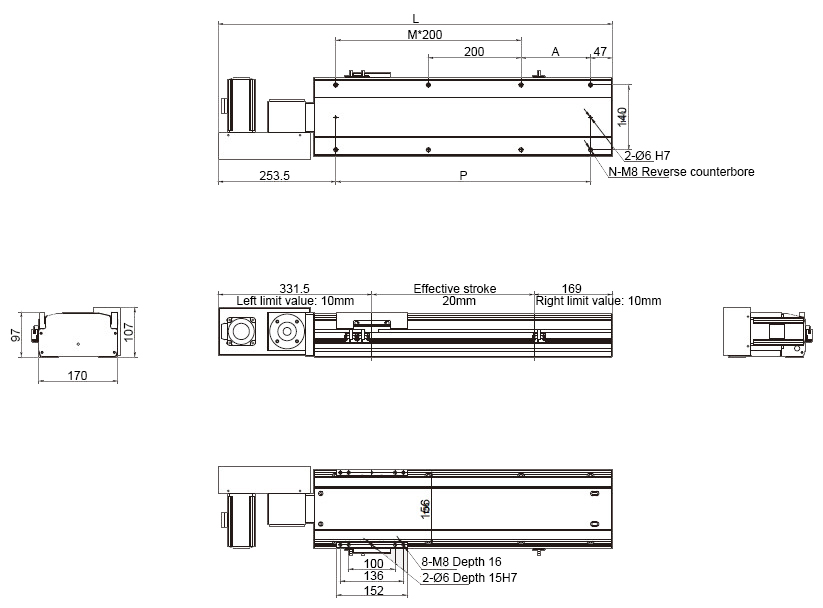

Dimensions of Belt Driven Linear Slide with Motor Exposed and Left Fold (Unit: mm)

Stroke	100	200	300	400	500	600	700	800	900	1000	1100	1200	1300	1400	1500
L	601	701	801	901	1001	1101	1201	1301	1401	1501	1601	1701	1801	1901	2001
A	100	200	100	200	100	200	100	200	100	200	100	200	100	200	100
M	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8
N	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20
P	300	400	500	600	700	800	900	1000	1100	1200	1300	1400	1500	1600	1700
Weight (kg)	12	14.6	16.1	17.7	19.2	20.8	22.5	23.9	25.5	27	28.6	30.5	31.8	33.5	35

Stroke	1600	1700	1800	1900	2000	2100	2200	2300	2400	2500	2600	2700	2800	2900	3000	3050
L	2101	2201	2301	2401	2501	2601	2701	2801	2901	3001	3101	3201	3301	3401	3501	3551
A	200	100	200	100	200	100	200	100	200	100	200	100	200	100	200	50
M	8	9	9	10	10	11	11	12	12	13	13	14	14	15	15	16
N	20	22	22	24	24	26	26	28	28	30	30	32	32	34	34	36
P	1800	1900	2000	2100	2200	2300	2400	2500	2600	2700	2800	2900	3000	3100	3200	3250
Weight (kg)	36.6	38.2	39.8	41.5	43	44.6	46.2	47.8	49.5	51	52.6	54.2	55.8	57.5	59	59.8

Dimensions of Belt Driven Linear Slide with Motor Exposed and Right Fold (Unit: mm)

Stroke	100	200	300	400	500	600	700	800	900	1000	1100	1200	1300	1400	1500
L	601	701	801	901	1001	1101	1201	1301	1401	1501	1601	1701	1801	1901	2001
A	100	200	100	200	100	200	100	200	100	200	100	200	100	200	100
M	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8
N	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20
P	300	400	500	600	700	800	900	1000	1100	1200	1300	1400	1500	1600	1700
Weight (kg)	12	14.6	16.1	17.7	19.2	20.8	22.5	23.9	25.5	27	28.6	30.5	31.8	33.5	35

Stroke	1600	1700	1800	1900	2000	2100	2200	2300	2400	2500	2600	2700	2800	2900	3000	3050
L	2101	2201	2301	2401	2501	2601	2701	2801	2901	3001	3101	3201	3301	3401	3501	3551
A	200	100	200	100	200	100	200	100	200	100	200	100	200	100	200	50
M	8	9	9	10	10	11	11	12	12	13	13	14	14	15	15	16
N	20	22	22	24	24	26	26	28	28	30	30	32	32	34	34	36
P	1800	1900	2000	2100	2200	2300	2400	2500	2600	2700	2800	2900	3000	3100	3200	3250
Weight (kg)	36.6	38.2	39.8	41.5	43	44.6	46.2	47.8	49.5	51	52.6	54.2	55.8	57.5	59	59.8

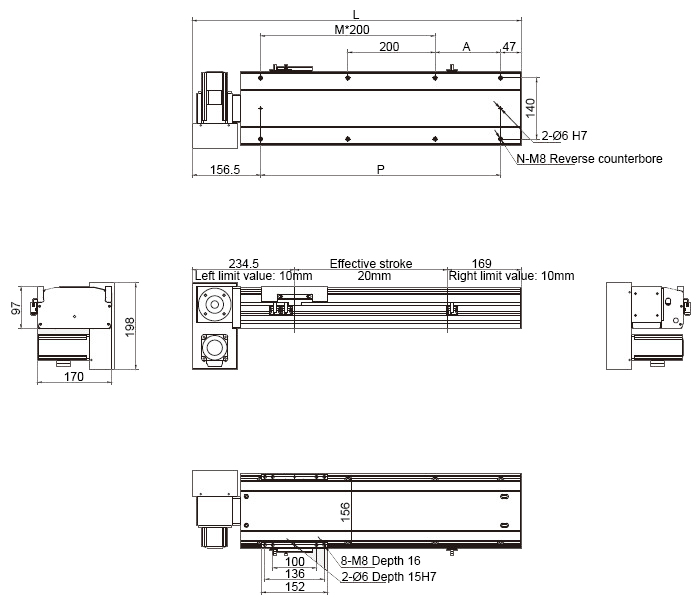

Dimensions of Belt Driven Linear Slide with Motor Down to the Left (Unit: mm)

Stroke	100	200	300	400	500	600	700	800	900	1000	1100	1200	1300	1400	1500
L	504	604	704	804	904	1004	1104	1204	1304	1404	1504	1604	1704	1804	1904
A	100	200	100	200	100	200	100	200	100	200	100	200	100	200	100
M	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8
N	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20
P	300	400	500	600	700	800	900	1000	1100	1200	1300	1400	1500	1600	1700
Weight (kg)	12	14.6	16.1	17.7	19.2	20.8	22.5	23.9	25.5	27	28.6	30.5	31.8	33.5	35

Stroke	1600	1700	1800	1900	2000	2100	2200	2300	2400	2500	2600	2700	2800	2900	3000	3050
L	2004	2104	2204	2304	2404	2504	2604	2704	2804	2904	3004	3104	3204	3304	3404	3454
A	200	100	200	100	200	100	200	100	200	100	200	100	200	100	200	50
M	8	9	9	10	10	11	11	12	12	13	13	14	14	15	15	16
N	20	22	22	24	24	26	26	28	28	30	30	32	32	34	34	36
P	1800	1900	2000	2100	2200	2300	2400	2500	2600	2700	2800	2900	3000	3100	3200	3250
Weight (kg)	36.6	38.2	39.8	41.5	43	44.6	46.2	47.8	49.5	51	52.6	54.2	55.8	57.5	59	59.8

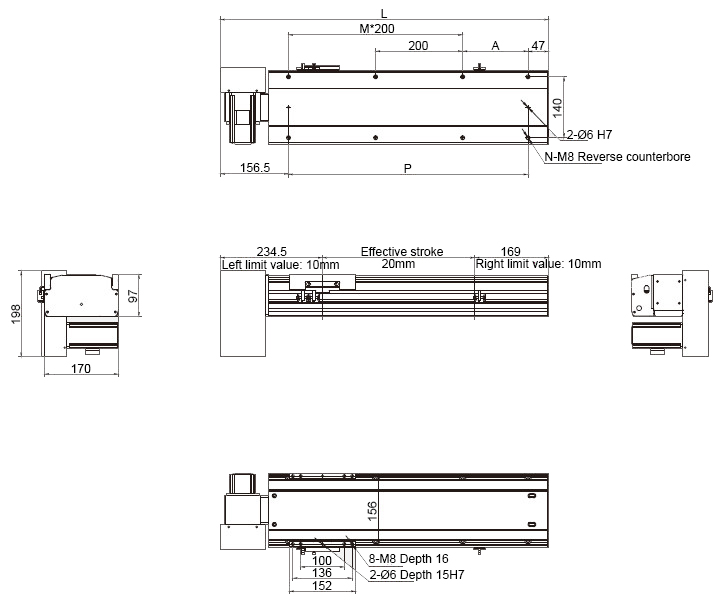

Dimensions of Belt Driven Linear Slide with Motor Down to the Right (Unit: mm)

Stroke	100	200	300	400	500	600	700	800	900	1000	1100	1200	1300	1400	1500
L	504	604	704	804	904	1004	1104	1204	1304	1404	1504	1604	1704	1804	1904
A	100	200	100	200	100	200	100	200	100	200	100	200	100	200	100
M	1	1	2	2	3	3	4	4	5	5	6	6	7	7	8
N	6	6	8	8	10	10	12	12	14	14	16	16	18	18	20
P	300	400	500	600	700	800	900	1000	1100	1200	1300	1400	1500	1600	1700
Weight (kg)	12	14.6	16.1	17.7	19.2	20.8	22.5	23.9	25.5	27	28.6	30.5	31.8	33.5	35

Stroke	1600	1700	1800	1900	2000	2100	2200	2300	2400	2500	2600	2700	2800	2900	3000	3050
L	2004	2104	2204	2304	2404	2504	2604	2704	2804	2904	3004	3104	3204	3304	3404	3454
A	200	100	200	100	200	100	200	100	200	100	200	100	200	100	200	50
M	8	9	9	10	10	11	11	12	12	13	13	14	14	15	15	16
N	20	22	22	24	24	26	26	28	28	30	30	32	32	34	34	36
P	1800	1900	2000	2100	2200	2300	2400	2500	2600	2700	2800	2900	3000	3100	3200	3250
Weight (kg)	36.6	38.2	39.8	41.5	43	44.6	46.2	47.8	49.5	51	52.6	54.2	55.8	57.5	59	59.8

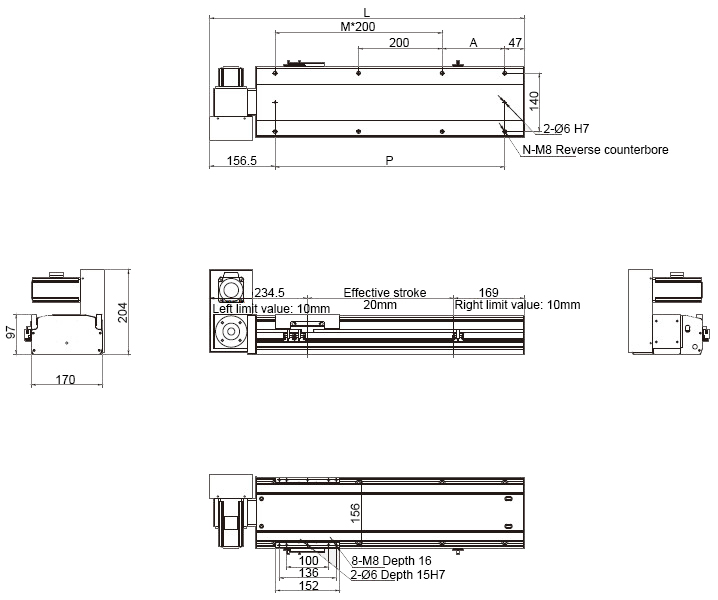

Dimensions of Belt Driven Linear Slide with with Motor on the Top Left (Unit: mm)
