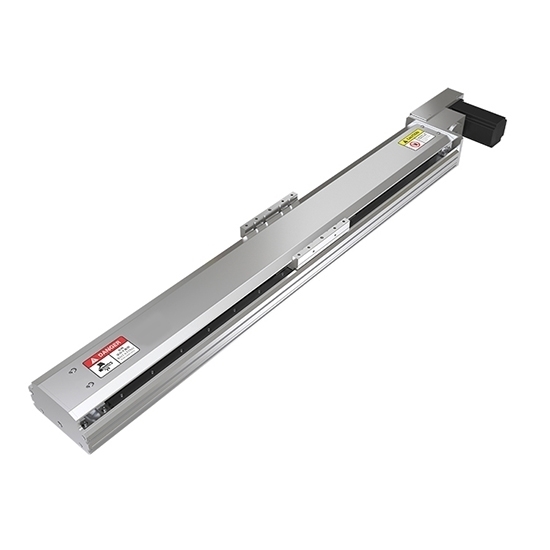

    200W 100~3050mm Belt Driven Linear Slide

    200W 100~3050mm Belt Driven Linear Slide

    5 out of 5 based on 1 reviews | Write a review
    $1,103.85
    Affordable price linear slide rail for sale, driven by 23mm width belt. 31 values of stroke for selection, minimum 100mm, maximum 3050mm, max speed 2000mm/s, rated power 200W, lead range 40mm, max payload 25kg, rated thrust 100N. Linear motion guide rail system, powered by servo motor, optional conformation is provided.
    *
    *
    *
    SKU: ATO-LS-3050200
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The linear slide is a linear motion system including linear slide table, guide rail, slide block, motor, sensor and coupling. Stroke 100mm~3050mm for selection, max speed 2000mm/s, belt width 23mm, lead range 40mm, suitable 200W servo motor is available for configuration.

    Basic Specification

    Model ATO-GB135
    Stroke 100mm~3050mm (100mm pitch)
    Belt Width 23mm
    Repeatability Accuracy ± 0.04mm
    Lead Range 40mm
    Max. Speed 2000 mm/s
    Max. Payload

    		 Horizontal 25 kg
    Vertical -
    Rated Thrust 100 N
    Matching Servo Motor Power* 200W
    Home Sensor Outside EE-SX672 (NPN)
    Built-in EE-SX674 (NPN)

    *Note: The servo motor is not included in packing list, if you need one, please contact us.

    Speed Chart

    Model Body Width (mm) lead Range (mm) Max. Payload (kg) Max. Speed (mm/s) Standard stroke and recommended use of the highest speed (mm/s)
    Horizontal Vertical 200 400 600 800 1000 1200 1400 1600 1800 2000 2200 2400 2600 2800 3000 3050
    ATO-GB135 136 40 25 - 2000 - - - - - - - - - - - - - - - 2000

    Note: The highest speed is based on the maximum speed of servo motor (3000 rpm).

    Features

    • The linear slide guide rail adopts synchronous belt transmission, high speed, equipped with servo motor up to 2000mm/s, repeat accuracy ±0.04, especially suitable for high-speed linear motion requirements.
    • The belt driven linear slide is a semi-enclosed linear motion system, which is mainly composed of aluminum body, guide rail, diagonal bearing holder, cover plate, slide block and other components.
    • Linear slide guide rail uses corrosion-resistant, high-strength aluminum alloy as the base. A high-precision linear guide pair is installed in the base. The aluminum alloy motion base is installed on the slide block. The middle part of motion seat is connected with the nut of ball screw.
    • Motor of the motorized linear slide drives the sliding table to reciprocate through the ball screw rod.
    • The diagonal bearing holder ensures the repeatability and positioning accuracy of motion seat. The aluminum alloy cover is installed on the motion base for overall protection.

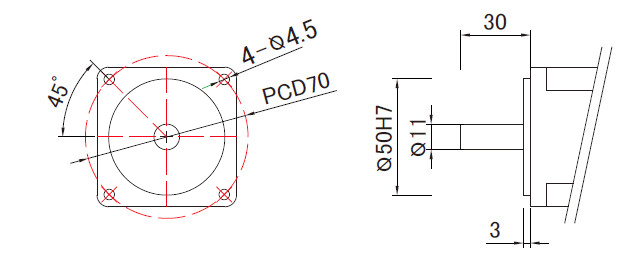

    Motor Mounting Dimensions (Unit: mm)

    200W linear slide motor mounting dimensions

    Motor Power Motor Size Shaft Diameter
    200W 60mm 11mm

    Tips: The transmission difference between ball screw driven and belt driven of linear slide.

    1. Ball screw driven linear slide. The ball screw is driven to roll by the motor through coupling or synchronous belt wheel, thereby pushing the slider fixed on the linear guide to move forward and backward.
    2. Ball screw has the characteristics of high positioning precision, low friction, high rigidity, and strong load capacity.
    3. Speed of the ball screw depends on the speed of motor and the lead of screw. At the same motor output speed, the larger the screw lead, the faster the linear slide moves.
    4. Belt driven linear slide: The automatic wheel of synchronous belt is driven by the motor to roll, so that the belt drives the slider on the linear guide to move back and forth. Belt driven linear slide has the characteristics of low noise and fast moving speed. Its speed can generally be higher than that of a ball screw. But the positioning accuracy of belt driven linear slide is lower than that of ball screw.

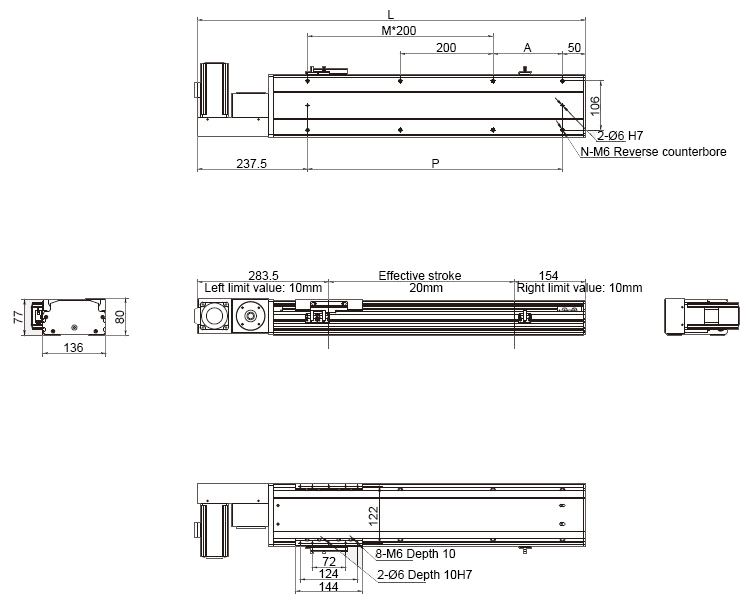

    Dimensions of Belt Driven Linear Slide with Motor Exposed and Left Fold (Unit: mm)

    Dimensions of 200W 3050mm Belt Driven Linear Slide with motor Exposed and Left Fold

    Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500
    L 538 638 738 838 938 1038 1138 1238 1338 1438 1538 1638 1738 1838 1938
    A 50 150 50 150 50 150 50 150 50 150 50 150 50 150 50
    M 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8
    N 6 6 8 8 10 10 12 12 14 14 16 16 18 18 20
    P 250 350 450 550 650 750 850 950 1050 1150 1250 1350 1450 1550 1650
    Weight (kg) 8.6 9.5 10.5 11.5 12.5 13.5 14.5 15.5 16.5 17.5 18.5 19.7 20.9 22.1 23.5
    Stroke 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500 2600 2700 2800 2900 3000 3050
    L 2038 2138 2238 2338 2438 2538 2638 2738 2838 2938 3038 3138 3238 3338 3438 3488
    A 150 50 150 50 150 50 150 50 150 50 150 50 150 50 150 200
    M 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 15
    N 20 22 22 24 24 26 26 28 28 30 30 32 32 34 34 34
    P 1750 1850 1950 2050 2150 2250 2350 2450 2550 2650 2750 2850 2950 3050 3150 3200
    Weight (kg) 24.5 25.7 26.9 28.1 29.5 30.5 31.7 32.9 34.1 35.5 36.5 37.7 38.9 40.1 41.5 41.9

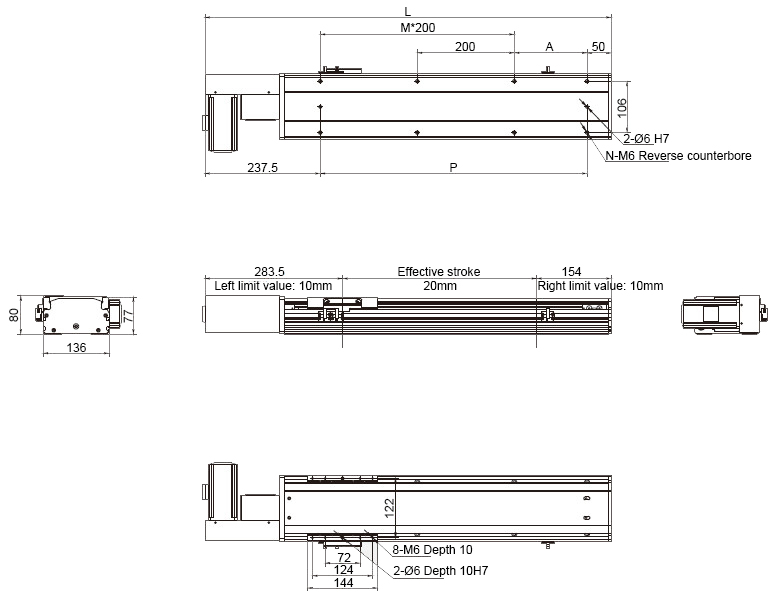

    Dimensions of Belt Driven Linear Slide with Motor Exposed and Right Fold (Unit: mm)

    Dimensions of 200W 3050mm Belt Driven Linear Slide with motor Exposed and Right Fold

    Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500
    L 538 638 738 838 938 1038 1138 1238 1338 1438 1538 1638 1738 1838 1938
    A 50 150 50 150 50 150 50 150 50 150 50 150 50 150 50
    M 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8
    N 6 6 8 8 10 10 12 12 14 14 16 16 18 18 20
    P 250 350 450 550 650 750 850 950 1050 1150 1250 1350 1450 1550 1650
    Weight (kg) 8.6 9.5 10.5 11.5 12.5 13.5 14.5 15.5 16.5 17.5 18.5 19.7 20.9 22.1 23.5
    Stroke 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500 2600 2700 2800 2900 3000 3050
    L 2038 2138 2238 2338 2438 2538 2638 2738 2838 2938 3038 3138 3238 3338 3438 3488
    A 150 50 150 50 150 50 150 50 150 50 150 50 150 50 150 200
    M 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 15
    N 20 22 22 24 24 26 26 28 28 30 30 32 32 34 34 34
    P 1750 1850 1950 2050 2150 2250 2350 2450 2550 2650 2750 2850 2950 3050 3150 3200
    Weight (kg) 24.5 25.7 26.9 28.1 29.5 30.5 31.7 32.9 34.1 35.5 36.5 37.7 38.9 40.1 41.5 41.9

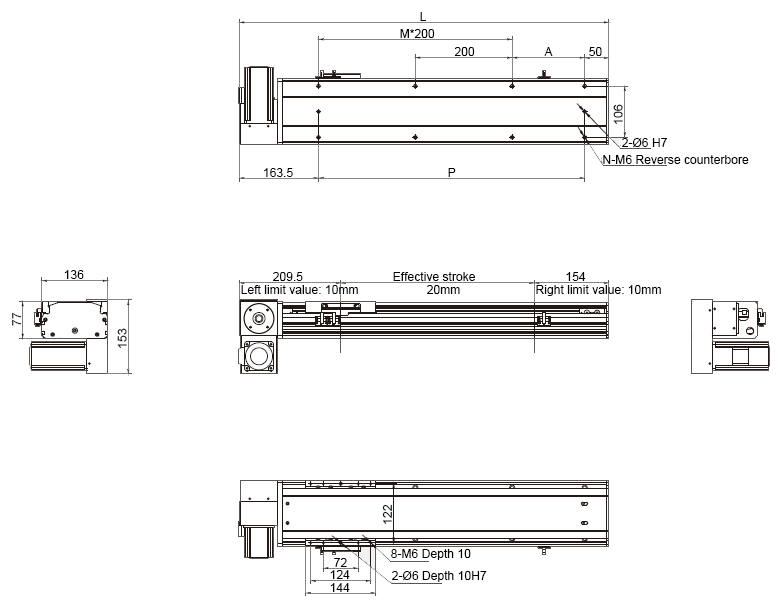

    Dimensions of Belt Driven Linear Slide with Motor Down to the Left (Unit: mm)

    Dimensions of 200W 3050mm Belt Driven Linear Slide with motor Down to the Left

    Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500
    L 464 564 664 764 864 964 1064 1164 1264 1364 1464 1564 1664 1764 1864
    A 50 150 50 150 50 150 50 150 50 150 50 150 50 150 50
    M 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8
    N 6 6 8 8 10 10 12 12 14 14 16 16 18 18 20
    P 250 350 450 550 650 750 850 950 1050 1150 1250 1350 1450 1550 1650
    Weight (kg) 8.6 9.5 10.5 11.5 12.5 13.5 14.5 15.5 16.5 17.5 18.5 19.7 20.9 22.1 23.5
    Stroke 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500 2600 2700 2800 2900 3000 3050
    L 1964 2064 2164 2264 2364 2464 2564 2664 2764 2864 2964 3064 3164 3264 3364 3414
    A 150 50 150 50 150 50 150 50 150 50 150 50 150 50 150 200
    M 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 15
    N 20 22 22 24 24 26 26 28 28 30 30 32 32 34 34 34
    P 1750 1850 1950 2050 2150 2250 2350 2450 2550 2650 2750 2850 2950 3050 3150 3200
    Weight (kg) 24.5 25.7 26.9 28.1 29.5 30.5 31.7 32.9 34.1 35.5 36.5 37.7 38.9 40.1 41.5 41.9

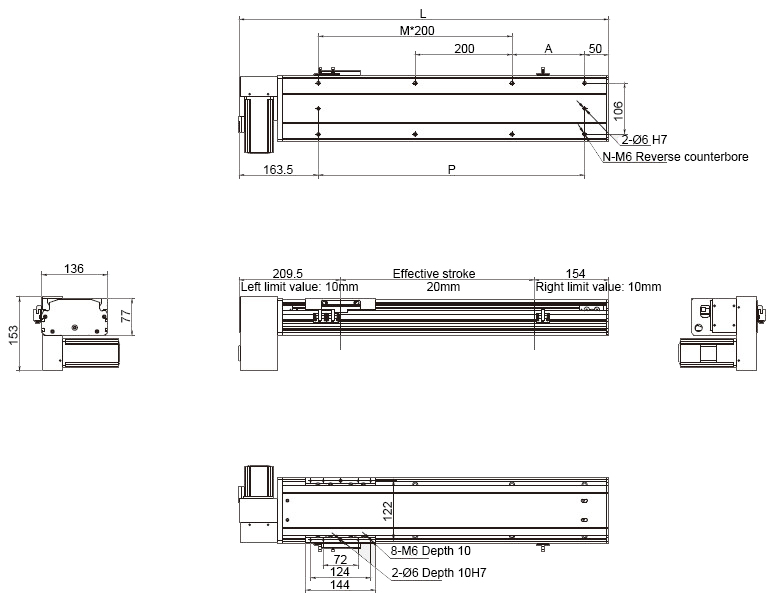

    Dimensions of Belt Driven Linear Slide with Motor Down to the Right (Unit: mm)

    Dimensions of 200W 3050mm Belt Driven Linear Slide with motor Down to the Right

    Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500
    L 464 564 664 764 864 964 1064 1164 1264 1364 1464 1564 1664 1764 1864
    A 50 150 50 150 50 150 50 150 50 150 50 150 50 150 50
    M 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8
    N 6 6 8 8 10 10 12 12 14 14 16 16 18 18 20
    P 250 350 450 550 650 750 850 950 1050 1150 1250 1350 1450 1550 1650
    Weight (kg) 8.6 9.5 10.5 11.5 12.5 13.5 14.5 15.5 16.5 17.5 18.5 19.7 20.9 22.1 23.5
    Stroke 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500 2600 2700 2800 2900 3000 3050
    L 1964 2064 2164 2264 2364 2464 2564 2664 2764 2864 2964 3064 3164 3264 3364 3414
    A 150 50 150 50 150 50 150 50 150 50 150 50 150 50 150 200
    M 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 15
    N 20 22 22 24 24 26 26 28 28 30 30 32 32 34 34 34
    P 1750 1850 1950 2050 2150 2250 2350 2450 2550 2650 2750 2850 2950 3050 3150 3200
    Weight (kg) 24.5 25.7 26.9 28.1 29.5 30.5 31.7 32.9 34.1 35.5 36.5 37.7 38.9 40.1 41.5 41.9

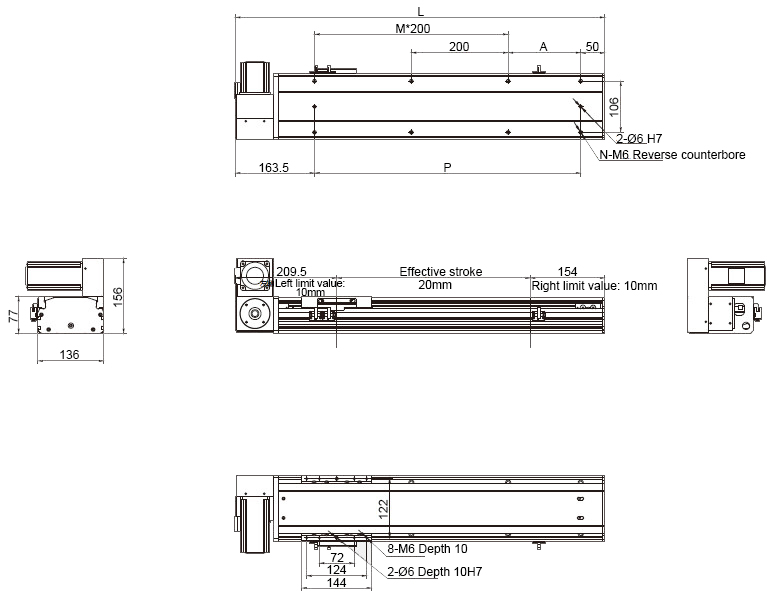

    Dimensions of Belt Driven Linear Slide with with Motor on the Top Left (Unit: mm)

    Dimensions of 200W 3050mm Belt Driven Linear Slide with motor on the Top Left

    Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500
    L 464 564 664 764 864 964 1064 1164 1264 1364 1464 1564 1664 1764 1864
    A 50 150 50 150 50 150 50 150 50 150 50 150 50 150 50
    M 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8
    N 6 6 8 8 10 10 12 12 14 14 16 16 18 18 20
    P 250 350 450 550 650 750 850 950 1050 1150 1250 1350 1450 1550 1650
    Weight (kg) 8.6 9.5 10.5 11.5 12.5 13.5 14.5 15.5 16.5 17.5 18.5 19.7 20.9 22.1 23.5
    Stroke 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500 2600 2700 2800 2900 3000 3050
    L 1964 2064 2164 2264 2364 2464 2564 2664 2764 2864 2964 3064 3164 3264 3364 3414
    A 150 50 150 50 150 50 150 50 150 50 150 50 150 50 150 200
    M 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 15
    N 20 22 22 24 24 26 26 28 28 30 30 32 32 34 34 34
    P 1750 1850 1950 2050 2150 2250 2350 2450 2550 2650 2750 2850 2950 3050 3150 3200
    Weight (kg) 24.5 25.7 26.9 28.1 29.5 30.5 31.7 32.9 34.1 35.5 36.5 37.7 38.9 40.1 41.5 41.9

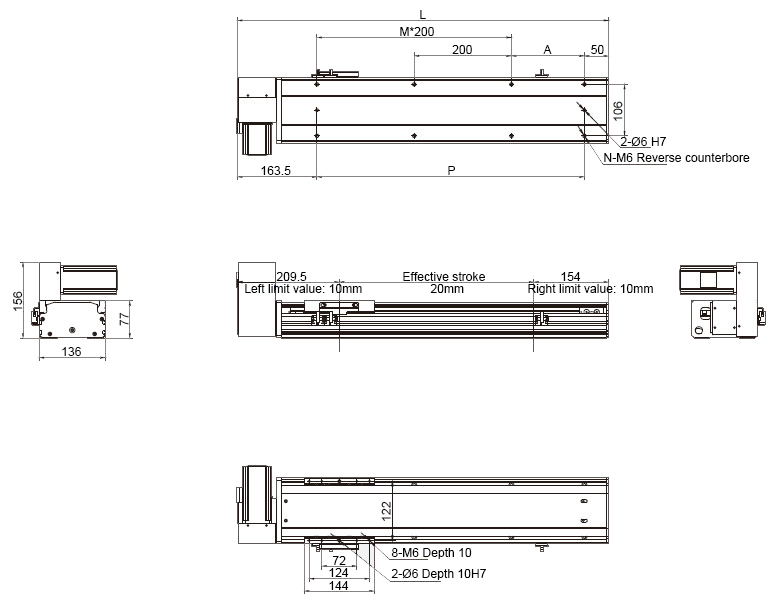

    Dimensions of Belt Driven Linear Slide with Motor on the Top Right (Unit: mm)

    Dimensions of 200W 3050mm Belt Driven Linear Slide with motor on the Top Right

    Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500
    L 464 564 664 764 864 964 1064 1164 1264 1364 1464 1564 1664 1764 1864
    A 50 150 50 150 50 150 50 150 50 150 50 150 50 150 50
    M 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8
    N 6 6 8 8 10 10 12 12 14 14 16 16 18 18 20
    P 250 350 450 550 650 750 850 950 1050 1150 1250 1350 1450 1550 1650
    Weight (kg) 8.6 9.5 10.5 11.5 12.5 13.5 14.5 15.5 16.5 17.5 18.5 19.7 20.9 22.1 23.5
    Stroke 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500 2600 2700 2800 2900 3000 3050
    L 1964 2064 2164 2264 2364 2464 2564 2664 2764 2864 2964 3064 3164 3264 3364 3414
    A 150 50 150 50 150 50 150 50 150 50 150 50 150 50 150 200
    M 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 15
    N 20 22 22 24 24 26 26 28 28 30 30 32 32 34 34 34
    P 1750 1850 1950 2050 2150 2250 2350 2450 2550 2650 2750 2850 2950 3050 3150 3200
    Weight (kg) 24.5 25.7 26.9 28.1 29.5 30.5 31.7 32.9 34.1 35.5 36.5 37.7 38.9 40.1 41.5 41.9
