    200W 100~1050mm Ball Screw Driven Linear Slide, Ф16mm

    200W 100~1050mm Ball Screw Driven Linear Slide, Ф16mm

    Write a review
    $1,199.69
    Ball screw driven linear slide for sale. Stroke 100mm~1050mm for selection, ball screw diameter 16mm, screw path 5/10/20mm, maximum speed 900mm/s, motor power 200W. Linear guide rail with servo motor and sensor for optional configuration.
    SKU: ATO-LS-1050200
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days
    Related products
    100~1050mm Ball Screw Driven Linear Slide, Ф16mm

    100~1050mm Ball Screw Driven Linear Slide, Ф16mm

    $799.38
    SKU: ATO-LS-105016
    Low cost linear slide guide rail for sale, driven by Ф16mm ball screw. 11 strokes for selection, minimum 100mm, maximum 1050mm, maximum speed 900mm/s, motor capacity 200W, screw path 5/10/20mm. Compact linear motion system can match with servo motor and sensor.
    100~1250mm Ball Screw Driven Linear Slide, Ф16mm

    100~1250mm Ball Screw Driven Linear Slide, Ф16mm

    $949.92
    SKU: ATO-LS-125016
    Linear slide guide rail is driven by Ф16mm ball screw and 400W motor. Stroke can select from 100mm to 1250mm, maximum speed 1600mm/s, optional screw path 5/10/20/32mm. Guide rail, coupling, motor and sensor form the linear motion system, good price and easy assembly.
    100~800mm Ball Screw Driven Linear Slide, Ф12mm

    100~800mm Ball Screw Driven Linear Slide, Ф12mm

    $747.54
    SKU: ATO-LS-80012
    Cheap linear slide guide rail for sale, driven by Ф12mm ball screw. Stroke 100mm~800mm for selection, maximum speed 1000mm/s, motor capacity 100W, screw path 5/10/20mm. High precision linear motion system, servo motor and sensor are optional for configuration.
    100W 100~1050mm Ball Screw Driven Linear Slide, Ф16mm

    100W 100~1050mm Ball Screw Driven Linear Slide, Ф16mm

    $939.69
    SKU: ATO-LS-1050100
    Linear slide works at 100W power, driven by ball screw (diameter 16mm). Available stroke 100mm to 1050mm, screw path 5/10/20mm, maximum speed 900mm/s. The motorized linear guide rail can used with servo motor, optional for configuration.
    400W 100~1250mm Ball Screw Driven Linear Slide, Ф20mm

    400W 100~1250mm Ball Screw Driven Linear Slide, Ф20mm

    $1,439.23
    SKU: ATO-LS-1050400
    Good price linear slide is driven by Ф20mm ball screw. 13 optional strokes, minimum 100mm, maximum 1250mm, screw path 5/10/20/40mm, maximum speed 1000mm/s, motor power 400W. Linear guide rail system for linear motion, matching with servo motor and sensor.

    Linear slide table has guide rail, sliding block, motor and sensor to form a linear motion system. Stroke is available from 100mm to 1050mm, screw path 5/10/20mm, ball screw diameter 16mm. High precision, easy assembly and affordable price.

    Basic Specification

    Model ATO-C135
    Stroke 100mm~1050mm (100mm pitch)
    Ball Screw Diameter 16mm
    Repeatability Accuracy ± 0.01mm
    Ball Screw Lead 5mm 10mm 20mm
    Max. Speed 225 mm/s 450 mm/s 900 mm/s
    Max. Payload

    		 Horizontal 95/110 kg 75/88 kg 35/40 kg
    Vertical 27/33 kg 18/22 kg 7/10 kg
    Rated Thrust 683/1388 N 341/694 N 174/347 N
    Matching Servo Motor Power* 200W
    Coupling 10*11 (14) / 10*14 mm
    Home Sensor Outside EE-SX672 (NPN)
    Built-in EE-SX674 (NPN)

    *Note: The servo motor is not included in packing list, if you need one, please contact us.

    Speed Chart

    Model Body Width (mm) Ball Screw Lead (mm) Max. Payload (kg) Max. Speed (mm/s) Standard stroke and recommended use of the highest speed (mm/s)
    Horizontal Vertical 100 200 300 400 500 600 700 800 900 1000 1050
    ATO-C135 136 5 95 27 225 - - - - - - - 225 175 125 100
    10 75 18 450 - - - - - - - 450 350 250 200
    20 35 7 900 - - - - - - - 900 700 500 400

    Note: The highest speed is based on the maximum speed of servo motor (3000 rpm).

    Features

    • The linear slide is a fully enclosed linear motion system, which is mainly composed of an aluminum body, a diagonal bearing holder, a cover plate, a slide block and other components.
    • Linear slide guide rail uses corrosion-resistant, high-strength aluminum alloy as the base. A high-precision linear guide pair is installed in the base. The aluminum alloy motion base is installed on the slide block. The middle part of motion seat is connected with the nut of ball screw.
    • Motor of the motorized linear slide drives the sliding table to reciprocate through the ball screw rod.
    • The diagonal bearing holder ensures the repeatability and positioning accuracy of motion seat.
    • The flexible stainless steel is sealed, and on the motion seat, the whole linear motion system can meet the requirements of dust-free level.

    Motor Mounting Dimensions (Unit: mm)

    200W linear slide motor mounting dimensions

    Motor Power Motor Size Shaft Diameter
    200W 60mm 11mm

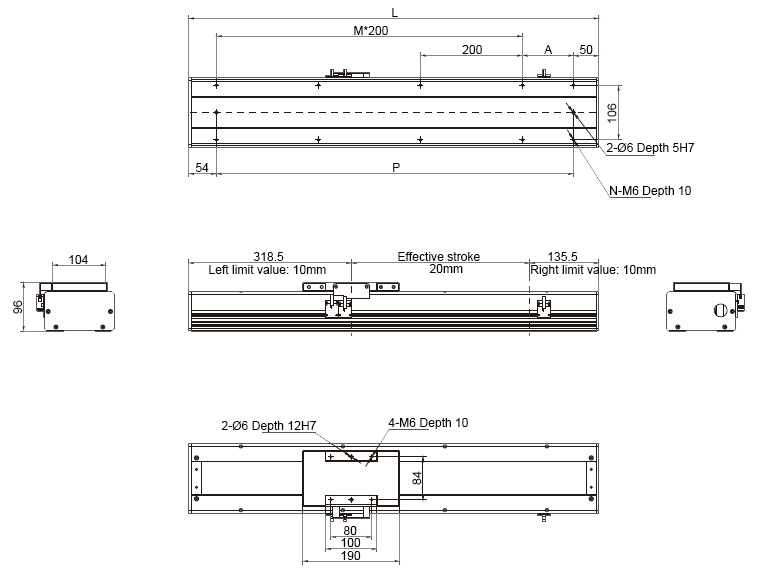

    Dimensions of Ball Screw Driven Linear Slide with Motor Built-in (Unit: mm)

    Dimensions of 200W 1050mm Ball Screw Driven Linear Slide with motor Built-in

    Stroke 100 200 300 400 500 600 700 800 900 1000 1050
    L 554 654 754 854 950 1054 1154 1254 1354 1454 1504
    A 50 150 50 150 50 150 50 150 50 150 200
    M 2 2 3 3 4 4 5 5 6 6 6
    N 8 8 10 10 12 12 14 14 16 16 16
    P 450 550 650 750 850 950 1050 1150 1250 1350 1400
    Weight (kg) 12.1 13.3 14.5 15.7 16.9 18.1 19.3 20.5 21.7 22.9 23.5

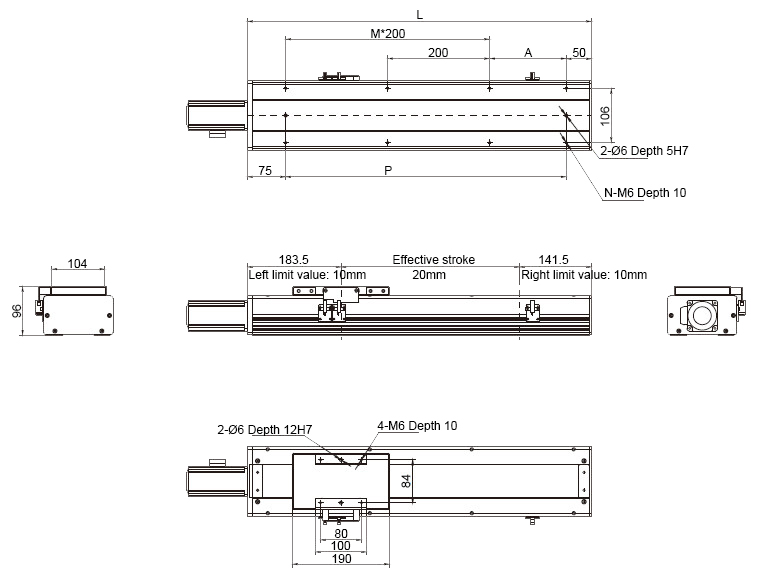

    Dimensions of Ball Screw Driven Linear Slide with Motor Exposed (Unit: mm)

    Dimensions of 200W 1050mm Ball Screw Driven Linear Slide with motor exposed

    Stroke 100 200 300 400 500 600 700 800 900 1000 1050
    L 425 525 625 725 825 925 1025 1125 1225 1325 1375
    A 100 200 100 200 100 200 100 200 100 200 50
    M 1 1 2 2 3 3 4 4 5 5 6
    N 6 6 8 8 10 10 12 12 14 14 16
    P 300 400 500 600 700 800 900 1000 1100 1200 1250
    Weight (kg) 11.1 12.3 13.5 14.7 15.9 17.1 18.3 19.5 20.7 21.9 22.5

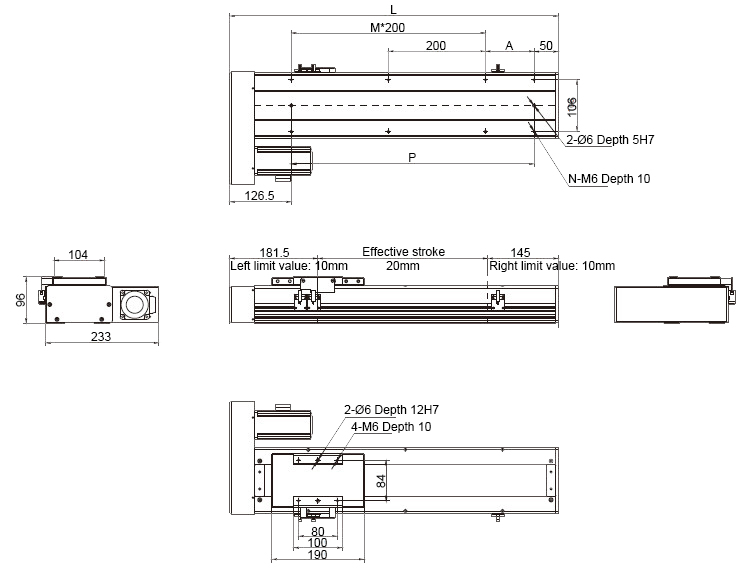

    Dimensions of Ball Screw Driven Linear Slide with Motor on Left Side (Unit: mm)

    Dimensions of 200W 1050mm Ball Screw Driven Linear Slide with motor on left side

    Stroke 100 200 300 400 500 600 700 800 900 1000 1050
    L 427 527 627 727 827 927 1027 1127 1227 1327 1377
    A 50 150 50 150 50 150 50 150 50 150 200
    M 1 1 2 2 3 3 4 4 5 5 5
    N 6 6 8 8 10 10 12 12 14 14 14
    P 250 350 450 550 650 750 850 950 1050 1150 1200
    Weight (kg) 11.52 12.76 14.00 15.24 16.48 17.72 18.96 20.20 21.44 22.68 23.30

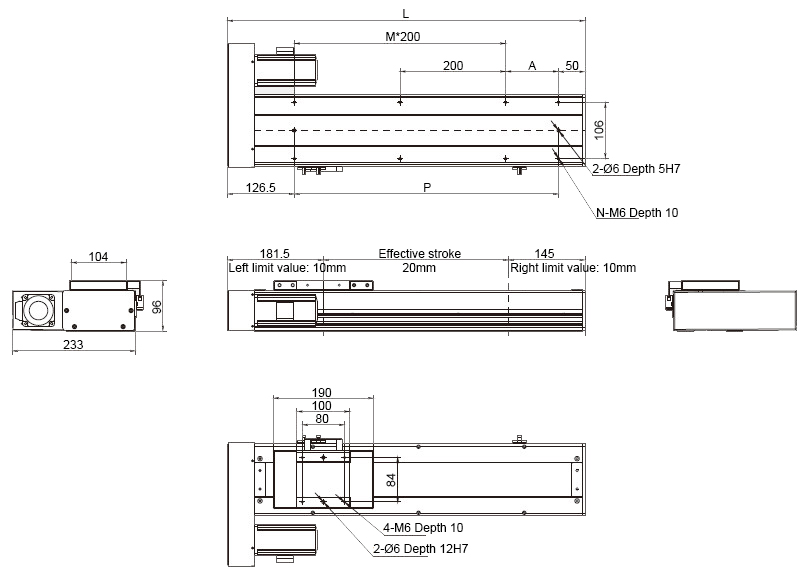

    Dimensions of Ball Screw Driven Linear Slide with Motor on Right Side (Unit: mm)

    Dimensions of 200W 1050mm Ball Screw Driven Linear Slide with motor on right side

    Stroke 100 200 300 400 500 600 700 800 900 1000 1050
    L 427 527 627 727 827 927 1027 1127 1227 1327 1377
    A 50 150 50 150 50 150 50 150 50 150 200
    M 1 1 2 2 3 3 4 4 5 5 5
    N 6 6 8 8 10 10 12 12 14 14 14
    P 250 350 450 550 650 750 850 950 1050 1150 1200
    Weight (kg) 11.52 12.76 14.00 15.24 16.48 17.72 18.96 20.20 21.44 22.68 23.30

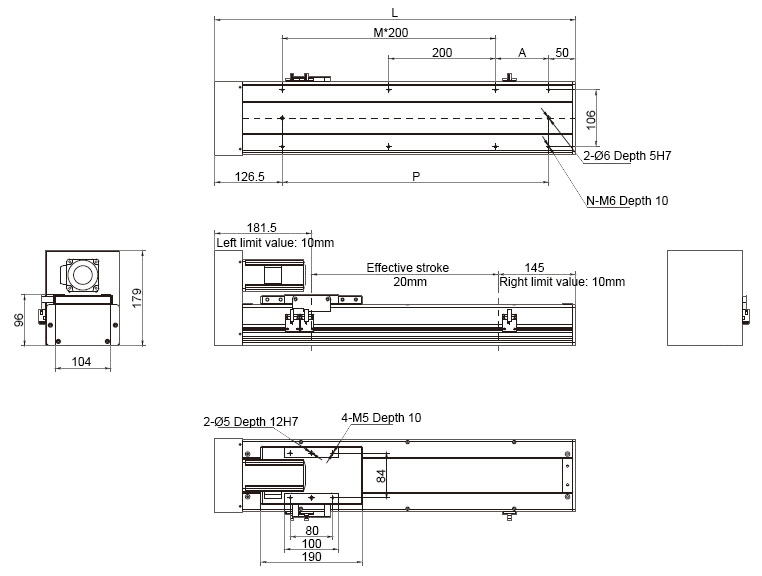

    Dimensions of Ball Screw Driven Linear Slide with Motor on Top Side (Unit: mm)

    Dimensions of 200W 1050mm Ball Screw Driven Linear Slide with motor on Top Side

    Stroke 100 200 300 400 500 600 700 800 900 1000 1050
    L 427 527 627 727 827 927 1027 1127 1227 1327 1377
    A 50 150 50 150 50 150 50 150 50 150 200
    M 1 1 2 2 3 3 4 4 5 5 5
    N 6 6 8 8 10 10 12 12 14 14 14
    P 250 350 450 550 650 750 850 950 1050 1150 1200
    Weight (kg) 11.52 12.76 14.00 15.24 16.48 17.72 18.96 20.20 21.44 22.68 23.30

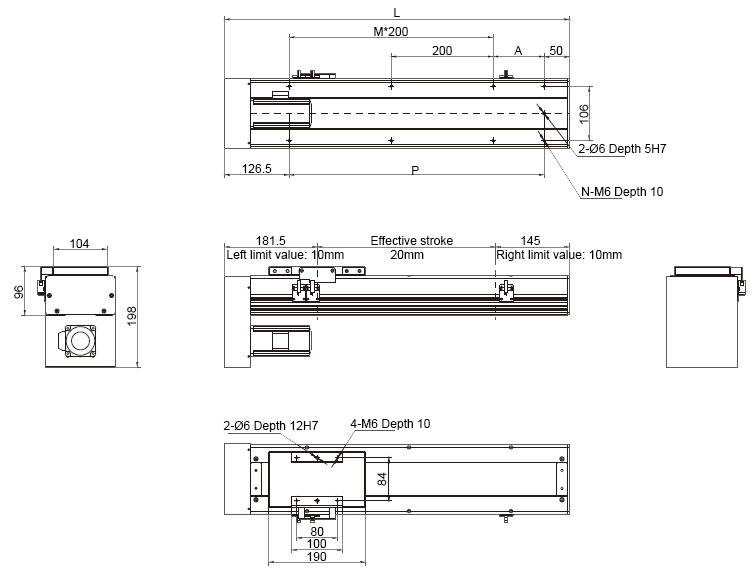

    Dimensions of Ball Screw Driven Linear Slide with Motor on Bottom Side (Unit: mm)

    Dimensions of 200W 1050mm Ball Screw Driven Linear Slide with motor on Bottom Side

    Stroke 100 200 300 400 500 600 700 800 900 1000 1050
    L 427 527 627 727 827 927 1027 1127 1227 1327 1377
    A 50 150 50 150 50 150 50 150 50 150 200
    M 1 1 2 2 3 3 4 4 5 5 5
    N 6 6 8 8 10 10 12 12 14 14 14
    P 250 350 450 550 650 750 850 950 1050 1150 1200
    Weight (kg) 11.52 12.76 14.00 15.24 16.48 17.72 18.96 20.20 21.44 22.68 23.30
