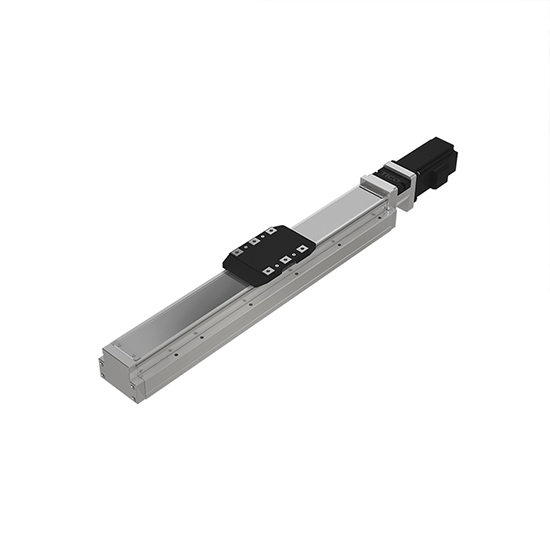

    100~1050mm Ball Screw Driven Linear Slide, Ф16mm

    $799.38
    Low cost linear slide guide rail for sale, driven by Ф16mm ball screw. 11 strokes for selection, minimum 100mm, maximum 1050mm, maximum speed 900mm/s, motor capacity 200W, screw path 5/10/20mm. Compact linear motion system can match with servo motor and sensor.
    SKU: ATO-LS-105016
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Linear slide table is driven by ball screw of 16mm diameter, optional stroke 100mm~1050mm, screw path 5/10/20mm. The linear motion system integrates guide rail and sliding block. For better control, you can buy a servo motor to match the linear slide system.

    Basic Specification

    Model ATO-ATH8
    Stroke 100mm~1050mm (100mm pitch)
    Ball Screw Diameter 16mm
    Repeatability Accuracy ± 0.01mm
    Ball Screw Lead 5mm 10mm 20mm
    Max. Speed 225 mm/s 450 mm/s 900 mm/s
    Max. Payload

    Horizontal 50 kg 30 kg 18 kg
    Vertical 15 kg 8 kg 3 kg
    Rated Thrust 683/1388 N 341/694 N 174/347 N
    Matching Servo Motor Power* 200W
    Coupling 10*11 (14)mm / 10*14mm
    Home Sensor Outside EE-SX674 (NPN)

    *Note: The servo motor is not included in packing list, if you need one, please contact us.

    Speed Chart

    Model Body Width (mm) Ball Screw Lead (mm) Max. Payload (kg) Max. Speed (mm/s) Standard stroke and recommended use of the highest speed (mm/s)
    Horizontal Vertical 100 200 300 400 500 600 700 800 900 1000 1050
    ATO-ATH8 82 5 50 15 225 - - - - - - - 225 175 125 100
    10 30 8 450 - - - - - - - 450 350 250 200
    20 18 3 900 - - - - - - - 900 700 500 400

    Note: The highest speed is based on the maximum speed of servo motor (3000 rpm).

    Features

    • The ball screw linear slide table is a highly integrated linear motion system. The aluminum body is integrated with guide rail, and the slide block and the slide table are integrated.
    • Linear slide guide rail is compact, lightweight, space-saving and high-load.
    • The linear slide system is made of U-shaped high-strength aluminum alloy. The built-in stainless steel guide rail and the base are integrally formed. The guide rail groove adopts 2 rows 45° contact angles, providing equal load capacity in 4 directions. High precision and high rigidity can be achieved through proper steel ball preload.
    • Fully sealed design, low dust generation during operation, so that the whole linear motion system can meet the requirements of dust-free level.
    • The linear slide table of this series adopts ball screw, with high transmission repeatability, up to ±0.005.

    Motor Mounting Dimensions (Unit: mm)

    200W linear slide motor mounting dimensions

    Motor Power Motor Size Shaft Diameter
    200W 60mm 11mm

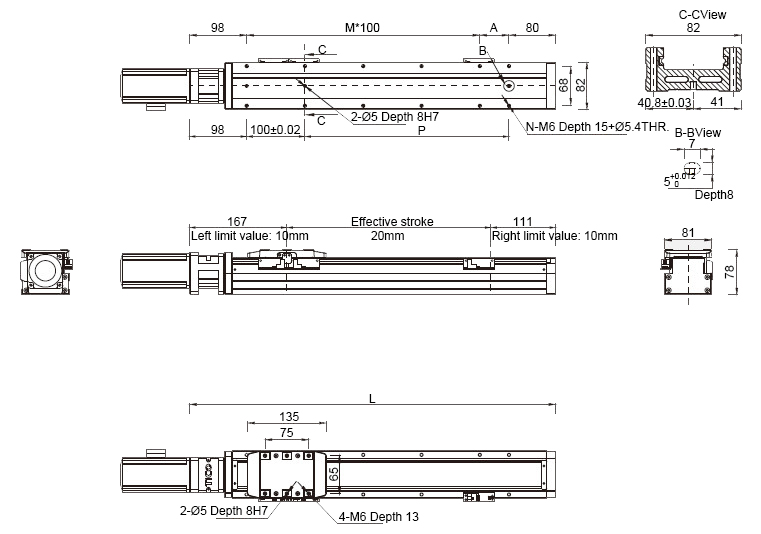

    Dimensions of Ball Screw Driven Linear Slide with Motor Exposed (Unit: mm)

    Dimensions of 1050mm Ф16mm Ball Screw Driven Linear Slide with motor exposed

    Stroke 100 200 300 400 500 600 700 800 900 1000 1050
    L 378 478 578 678 778 878 978 1078 1178 1278 1328
    A 100 100 100 100 100 100 100 100 100 100 100
    M 1 2 3 4 5 6 7 8 9 10 11
    N 6 8 10 12 14 16 18 20 22 24 26
    P 100 200 300 400 500 600 700 800 900 1000 1050
    Weight (kg) 4.3 5 5.7 6.4 7.1 7.8 8.5 9.2 9.9 10.6 10.95

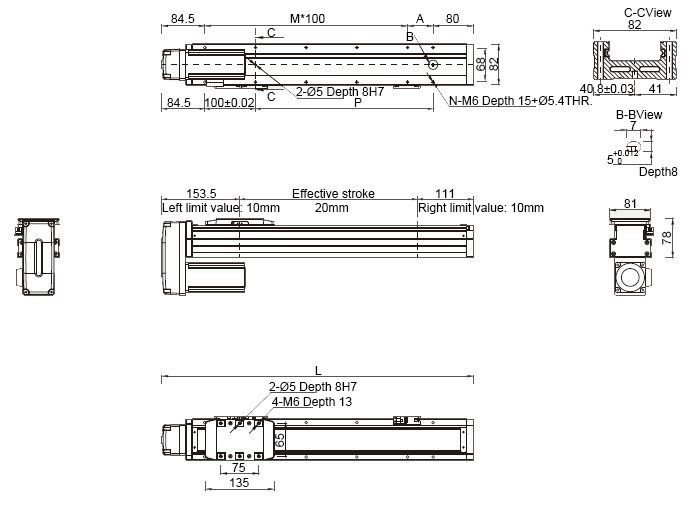

    Dimensions of Ball Screw Driven Linear Slide with Motor on Bottom Side (Unit: mm)

    Dimensions of 1050mm Ф16mm Ball Screw Driven Linear Slide with motor on bottom side

    Stroke 100 200 300 400 500 600 700 800 900 1000 1050
    L 364.5 464.5 564.5 664.5 764.5 864.5 964.5 1064.5 1164.5 1264.5 1314.5
    A 100 100 100 100 100 100 100 100 100 100 100
    M 0 1 2 3 4 5 6 7 8 9 10
    N 4 6 8 10 12 14 16 18 20 22 24
    P 100 200 300 400 500 600 700 800 900 1000 1050
    Weight (kg) 4.5 5.2 5.9 6.60 7.3 8 8.7 9.4 10.1 10.8 11.15

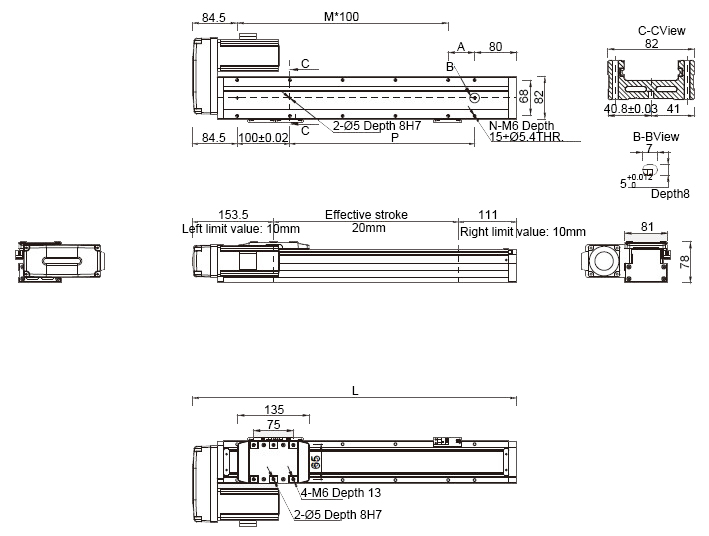

    Dimensions of Ball Screw Driven Linear Slide with Motor on Left Side (Unit: mm)

    Dimensions of 1050mm Ф16mm Ball Screw Driven Linear Slide with motor on left side

    Stroke 100 200 300 400 500 600 700 800 900 1000 1050
    L 364.5 464.5 564.5 664.5 764.5 864.5 964.5 1064.5 1164.5 1264.5 1314.5
    A 100 100 100 100 100 100 100 100 100 100 100
    M 1 2 3 4 5 6 7 8 9 10 11
    N 6 8 10 12 14 16 18 20 22 24 26
    P 100 200 300 400 500 600 700 800 900 1000 1050
    Weight (kg) 4.5 5.2 5.9 6.60 7.3 8 8.7 9.4 10.1 10.8 11.15

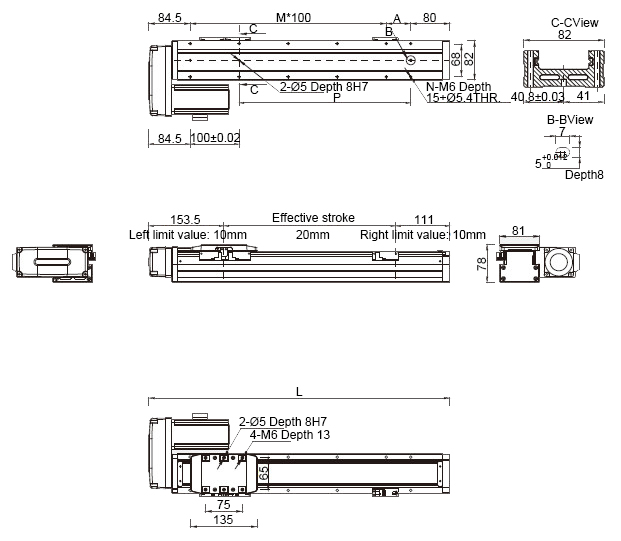

    Dimensions of Ball Screw Driven Linear Slide with Motor on Right Side (Unit: mm)

    imensions of 1050mm Ф16mm Ball Screw Driven Linear Slide with motor on right side

    Stroke 100 200 300 400 500 600 700 800 900 1000 1050
    L 364.5 464.5 564.5 664.5 764.5 864.5 964.5 1064.5 1164.5 1264.5 1314.5
    A 100 100 100 100 100 100 100 100 100 100 100
    M 1 2 3 4 5 6 7 8 9 10 11
    N 6 8 10 12 14 16 18 20 22 24 26
    P 100 200 300 400 500 600 700 800 900 1000 1050
    Weight (kg) 4.5 5.2 5.9 6.60 7.3 8 8.7 9.4 10.1 10.8 11.15
