    100~800mm Ball Screw Driven Linear Slide, Ф12mm

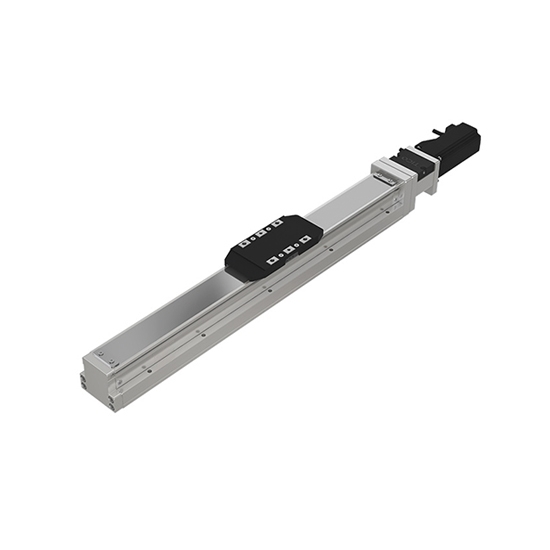

    Picture of 100~800mm Ball Screw Driven Linear Slide, Ф12mm
    Picture of 100~800mm Ball Screw Driven Linear Slide, Ф12mm
    Picture of 100~800mm Ball Screw Driven Linear Slide, Ф12mm

    100~800mm Ball Screw Driven Linear Slide, Ф12mm

    Write a review
    $747.54
    Cheap linear slide guide rail for sale, driven by Ф12mm ball screw. Stroke 100mm~800mm for selection, maximum speed 1000mm/s, motor capacity 100W, screw path 5/10/20mm. High precision linear motion system, servo motor and sensor are optional for configuration.
    SKU: ATO-LS-80012
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days
    Related products
    100~1050mm Ball Screw Driven Linear Slide, Ф16mm

    100~1050mm Ball Screw Driven Linear Slide, Ф16mm

    $799.38
    SKU: ATO-LS-105016
    Low cost linear slide guide rail for sale, driven by Ф16mm ball screw. 11 strokes for selection, minimum 100mm, maximum 1050mm, maximum speed 900mm/s, motor capacity 200W, screw path 5/10/20mm. Compact linear motion system can match with servo motor and sensor.
    100~1250mm Ball Screw Driven Linear Slide, Ф16mm

    100~1250mm Ball Screw Driven Linear Slide, Ф16mm

    $949.92
    SKU: ATO-LS-125016
    Linear slide guide rail is driven by Ф16mm ball screw and 400W motor. Stroke can select from 100mm to 1250mm, maximum speed 1600mm/s, optional screw path 5/10/20/32mm. Guide rail, coupling, motor and sensor form the linear motion system, good price and easy assembly.
    100W 100~1050mm Ball Screw Driven Linear Slide, Ф16mm

    100W 100~1050mm Ball Screw Driven Linear Slide, Ф16mm

    $939.69
    SKU: ATO-LS-1050100
    Linear slide works at 100W power, driven by ball screw (diameter 16mm). Available stroke 100mm to 1050mm, screw path 5/10/20mm, maximum speed 900mm/s. The motorized linear guide rail can used with servo motor, optional for configuration.
    200W 100~1050mm Ball Screw Driven Linear Slide, Ф16mm

    200W 100~1050mm Ball Screw Driven Linear Slide, Ф16mm

    $1,199.69
    SKU: ATO-LS-1050200
    Ball screw driven linear slide for sale. Stroke 100mm~1050mm for selection, ball screw diameter 16mm, screw path 5/10/20mm, maximum speed 900mm/s, motor power 200W. Linear guide rail with servo motor and sensor for optional configuration.
    400W 100~1250mm Ball Screw Driven Linear Slide, Ф20mm

    400W 100~1250mm Ball Screw Driven Linear Slide, Ф20mm

    $1,439.23
    SKU: ATO-LS-1050400
    Good price linear slide is driven by Ф20mm ball screw. 13 optional strokes, minimum 100mm, maximum 1250mm, screw path 5/10/20/40mm, maximum speed 1000mm/s, motor power 400W. Linear guide rail system for linear motion, matching with servo motor and sensor.

    The ball screw driven linear slide is a motorized linear guide rail, which is suitable for 100W motor, optional stroke 100mm~800mm, ball screw diameter 12m, screw path 5/10/20mm. It is a linear motion system with optional configuration of servo motor and sensor.

    Basic Specification

    Model ATO-ATH5
    Stroke 100mm~800mm (100mm pitch)
    Ball Screw Diameter 12mm
    Repeatability Accuracy ± 0.01mm
    Ball Screw Lead 5mm 10mm 20mm
    Max. Speed 250 mm/s 500 mm/s 1000 mm/s
    Max. Payload

    		 Horizontal 30 kg  15 kg 10 kg
    Vertical 10 kg 5 kg 2.5 kg
    Rated Thrust 341 N 170 N 85 N
    Matching Servo Motor Power* 100W
    Coupling 7*8mm
    Home Sensor Outside EE-SX674 (NPN)

    *Note: The servo motor is not included in packing list, if you need one, please contact us.

    Speed Chart

    Model Body Width (mm) Ball Screw Lead (mm) Max. Payload (kg) Max. Speed (mm/s) Standard stroke and recommended use of the highest speed (mm/s)
    Horizontal Vertical 100 200 300 400 500 600 700 800
    ATO-ATH5 54 5 30 10 250 - - - - - 250 200 150
    10 15 5 500 - - - - - 500 400 300
    20 10 2.5 1000 - - - - - 1000 800 600

    Note: The highest speed is based on the maximum speed of servo motor (3000 rpm).

    Features

    • The ball screw linear slide table is a highly integrated linear motion system. The aluminum body is integrated with guide rail, and the slide block and the slide table are integrated.
    • Linear slide guide rail is compact, lightweight, space-saving and high-load.
    • The linear slide system is made of U-shaped high-strength aluminum alloy. The built-in stainless steel guide rail and the base are integrally formed. The guide rail groove adopts 2 rows 45° contact angles, providing equal load capacity in 4 directions. High precision and high rigidity can be achieved through proper steel ball preload.
    • Fully sealed design, low dust generation during operation, so that the whole linear motion system can meet the requirements of dust-free level.
    • The linear slide table of this series adopts ball screw, with high transmission repeatability, up to ±0.005.

    Motor Mounting Dimensions (Unit: mm)

    100W liner slide motor mounting dimensions

    Motor Power Motor Size Shaft Diameter
    100W 38mm 8mm

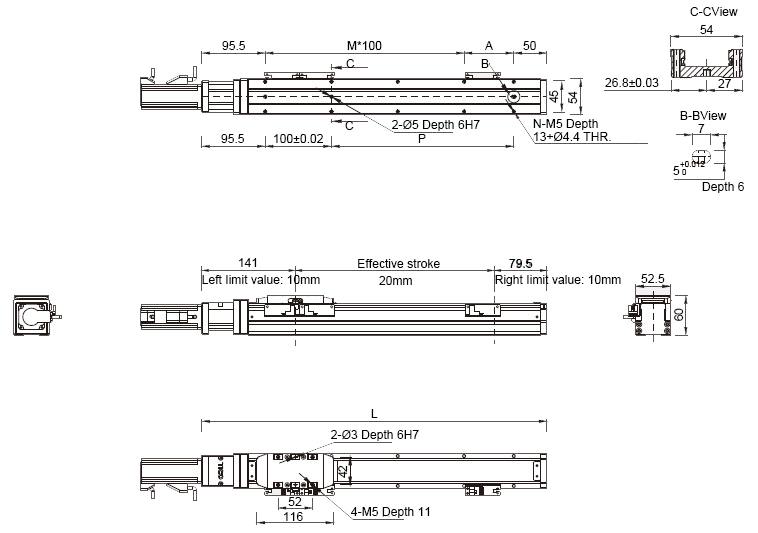

    Dimensions of Ball Screw Driven Linear Slide with Motor Exposed (Unit: mm)

    Dimensions of 800mm Ф12mm Ball Screw Driven Linear Slide with motor exposed

    Stroke 100 200 300 400 500 600 700 800
    L 320.5 420.5 520.5 620.5 720.5 820.5 920.5 1020.5
    A 75 75 75 75 75 75 75 75
    M 1 2 3 4 5 6 7 8
    N 6 8 10 12 14 16 18 20
    P 75 175 275 375 475 575 675 775
    Weight (kg) 2.42 2.82 3.21 3.6 4 4.39 4.78 5.18

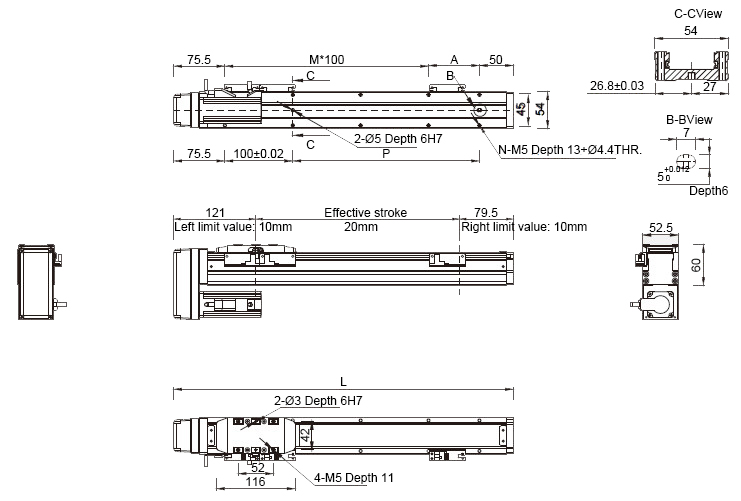

    Dimensions of Ball Screw Driven Linear Slide with Motor on Bottom Side (Unit: mm)

    Dimensions of 800mm Ф12mm Ball Screw Driven Linear Slide with motor on bottom side

    Stroke 100 200 300 400 500 600 700 800
    L 300.5 400.5 500.5 600.5 700.5 800.5 900.5 1000.5
    A 75 75 75 75 75 75 75 75
    M 0 1 2 3 4 5 6 7
    N 4 6 8 10 12 14 16 18
    P 75 175 275 375 475 575 675 775
    Weight (kg) 2.59 2.99 3.38 3.77 4.17 4.56 4.95 5.35

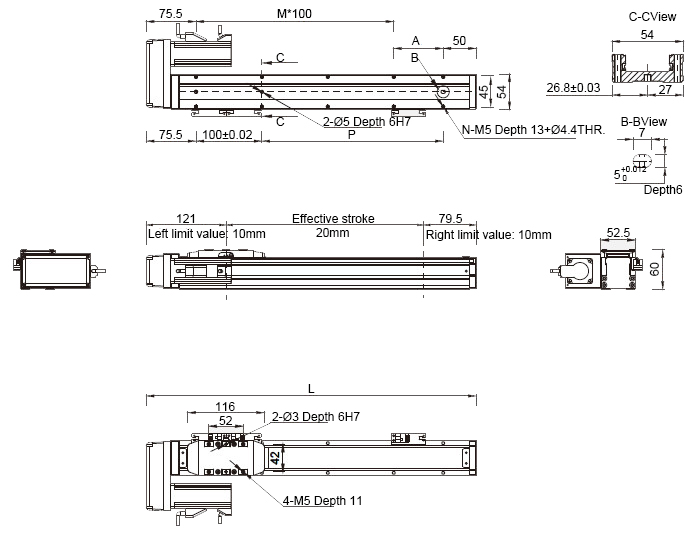

    Dimensions of Ball Screw Driven Linear Slide with Motor on Left Side (Unit: mm)

    Dimensions of 800mm Ф12mm Ball Screw Driven Linear Slide with motor on left side

    Stroke 100 200 300 400 500 600 700 800
    L 300.5 400.5 500.5 600.5 700.5 800.5 900.5 1000.5
    A 75 75 75 75 75 75 75 75
    M 1 2 3 4 5 6 7 8
    N 6 8 10 12 14 16 18 20
    P 75 175 275 375 475 575 675 775
    Weight (kg) 2.59 2.99 3.38 3.77 4.17 4.56 4.95 5.35

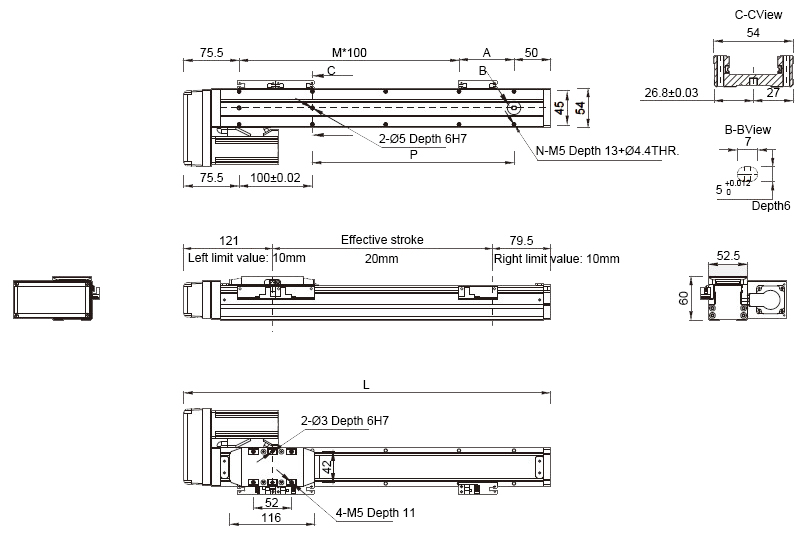

    Dimensions of Ball Screw Driven Linear Slide with Motor on Right Side (Unit: mm)

    Dimensions of 800mm Ф12mm Ball Screw Driven Linear Slide with motor on right side

    Stroke 100 200 300 400 500 600 700 800
    L 300.5 400.5 500.5 600.5 700.5 800.5 900.5 1000.5
    A 75 75 75 75 75 75 75 75
    M 1 2 3 4 5 6 7 8
    N 6 8 10 12 14 16 18 20
    P 75 175 275 375 475 575 675 775
    Weight (kg) 2.59 2.99 3.38 3.77 4.17 4.56 4.95 5.35
