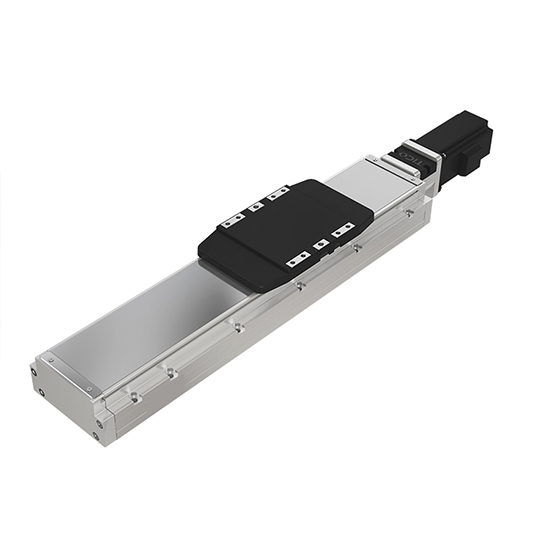

    100~1250mm Ball Screw Driven Linear Slide, Ф16mm
    Picture of 100~1250mm Ball Screw Driven Linear Slide, Ф16mm
    Picture of 100~1250mm Ball Screw Driven Linear Slide, Ф16mm
    Picture of 100~1250mm Ball Screw Driven Linear Slide, Ф16mm
    Picture of 100~1250mm Ball Screw Driven Linear Slide, Ф16mm

    100~1250mm Ball Screw Driven Linear Slide, Ф16mm

    5 out of 5 based on 2 reviews | Write a review
    $949.92
    Linear slide guide rail is driven by Ф16mm ball screw and 400W motor. Stroke can select from 100mm to 1250mm, maximum speed 1600mm/s, optional screw path 5/10/20/32mm. Guide rail, coupling, motor and sensor form the linear motion system, good price and easy assembly.
    *
    *
    *
    *
    *
    SKU: ATO-LS-125016
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The liner slide table is a linear motion system consist of guide rail, slide block, servo motor (400W, optional) and sensor. Ball screw diameter 16mm, stroke 100mm~1250mm for selection, screw path 5/10/20/32mm.

    Basic Specification

    Model ATO-ATH12
    Stroke 100mm~1250mm (100mm pitch)
    Ball Screw Diameter 16mm
    Repeatability Accuracy ± 0.01mm
    Ball Screw Lead 5mm 10mm 20mm 32mm
    Max. Speed 250 mm/s 500 mm/s 1000 mm/s 1600 mm/s
    Max. Payload

    		 Horizontal 110 kg 88 kg 40 kg 30 kg
    Vertical 33 kg 22 kg 10 kg 8 kg
    Rated Thrust 1388 N 694 N 347 N 218 N
    Matching Servo Motor Power* 400W
    Coupling 10*14mm
    Home Sensor Outside EE-SX674 (NPN)

    *Note: The servo motor is not included in packing list, if you need one, please contact us.

    Speed Chart

    Model Body Width (mm) Ball Screw Lead (mm) Max. Payload (kg) Max. Speed (mm/s) Standard stroke and recommended use of the highest speed (mm/s)
    Horizontal Vertical 100 200 300 400 500 600 700 800 900 1000 1100 1200 1250
    ATO-ATH12 120 5 110 33 250 - - - - - - - 250 200 167 150 125 117
    10 88 22 500 - - - - - - - 500 400 333 300 250 233
    20 40 10 1000 - - - - - - - 1000 800 667 600 500 467
    32 30 8 1600 - - - - - - - 1600 1280 1067 900 800 747

    Note: The highest speed is based on the maximum speed of servo motor (3000 rpm).

    Features

    • The ball screw linear slide table is a highly integrated linear motion system. The aluminum body is integrated with guide rail, and the slide block and the slide table are integrated.
    • Linear slide guide rail is compact, lightweight, space-saving and high-load.
    • The linear slide system is made of U-shaped high-strength aluminum alloy. The built-in stainless steel guide rail and the base are integrally formed. The guide rail groove adopts 2 rows 45° contact angles, providing equal load capacity in 4 directions. High precision and high rigidity can be achieved through proper steel ball preload.
    • Fully sealed design, low dust generation during operation, so that the whole linear motion system can meet the requirements of dust-free level.
    • The linear slide table of this series adopts ball screw, with high transmission repeatability, up to ±0.005.

    Motor Mounting Dimensions (Unit: mm)

    400W linear slide motor mounting dimensions

    Motor Power Motor Size Shaft Diameter
    400W 60mm 14mm

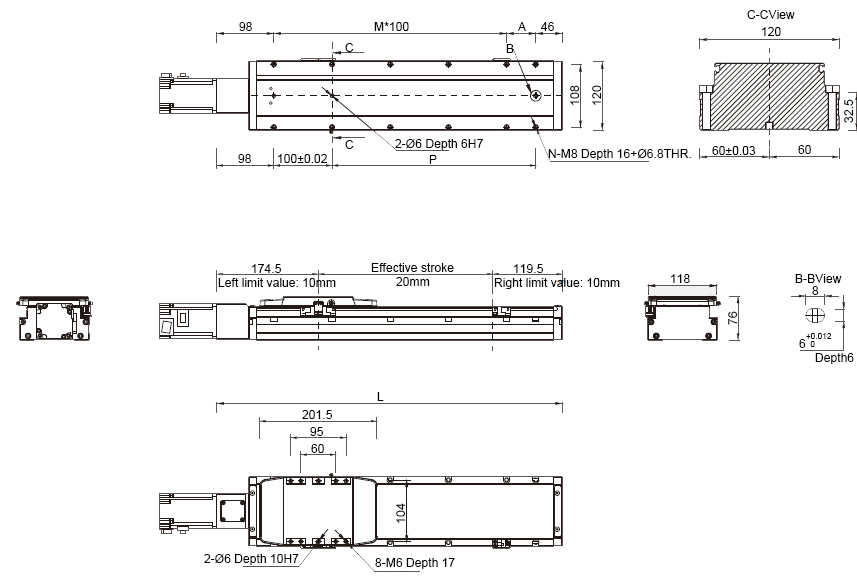

    Dimensions of Ball Screw Driven Linear Slide with Motor Exposed (Unit: mm)

    Dimensions of 1250mm Ф16mm Ball Screw Driven Linear Slide with motor exposed

    Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200 1250
    L 394 494 594 694 794 894 994 1094 1194 1294 1394 1494 1544
    A 50 50 50 50 50 50 50 50 50 50 50 50 100
    M 2 3 4 5 6 7 8 9 10 11 12 13 13
    N 8 10 12 14 16 18 20 22 24 26 28 30 30
    P 150 250 350 450 550 650 750 850 950 1050 1150 1250 1300
    Weight (kg) 5.75 6.45 7.15 7.85 8.55 9.25 9.95 10.65 11.35 12.05 12.75 13.45 13.80

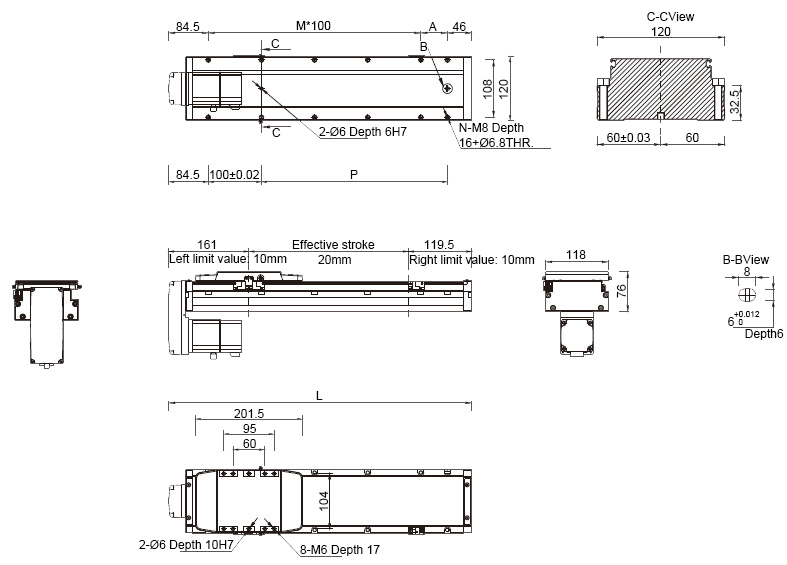

    Dimensions of Ball Screw Driven Linear Slide with Motor on Bottom Side (Unit: mm)

    Dimensions of 1250mm Ф16mm Ball Screw Driven Linear Slide with motor on bottom side

    Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200 1250
    L 380.5 480.5 580.5 680.5 780.5 880.5 980.5 1080.5 1180.5 1280.5 1380.5 1480.5 1530.5
    A 50 50 50 50 50 50 50 50 50 50 50 50 100
    M 1 2 3 4 5 6 7 8 9 10 11 12 12
    N 6 8 10 12 14 16 18 20 22 24 26 28 28
    P 150 250 350 450 550 650 750 850 950 1050 1150 1250 1300
    Weight (kg) 5.95 6.65 7.35 8.05 8.75 9.45 10.15 11.20 11.90 12.60 12.91 13.61 13.96

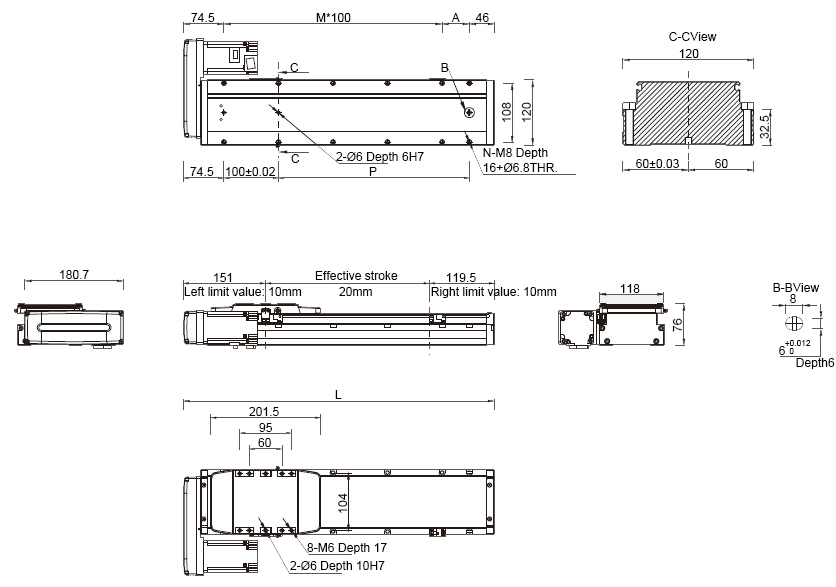

    Dimensions of Ball Screw Driven Linear Slide with Motor on Left Side (Unit: mm)

    Dimensions of 1250mm Ф16mm Ball Screw Driven Linear Slide with motor on left side

    Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200 1250
    L 370.5 470.5 570.5 670.5 770.5 870.5 970.5 1070.5 1170.5 1270.5 1370.5 1470.5 1520.5
    A 50 50 50 50 50 50 50 50 50 50 50 50 100
    M 2 3 4 5 6 7 8 9 10 11 12 13 13
    N 8 10 12 14 16 18 20 22 24 26 28 30 30
    P 150 250 350 450 550 650 750 850 950 1050 1150 1250 1300
    Weight (kg) 5.95 6.65 7.35 8.05 8.75 9.45 10.15 11.20 11.90 12.60 12.91 13.61 13.96

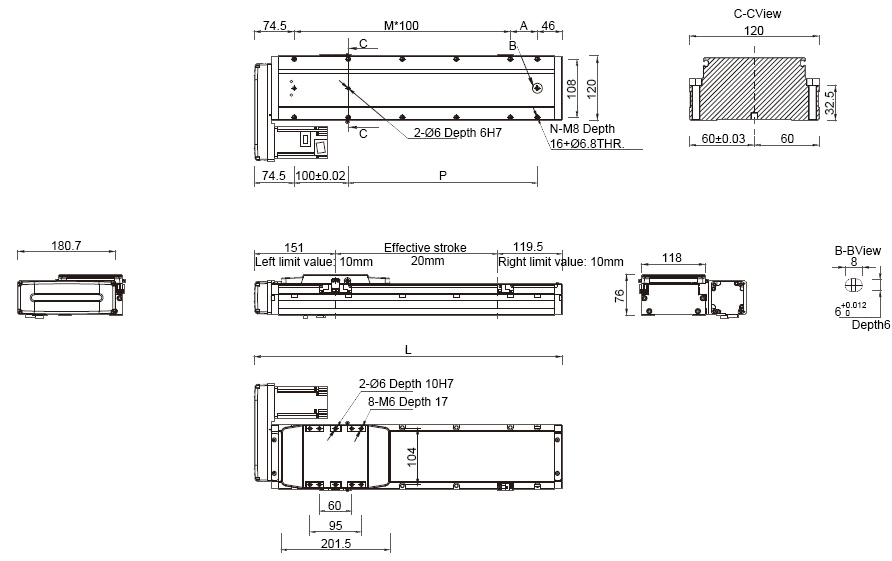

    Dimensions of Ball Screw Driven Linear Slide with Motor on Right Side (Unit: mm)

    Dimensions of 1250mm Ф16mm Ball Screw Driven Linear Slide with motor on right side

    Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200 1250
    L 370.5 470.5 570.5 670.5 770.5 870.5 970.5 1070.5 1170.5 1270.5 1370.5 1470.5 1520.5
    A 50 50 50 50 50 50 50 50 50 50 50 50 100
    M 2 3 4 5 6 7 8 9 10 11 12 13 13
    N 8 10 12 14 16 18 20 22 24 26 28 30 30
    P 150 250 350 450 550 650 750 850 950 1050 1150 1250 1300
    Weight (kg) 5.95 6.65 7.35 8.05 8.75 9.45 10.15 11.20 11.90 12.60 12.91 13.61 13.96
    Existing reviews of 100~1250mm Ball Screw Driven Linear Slide, Ф16mm
    Perfect for our application
    For the price point, it seems to be a solid linear slide, which is very important for what it is, and I would recommend it to anyone who wants to develop any kind of automation.
    From: Defne | Date: 30/05/2022
    Was this review helpful? Yes No (0/0)
    How much weight can the linear slide carry?
    Well, just like the title, before I order these linear slide, I wander how much weight can the linear slide carry? Besides, are these OK for vertical use? I will very appreciate if you can answer my questions.
    From: Joe | Date: 27/04/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    It can carry 110 kg in horizontal and 30kg in vertical. And also, we have different type of its payload in the table of the product page. The smooth linear slide is ideal for either vertical or horizontal.
