    Rigid Coupling, 25 x 36mm

    5 out of 5 based on 1 reviews | Write a review
    $109.86

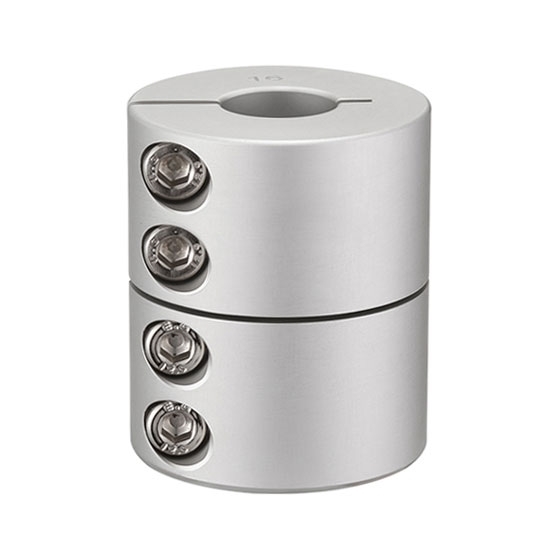

    Light weight rigid coupling speed of 6000rpm, clamp type, 12Nm rated torque,diameter 25mm, length 36mm, load smoothly, reliable force transmission, easy to install and disassemble. Rigid shaft coupling has the advantages of maintenance-free, super oil and corrosion resistance.
    SKU: ATO-SC-GNC-2536
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Rigid clamp coupling has the superior performance of light weight, ultra-low inertia and high sensitivity, diameter 1 inch x length 1.4 inch, bore 6mm to 12mm, rigid coupling is made of aluminum alloy material, which has a long service life.

    Specification

    Model ATO-SC-GNC-2536
    Rated Torque 12 Nm
    Allowable Speed 6000rpm
    Moment of inertia 2.7 X 10-6
    d1/d2 Inner Diameter Size 5-6-6.35-7-8-9-9.525-10-12
    Φd 25
    L 36
    F 6
    Moment of inertia M3
    Tightening Torque 1.5 N.m
    Weight 43g
    Certificate ISO9001, REACH, RoHS
    Warranty 12 Months

    25 x 36mm Rigid Coupling Dimension (unit: mm)
    Rigid coupling dimension

    Tips: How to fix the shaft coupling?

    1. Set screw fixation. The two set screws have a gap of 90º to lock the fixed shaft. In the traditional fixing method, because the front end of the screw contacts the shaft, it may cause damage to the shaft or difficulty in disassembly.

    2. Clamping screw fixation. Use the tightening force of the hexagon socket bolt to shrink the slit and clamp the shaft tightly. This method is convenient to fix and disassemble, and it will not cause damage to the shaft. It is a very common fixing method.

    3. Keyway type fixation. Suitable for high-torque transmission. In order to prevent axial sliding, it is usually used together with set screw fixation and clamping screw fixation.

    4. D-shaped hole fixing. Usually, if the shaft of the motor is D-shaped, if the positioning screw cannot be fixed, the hole of the coupling can be processed into a D-shaped hole corresponding to the size of the motor shaft, and the positioning is coordinated The screws are fixed, so there is no need to worry about slipping.

    5. Expansion sleeve fixation. Tighten and fix the account cover by tightening the four positioning screws on the end of the coupling. It is suitable for the connection and fixation of some stepping motors and servo motors with large torque, such as expansion sleeve diaphragm couplings, expanding sleeve plum blossom coupling, expanding sleeve bellows coupling, etc.
