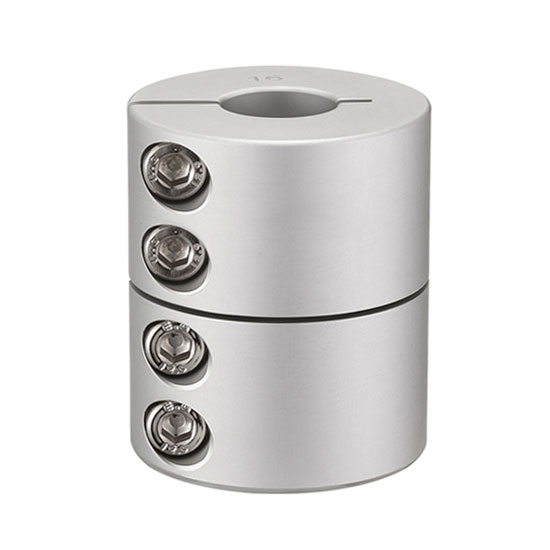

Rigid Coupling, 32 x 41mm

5 out of 5 based on 1 reviews | Write a review

$127.89

Rigid shaft coupling rated torque 19Nm, 32mm diameter, 41mm length, integrated structure, the overall use of high-strength alu-minum alloymaterial to ensure that the rigid coupling will not be corroded and oxidized after long-term use.

φd1 Inner Diameter Size (mm) *
φd2 Inner Diameter Size (mm) *

SKU: ATO-SC-GNC-3241

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Rigid coupling bore 8mm to 15mm, diameter 32mm, length 41mm, high torque, high rigidity, clamping screw tightening method, easy disassembly and assembly, widely used in automation equipment.

Specification

Model	ATO-SC-GNC-3241
Rated Torque	19 Nm
Allowable Speed	4700rpm
Moment of inertia	7.1 X 10^-6
d1/d2 Inner Diameter Size	6-6.35-7-8-9-9.525-10-12-12.7-14-15-16
Φd	32
L	41
F	7.75
Moment of inertia	M4
Tightening Torque	3.5 N.m
Weight	65g
Certificate	ISO9001, REACH, RoHS
Warranty	12 Months

Rigid Shaft Coupling Dimension 32 x 41mm (unit: mm)

Tips: Diaphragm coupling applications

Diaphragm couplings are suitable for shafting transmissions in high temperature, high speed, and corrosive environments, such as water pumps (especially high-power, chemical pumps), fans, compressors, hydraulic machinery, petroleum machinery, printing machinery, textile machinery , Chemical machinery, mining machinery, metallurgical machinery, aviation (helicopters), naval high-speed power transmission systems, steam turbines, piston power mechanical transmission systems, crawler vehicles, and generator sets, high-speed, high-power mechanical transmission systems, dynamic balance Later, it has been widely used in high-speed transmission shaft systems.
