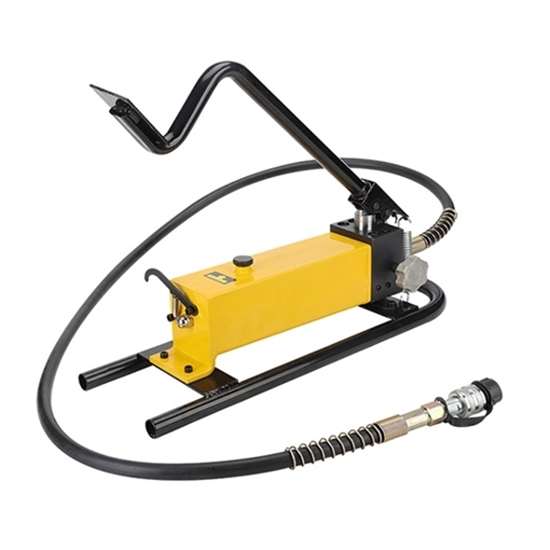

Cost-effective hydraulic foot pump is operated and controlled by pedal. Oil output has high and low presssure 2-stage. Foot operated hydraulic pump has double-acting, small size, light weight, easy to carry, high security and long service life.
|Oil reservoir capacity
||620*220*280 mm (24.4*8.7*11 inch)
||660*200*300 mm (26.8*8*11.8 inch)
||450*150*200 mm (17.7*6*8 inch)
||450*150*200 mm (17.7*6*8 inch)
|Max. output pressure
||700 kg/ cm²/10000 psi/ 689 bar
||Low pressure: 20 kg; High pressure: 700 kg/ cm²
|Oil amount/ min
||Low pressure: 13cc/ 13cc/ 12.26cc/ 12.26cc; High pressure: 2.3cc/ 2.3cc/ 2.26cc/ 2.26cc
|Oil pipe length
||2m/ 3m/ 4m/ 5m
- The hydraulic foot pump can be connected to a variety of tools, including cutting machine, punching machine, bending machine, angle steel cutting tool, jack, puller, crimping tool, etc.
- Two-stage oil output, large quantity and fast speed. Easy to carry, not affected by electricity. The high-pressure pipe can be extended and used.
- Functions of hydraulic foot pump is the same as the electric and hand pump.

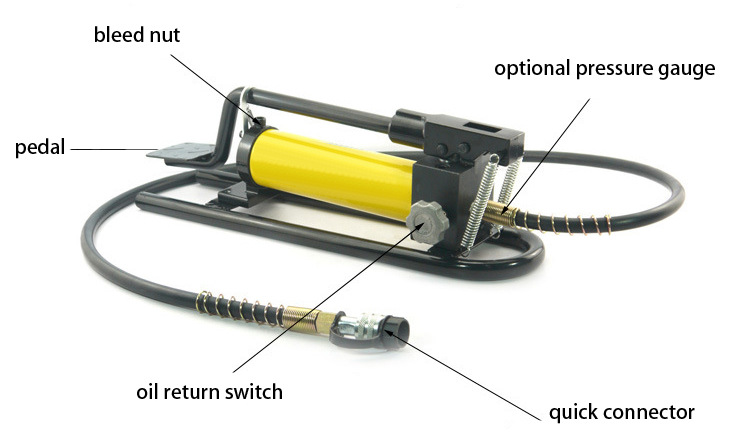

10000 psi Hydraulic Foot Pump Structure Diagram
- Bleed nut
When using hydraulic hand pump, must loosen this nut to prevent the oil reservoir from being sealed. The vent port is the oil filler.
- Optional pressure gauge
According to requirements, a shock-resistant pressure gauge can be added on oil outlet of the hydraulic hand pump head, to observe pressure changes at any time.
- Oil return switch
Tighten the oil return valve clockwise first, and shake the handle up and down. Hydraulic hand pump starts to work and the pressure gradually rises. Tighten the oil return valve clockwise when working. Loosen the oil return valve counterclockwise when releasing pressure.
- Quick female connector
Hydraulic oil tube is equipped with a thread quick connector. Thread specification is 3/8”.
Hydraulic Foot Pump Usage
- Connect the high-pressure oil pipe female joint of the main pump and the male joint of the sub-machine oil pressure cylinder, and tighten them.
- Tighten the oil return switch of the pump clockwise, shake the handle repeatedly to advance piston until the work is completed.
- After completion, loosen the oil return switch counterclockwise to reset the piston.
Tips: What is Hydraulic Foot Pump?
As a simple and convenient hydraulic power source, manual hydraulic pumps are widely used in many fields such as shipbuilding industry, coal mining machinery, petrochemical, metallurgy, electric power and heavy machinery. And with its small size, light weight, easy to carry, strong safety and other advantages are accepted by the majority of users.
Manual hydraulic pump, working pressure is 100~300MPa; built-in pressure relief valve, in order to prevent pressure overload, there is also a safety relief valve in the pump; secondary flow design, the displacement is 33CC when the primary low pressure is low, and the discharge is 33CC when the secondary high pressure is used. The amount of oil is 1.6CC; under the condition of constant power, low-pressure large-flow oil supply, high-pressure small-flow oil supply, saving time and improving efficiency. The overall size is 585*120*170mm, and the total weight with oil is about 11Kg. The use shows that this pump is convenient and flexible, has low labor intensity and is durable, and is an ideal hydraulic power source.
