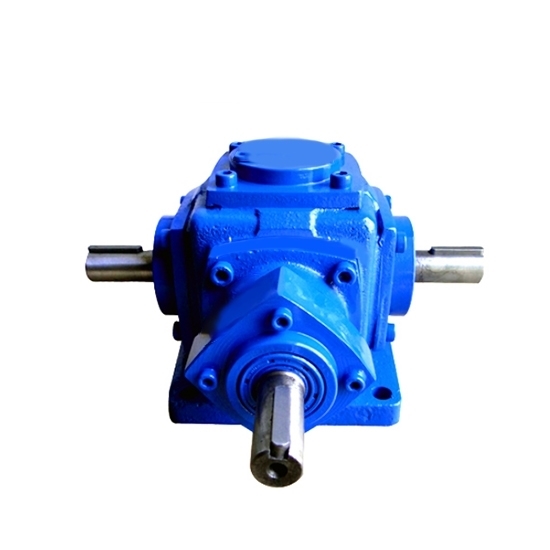

    5 hp 1450 rpm Spiral Bevel Right Angle Gearbox, 1:1/ 2:1

    $694.62
    Competitive price right angle gearbox for sale, driven by spiral bevel gear. Optional gear ratio 1 to 1 or 2 to 1, max input power 5 hp, speed 10~1450 rpm, high torque 32~48.5 N.m, 1/2/3/4 ways shafts, optional output shafts directions. 90-degree gearbox reducer, small and compact.
    SKU: ATO-RAGB-51450
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Right angle gearbox with spiral bevel gear drives. Gear ratio 1:1 or 2:1 for selection, maximum speed 1450 rpm, input horsepower 0.03~5 hp, 1/2/3/4 ways shafts with optional directions. The right angle gearbox reducer is for 90° steering and reduction. If you need a higher torque, please select a lower rpm.

    Features

    • The right angle gearbox uses spiral bevel gears inside. Gears are installed vertically to change the transmission direction at 90°.
    • Spiral bevel gear is made of alloy steel, which has been carburized and hardened, and has high rigidity and wear resistance.
    • The spiral bevel right angle gear box can change the transmission direction and steering in all directions, which can be used in any mechanical structure and application.
    • Compared with the traditional worm gear reducer, the spiral bevel right angle gearbox can provide smoother running ability and larger transmission torque.

    Basic Specification

    Model ATO-RN-4M
    Gear Ratio 1:1, 2:1
    Max. Horsepower 5 hp
    Max. Speed 1450 rpm
    Transmission Efficiency 95%
    Gear Oil HD320~680
    Ambient Temperature -20℃ ~ +80℃
    Noise < 80dB
    Weight 11 kg

    Transmission Specification

    Gear Ratio Input Speed (rpm) Torque (N.m) Input Horsepower (hp)
    1:1 1450 32 5
    1150 34.1 4.19
    870 37.2 3.46
    580 39.5 2.45
    400 40.2 1.72
    300 40.5 1.30
    200 41.2 0.880
    100 41.9 0.448
    10 43.0 0.046
    2:1 1450 42.8 3.32
    1150 43.4 2.67
    870 43.8 2.04
    580 44.4 1.38
    400 45.1 0.96
    300 45.5 0.73
    200 46.1 0.49
    100 46.6 0.25
    10 48.5 0.03

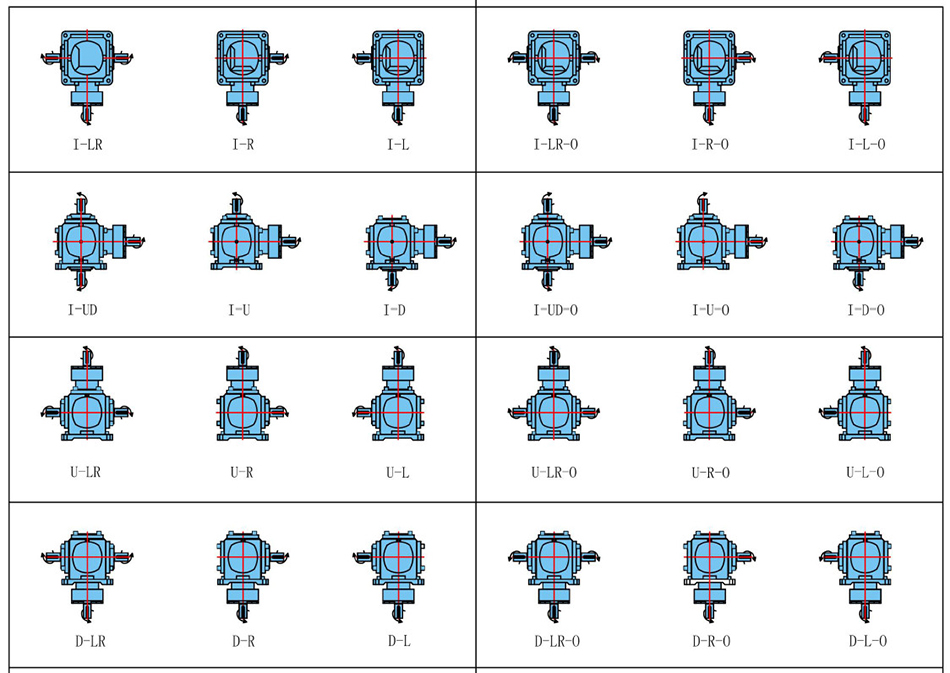

    Spiral Bevel Right Angle Gearbox Shafts Directions

    RN series Spiral Bevel Right Angle Gearbox shafts direction

    Direction Code Definition
    I Input shaft
    L Left output haft
    R Right output shaft
    LR Left and right output shaft
    O Opposite direction
    D Downward: input shaft is below the base
    U Upward: input shaft is above the base

    Tips: How to lubricate the 5 hp spiral bevel right angle gearbox?

    When the 5 hp spiral bevel right angle gearbox is installed horizontally, the bearings may be partially immersed in the lubricating oil. After installation, remove the dipstick and check whether the oil level is correct. If there is no dipstick, other appropriate methods should be used to determine the oil level. When installed horizontally, the oil level should be about half the depth of the 5 hp spiral bevel right angle gearbox (to the parting line).

    Before operation, please make sure that the 5 hp spiral bevel right angle gearbox contains enough oil. If the oil is not filled enough or the oil is filled too much, it may damage the gear transmission mechanism or cause personal injury.

    For the 5 hp spiral bevel right angle gearbox operating at an ambient temperature of -20℃ ~ + 85℃, liquid gear oil can be used.

    5 hp 1450 rpm Spiral Bevel Right Angle Gearbox Dimensions (Unit: mm)

    RN series Spiral Bevel Right Angle Gearbox dimensions diagram

    A B C D E F G X * Y S H U J K I
    257.5 77.5 180 140 40 38 25 6*3 19 15 17 125 155 232
    R O P Q L M N W V T Z A1 A2 A3
    152 142 66 76 125 155 15 10.5 4 53.5 2 256 246 104
