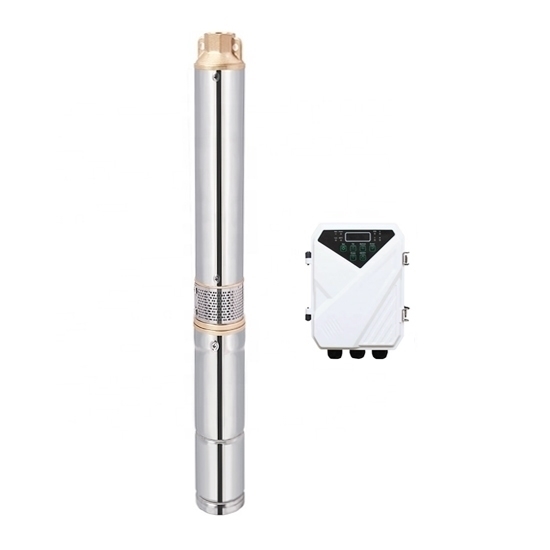

600W Submersible/Deep Water Well Pump, 48V DC

$746.03

Best 48V water well pump with a special DC controller has maximum head 42~80m (135~260ft), maximum flow 800~1585 gallons per hour, 3 inch/4 inch inlet diameter and 1.25 inch outlet diameter. 600 watt submersible water pump can be used for pools, tanks, water features or fountains.

SKU: ATO-SWP-48V600

Max. Flow & Max. Head *

Qty:

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Water Well Pump Manual

600 watt submersible well pump adopts stainless steel impeller and has 48V working voltage, 800~1585 gph max. flow, 42~80m max. head. 3 inch water well pump with an external DC controller is used for ponds, farms, fountains or pools.

Well Pump Features

Model	3DPC3.5-80-48-600	3DSC4-80-48-600	4DPC6-42-48-600
Max. flow	3.5m³/h (800 gph, American system)	4.0m^₃/h (1057 gph, American system)	6.0m³/h (1585 gph, American system)
Max. head	80m (260ft)	80m (260ft)	42m (135ft)
Length	60cm	70cm	50cm
Inlet diameter	3 inch	3 inch	4 inch
Outlet diameter	1.25 inch	1.25 inch	1.25 inch
Structure	Single-suction plastic impeller	Single-suction stainless steel impeller	Single-suction plastic impeller
Material of outlet/connector/oil cylinder	Brass	Stainless steel	Brass
Power	600W
Voltage	48V DC
Internal motor	Brushless DC motor
Speed	4000rpm
Material of shaft	304 stainless steel
No water protection function	The water pump stops working automatically when there is no water in the well, and it will automatically restart working 30 minutes later.
Required open circuit voltage (VOC) of solar panel	＜100V DC
Required power of solar panel	≥1.3*pump power
Efficiency	45%
Warranty	2 years
Cable length	2m

Controller Features

Model	DF-48
Best MPPT voltage range	60-90V DC
Max. input current	15A
Working temperature	-15~+60℃ (5~140℉)
Display	LED display can show power, voltage, current and speed value.
Functions	Automatic charging (for battery) Variable frequency Automatic power ON/OFF Soft start High voltage/low voltage/over-current/high temperature protection
Protection class	IP65

Package included

1 * Water well pump with 2m cable
1 * DC controller
1 * Stainless steel float switch (water level sensor for the tank)
1 * Pump outlet joint connector
1 * Splice kit for cable join
1 * Splice kit for waterproof
1 * User manual

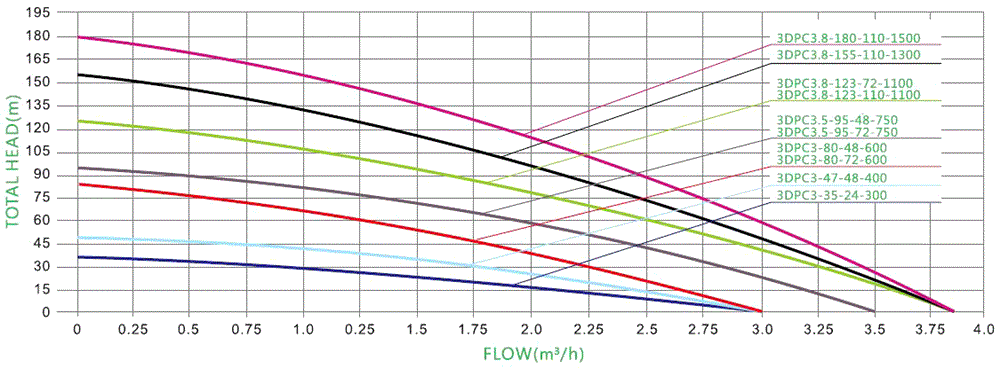

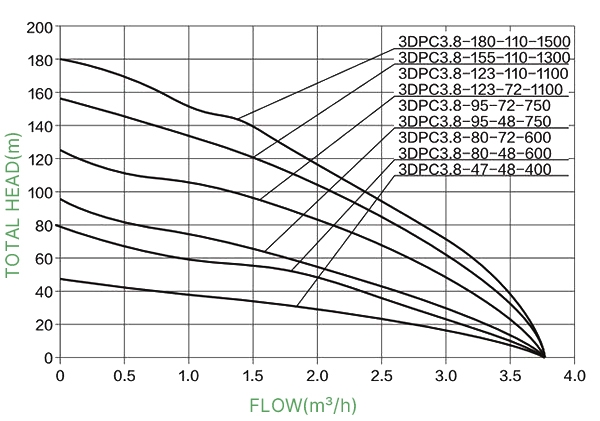

600W water well pump performance curves

Max. Flow: 3.5m³/h, Max. Head: 80m, Model: 3DPC3.5-80-48-600

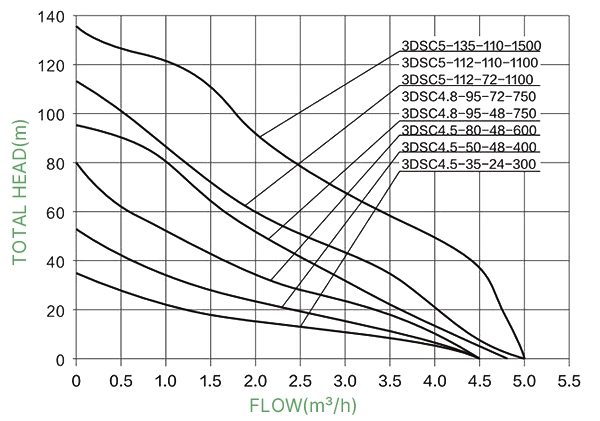

600W 48V DC 3 inch water well pump performance curves

Max. Flow: 4.0m³/h, Max. Head: 80m, Model: 3DSC4-80-48-600

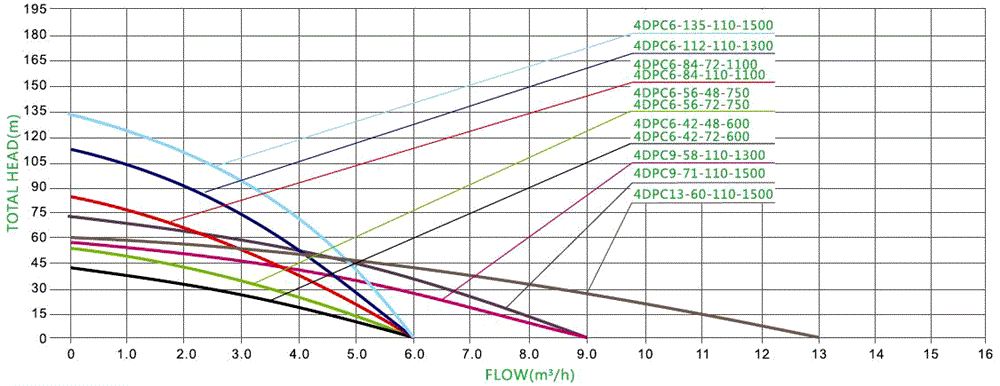

600W 48V DC 3 inch water well pump performance curves

Max. Flow: 6.0m³/h, Max. Head: 42m, Model: 4DPC6-42-48-600

Tips: Protection functions of water well pump and DC controller

Over-current protection: When the water well pump model is mismatched or UVW three-phase in short-circuit connection.
Phase protection: UVW three-phase is in an open circuit.
Stall protection: When the pump model is mismatched. A pump extension cord is too long. Solar water pump power is too low. The pump bearing is stuck.
Low voltage protection: The input voltage of the solar pump is too low.
High voltage protection: The input voltage is too high.
Dry-run protection: Not all of the air in the pump is exhausted. There is no water in the deep well/pond.
High-temperature protection: The temperature of the DC controller MCU is more than 90℃.
Reverse connection protection: The wiring is wrong.
