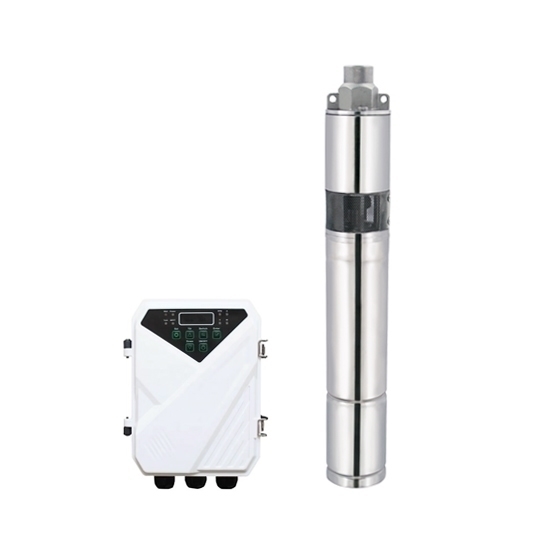

    210W Water Well Pump, 36V

    $727.27
    Low price 210 watt water well pump for sale. DC controller can show power, voltage, current and speed values. 36V submersible well pump with stainless steel impeller, maximum head 35m (115ft), maximum flow 1057 gallons per hour, 3 inch inlet diameter and 1.25 inch outlet diameter can be used for deep wells, small fountains, ponds or water tanks.
    SKU: ATO-SWP-36V210
    Free Shipping Worldwide
    Delivery date: 6-12 days

    210W water well pump with DC controller for sale. It is available with 36V working voltage, 317 gph max. flow, 77m max. head. Low cost submersible well pumps can be used for deep wells, small fountains, ponds or water tanks.

    Well Pump Features

    Model 3DSS1.2-77-36-210
    Voltage 36V DC
    Power 210W
    Max. flow 1.2m3/h (317 gph, American system)
    Max. head 77m (250ft)
    Length 60cm
    Inlet diameter 3 inch
    Outlet diameter 0.75 inch
    Screw structure Stainless steel single screw
    Internal motor Brushless DC motor
    Speed 4000rpm
    Material of shaft 304 stainless steel
    Material of outlet/connector/oil cylinder Stainless steel
    No water protection function The water pump stops working automatically when there is no water in the well, and it will automatically restart working 30 minutes later.
    Required open circuit voltage (VOC) of solar panel <50V DC
    Required power of solar panel ≥1.3*pump power
    Efficiency 45%
    Warranty 2 years
    Cable length 2m

    Controller Features

    Model DF-36
    Best MPPT voltage range 30-58V DC
    Max. input current 15A
    Working temperature -15~+60℃ (5~140℉)
    Display LED display can show power, voltage, current and speed value.
    Functions Automatic charging (for battery)
    Variable frequency
    Automatic power ON/OFF
    Soft start
    High voltage/low voltage/over-current/high temperature protection
    Protection class IP65

    Package included

    • 1 * Water well pump with 2m cable
    • 1 * DC controller
    • 1 * Stainless steel float switch (water level sensor for the tank)
    • 1 * Pump outlet joint connector
    • 1 * Splice kit for cable join
    • 1 * Splice kit for waterproof
    • 1 * User manual

    210W water well pump performance curves (see dart blue line):

    210W 36V water well pump performance curves

    Tips: Water well pump working principle

    The main difference between the solar water pump and the conventional water pump is the power source. The solar water pump relies on the solar panel as a power supply to operate. The solar panel can be built into the device or it is an independent structure that is connected to the pump by wires. Afterward, the solar panel supplies power to the pump, making it work independently of any existing electrical system.

    Using the power generated by the solar cell, the brushless DC motor or the high-efficiency asynchronous motor inside the solar water pump is driven by the maximum power point tracking (MPPT), and the solar pump inverter and controller drive the water from the well to the ground for agricultural irrigation or human and animal drinking.
