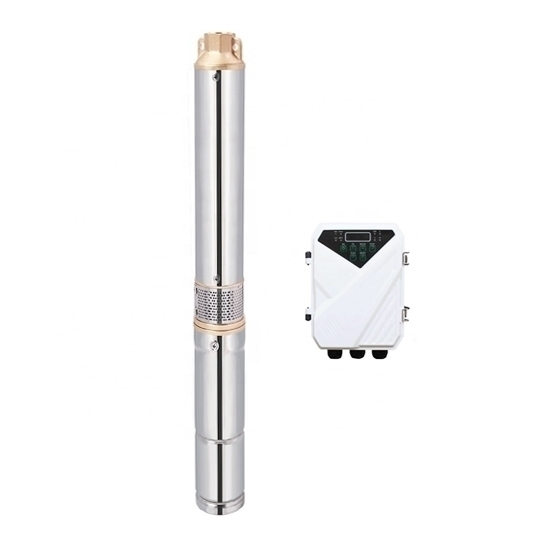

1/2 hp (400W) Water Well Pump, 48V

$727.27

1/2 hp submersible well pump has 47~50mmaximum head, 48V DC working voltage and pumps 800~1000 gallons per hour. 3-inch water well pump with an external DC controller is used for ponds, farms, fountains or pools. DC controller with LED display shows power, voltage, current and speed values.

SKU: ATO-SWP-48V400

Max. Flow & Max. Head *

Qty:

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Water Well Pump Manual

Get a 400-watt deep well pump with 48V working voltage online. The water well pump has 800 ~1000 gph max. flow, 47 ~ 50m max. head. DC controller with LED display shows power, voltage, current and speed values.

Well Pump Features

Model	3DPC3-47-48-400	3DSC4-50-48-400
Max. flow	3.0m³/h (800 gph, American system)	4.0m³/h (1057 gph, American system)
Max. head	47m (154ft)	50m (164ft)
Impeller structure	Single-suction plastic impeller	Single-suction stainless steel impeller
Material of outlet/connector/oil cylinder	Brass	Stainless steel
Power	400W (1/2 hp)
Voltage	48V DC
Length	60cm
Inlet diameter	3 inch
Outlet diameter	1.25 inch
Internal motor	Brushless DC motor
Speed	4000rpm
Material of shaft	304 stainless steel
No water protection function	The water pump stops working automatically when there is no water in the well, and it will automatically restart working 30 minutes later.
Required open circuit voltage (VOC) of solar panel	＜100V DC
Required power of solar panel	≥1.3*pump power
Efficiency	45%
Warranty	2 years
Cable length	2m

Controller Features

Model	DF-24
Best MPPT voltage range	30-48V DC
Max. input current	15A
Working temperature	-15~+60℃ (5~140℉)
Display	LED display can show power, voltage, current and speed value.
Functions	Automatic charging (for battery) Variable frequency Automatic power ON/OFF Soft start High voltage/low voltage/over-current/high temperature protection
Protection class	IP65

Package included

1 * Water well pump with 2m cable
1 * DC controller
1 * Stainless steel float switch (water level sensor for the tank)
1 * Pump outlet joint connector
1 * Splice kit for cable join
1 * Splice kit for waterproof
1 * User manual

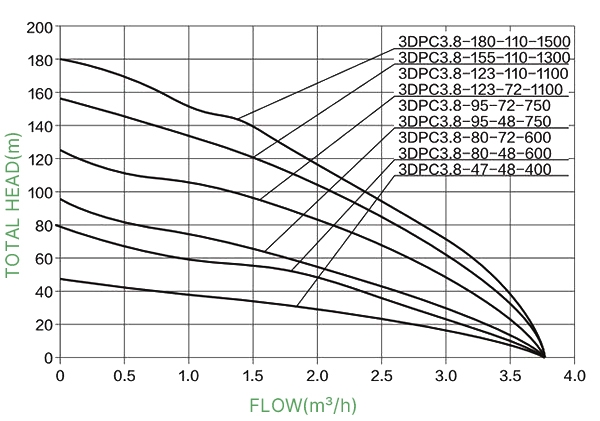

1/2 hp water well pump performance curves

Max. Flow: 3.0m³/h, Max. Head: 47m, Model: 3DPC3-47-48-400

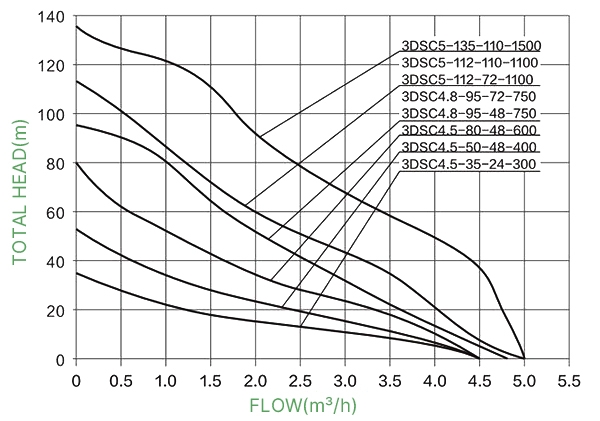

400W 48V DC 3 inch water well pump performance curves

Max. Flow: 4.0m3/h, Max. Head: 50m, Model: 3DSC4-50-48-400

400W 48V DC 3 inch water well pump performance curves

Tips: Protection functions of water well pump and DC controller

Over-current protection: When the water well pump model is mismatched or UVW three-phase in short-circuit connection.
Phase protection: UVW three-phase is in an open circuit.
Stall protection: When the pump model is mismatched. A pump extension cord is too long. Solar water pump power is too low. The pump bearing is stuck.
Low voltage protection: The input voltage of the solar pump is too low.
High voltage protection: The input voltage is too high.
Dry-run protection: Not all of the air in the pump is exhausted. There is no water in the deep well/pond.
High-temperature protection: The temperature of the DC controller MCU is more than 90℃.
Reverse connection protection: The wiring is wrong.

ATO Water Well Pump User Manual
