    600W Submersible/Deep Water Well Pump, 72V

    $764.79
    High quality 600 watt well pump for sale, 72 volt water well pump has single-suction plastic impeller, maximum head 80m/ 42m, maximum flow 800/ 1585 gallons per hour, 3 inch/ 4 inch inlet diameter and 1.25 inch outlet diameter. Submersible well pump can be used for water tank, water feature, pond or farms.
    SKU: ATO-WWP-72V600
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Factory price deep well pump with internal brushless DC motor, special digital DC controller, 72V working voltage, 4000 rpm speed and 45% efficiency.

    Well Pump Features

    Model 3DPC3-80-72-600 4DPC6-42-72-600
    Max. flow 3m³/ h (800 gph, American system) 6m³/ h (1585 gph, American system)
    Max. head 80m (90ft) 42m (135ft)
    Length 60cm 50cm
    Inlet diameter 3 inch 4 inch
    Outlet diameter 1.25 inch 1.25 inch
    Voltage 72V DC
    Power 600W
    Impeller structure Single-suction plastic impeller
    Internal motor Brushless DC motor
    Speed 4000 rpm
    Material of shaft 304 stainless steel
    Material of outlet/ connector/ oil cylinder Brass
    No water protection function The pump stops working automatically when there is no water in the well, and it will automatically restart working 30 minutes later.
    Required open circuit voltage (VOC) of solar panel <150V DC
    Required power of solar panel ≥1.3*pump power
    Efficiency 45%
    Warranty 2 years
    Cable length 2m

    Controller Features

    Model DF-12
    Best MPPT voltage range 90-120V DC
    Max. input current 15A
    Working temperature -15~+60℃ (5~140℉)
    Display LED display can show power, voltage, current and speed value.
    Functions Automatic charging (for battery)
    Variable frequency
    Automatic power ON/ OFF
    Soft start
    High voltage/ low voltage/ over-current/ high temperature protection
    Protection class IP65

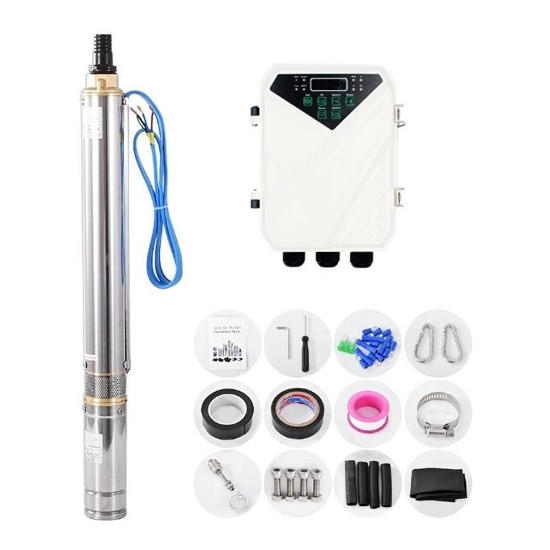

    Package included

    • 1 * Water well pump with 2m cable
    • 1 * DC controller
    • 1 * Stainless steel float switch (water level sensor for the tank)
    • 1 * Pump outlet joint connector
    • 1 * Splice kit for cable join
    • 1 * Splice kit for waterproof
    • 1 * User manual

    600W 72V DC water well pump performance curves:

    Max. Flow: 3.0m³/h, Max. Head: 80m, Model: 3DPC3-80-72-600

    600W 72V DC 3 inch solar water pump high head performance curves

    Max. Flow: 6.0m³/h, Max. Head: 42m, Model: 4DPC6-42-72-600

    600W 72V DC 4 inch solar water pump performance curves

    Tips: What is Water Well Pump?

    A water well pump is a machine that transports or pressurizes a liquid. It transmits the mechanical energy of the prime mover or other external energy to the liquid to increase the liquid energy, and is mainly used to transport liquids including water, oil, acid-base liquid, emulsion, suspoemulsion and liquid metal.

    Liquids, gas mixtures and liquids with suspended solids can also be transported. The technical parameters of pump performance include flow, suction, head, shaft power, water power, efficiency, etc.; according to different working principles, it can be divided into volumetric pumps, vane pumps and other types. Positive displacement pump uses the change of its working chamber volume to transfer energy; vane pump uses the interaction between rotating blades and water to transfer energy, including centrifugal pump, axial flow pump and mixed flow pump.
