    1.5 hp (1100W) Water Well Pump, 110V

    $839.83
    110 volt submersible well pump with 1100 watt, the deep well pump has optional maximum head 123m/ 130m/ 84m/ 101m, maximum flow 1004~1585 gallons per hour, 3 inch/ 4 inch inlet diameter and 1.25 inch outlet diameter. 1.5 hp well pump for agriculture can be used for irrigation, farms, cattle, livestock or water tank.
    SKU: ATO-WWP-110V1100
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Lower cost water well pump for sale, with 80cm/ 60cm length for selection, brushless DC motor internal motor. The deep well water pump with a special DC controller which can show power, voltage, current and speed values in real time.

    Well Pump Features

    Model 3DPC3.8-123-110-1100 3DSC4.8-110-110-1100 4DPC6-84-110-1100 4DSC5-101-110-1100
    Max. flow 3.8m³/ h (1004 gph, American system) 4m³/ h (1057 gph, American system) 6m³/ h (1585 gph, American system) 5m³/ h (1321 gph, American system)
    Max. head 123m (400ft) 130m (425ft) 84m (275ft) 101m (330ft)
    Length 80cm 80cm 60cm 60cm
    Inlet diameter 3 inch 3 inch 4 inch 4 inch
    Outlet diameter 1.25 inch 1.25 inch 1.25 inch 1.25 inch
    Impeller structure Single-suction plastic impeller Single-suction plastic impeller Single-suction plastic impeller Single-suction stainless steel impeller
    Material of outlet/connector/oil cylinder Brass Stainless steel Brass Stainless steel or brass
    Voltage 110V DC
    Power 1.5 hp (1100W)
    Internal motor Brushless DC motor
    Speed 4000rpm
    Material of shaft 304 stainless steel
    Material of outlet/connector/oil cylinder Brass
    No water protection function The pump stops working automatically when there is no water in the well, and it will automatically restart working 30 minutes later.
    Required open circuit voltage (VOC) of solar panel <100V DC
    Required power of solar panel ≥1.3*pump power
    Efficiency 0.45
    Warranty 2 years
    Cable length 2m

    Controller Features

    Model DF-110
    Best MPPT voltage range 110-150V DC
    Max. input current 15A
    Working temperature -15~+60℃ (5~140℉)
    Display LED display can show power, voltage, current and speed value.
    Functions Automatic charging (for battery)
    Variable frequency
    Automatic power ON/ OFF
    Soft start
    High voltage/ low voltage/ over-current/ high temperature protection
    Protection class IP65

    Package included

    • 1 * Water well pump with 2m cable
    • 1 * DC controller
    • 1 * Stainless steel float switch (water level sensor for the tank)
    • 1 * Pump outlet joint connector
    • 1 * Splice kit for cable join
    • 1 * Splice kit for waterproof
    • 1 * User manual

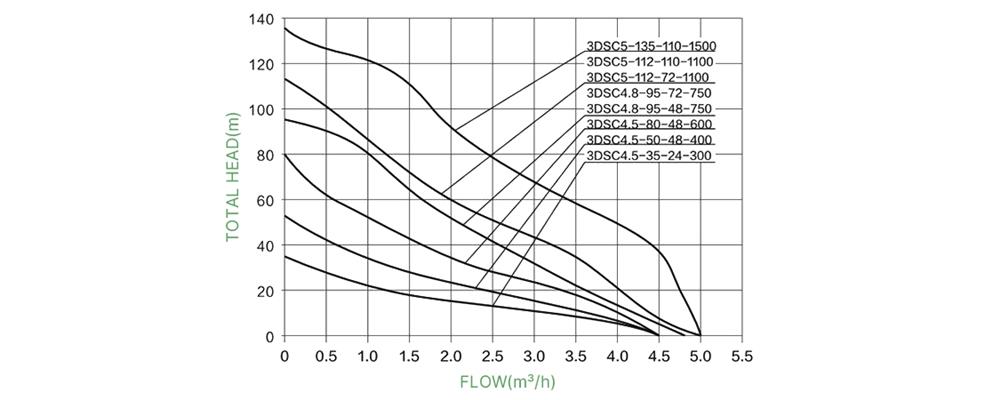

    1100W 110V DC water well pump performance curves:

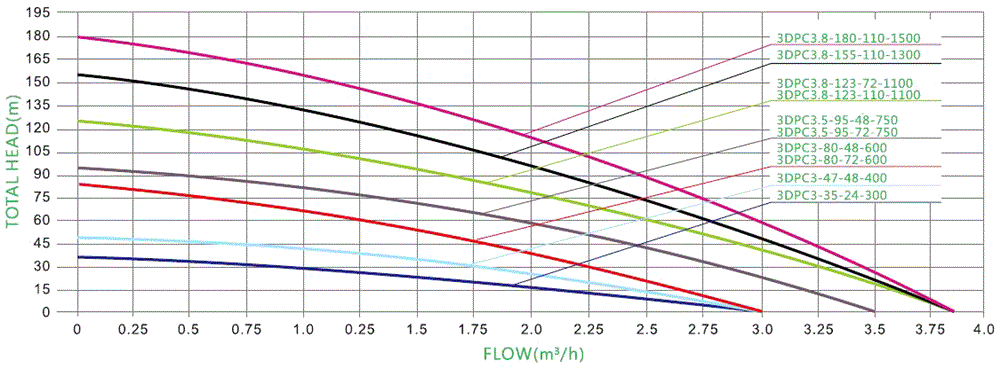

    Max. Flow: 3.8m³/h, Max. Head: 123m, Model: 3DPC3.8-123-110-11001100W 110V DC water well pump high head performance curves

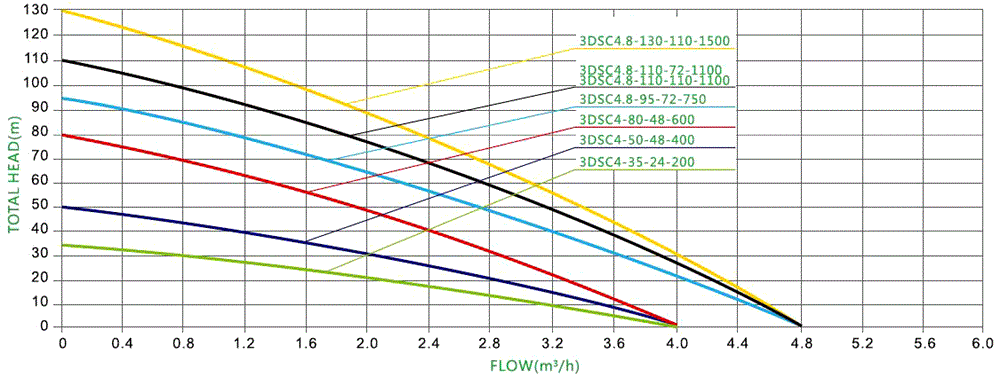

    Max. Flow: 4.8m³/h, Max. Head: 110m, Model: 3DSC4.8-110-110-1100

    1.5 hp 110V DC 3 inch water well pump performance curves

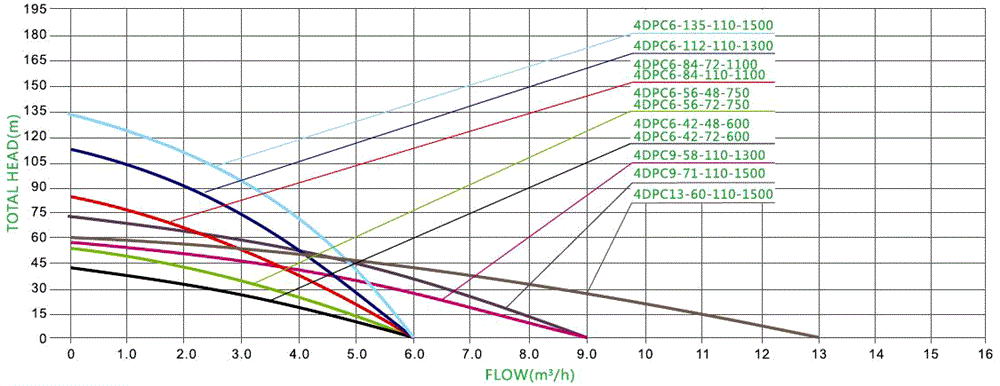

    Max. Flow: 6.0m3/h, Max. Head: 84m, Model: 4DPC6-84-110-1100

    1100W 110V DC 4 inch water well pump performance curves

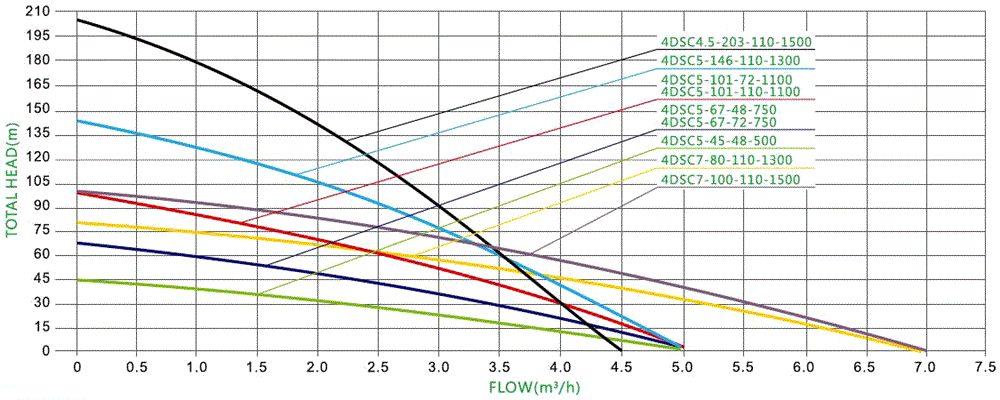

    Max. Flow: 5.0m3/h, Max. Head: 101m, Model: 4DSC5-101-110-1100

    1100W 110V DC 4 inch water well pump high head performance curves

    Tips: Precautions for Water Well Pump.

    1. Pay attention to maintenance after the water pump is used. For example, when the water pump is used up, the water in the water pump should be cleaned. It is best to remove the water pipe and rinse it with clean water.
    2. The tape on the water pump should also be removed, then rinsed with water and dried in the light. Do not put the tape in a dark and humid place. The tape of the water pump must not be stained with oil, let alone some sticky things on the tape.
    3. Carefully check whether there are cracks on the impeller, and whether the impeller is loose on the bearing. If there are cracks and looseness, it should be repaired in time. If there is dirt on the pump impeller, it should be cleaned up.
