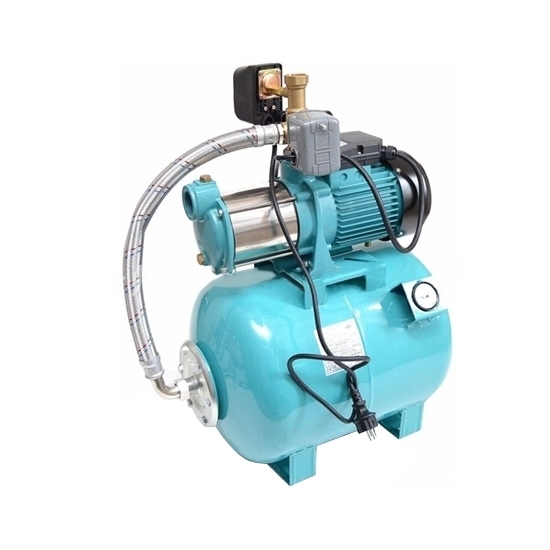

1300W Shallow Well Jet Pump with Pressure Tank

1300W shallow well jet pump with pressure tank can be used for irrigation and sprinkler system in garden and yard. This stainless steel water pump needs to be installed on the ground to convey clear water, high performance and convenient.

Specification

• Model: ATO-MC-1300100L
• Flow: 5m³/h
• Head: 90m
• NPSH: 10m
• Suction Diameter: 25mm (1.5 inch)
• Discharge Diameter: 25mm (1.5 inch)
• Stage: Single Stage
• Voltage (Optional): 110V 60Hz, 220-240V 50Hz, 220-240V 60Hz
• Power: 1.8 hp (1300W)

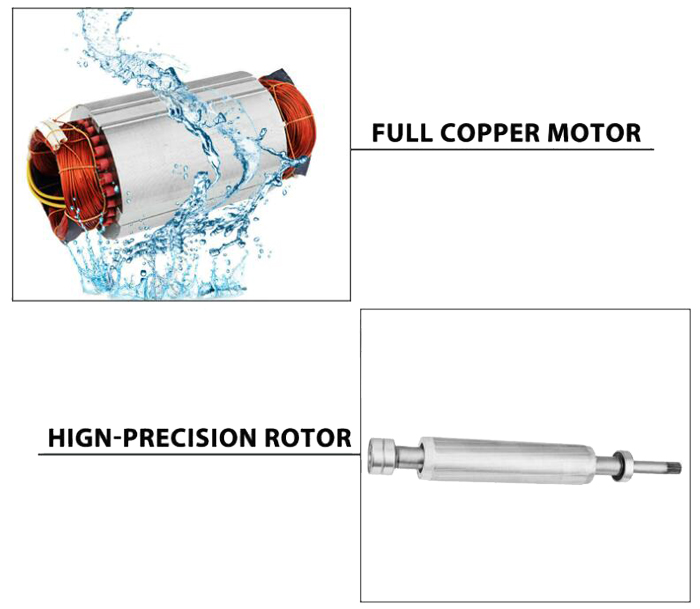

• Motor Wire: 100% Copper Wire
• Cable: 1m
• Pressure Tank: 100L
• Body Material: Stainless Steel
• Performance: Automatic
• Drive Mode: Electric
• Conveying Medium: Clear Water
• Pump Shaft Position: Horizontal
• Impeller Structure: Semi-Open Impeller
• Number of Impellers: 1
• Dimension: 70cm * 42cm * 64cm
• Weight: 28kg

Detail

Tips: What is a shallow well jet pump?

A shallow well jet pump is a pump that draws water from a water source close to the surface, usually in the depth range of 25 feet or less. The pump is installed on the ground, and its filter unit is inserted into the well. It is mounted on a pressure vessel and then a watertight seal is placed at the wellhead to prevent contamination of the surface water. Our shallow well jet pumps come with built-in jets, pressure tanks and check valves.
