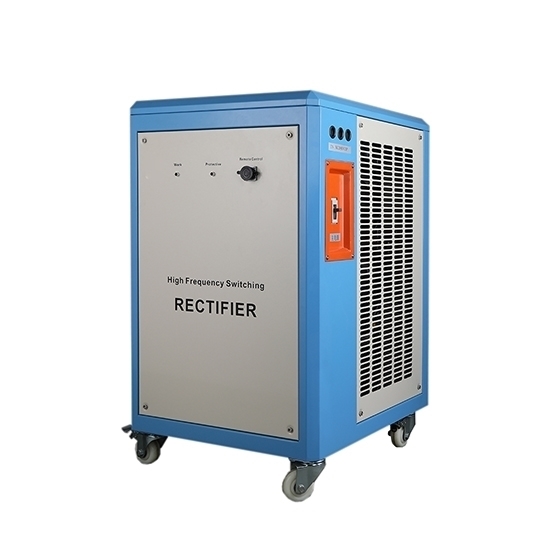

    4000A Three Phase Plating Rectifier, 480V AC to 24V DC

    5 out of 5 based on 2 reviews | Write a review
    Three phase air cooled hard chrome plating rectifier matched with remote controller, features 400V/ 480V AC iutput, 0-4000A adjustable current and 0-24V continuously adjustable ouput (8-500V output voltage are customized). It has high enetration ability, strong adhesive force, and can effectively enhance the brightness of the plated surface.
    SKU: ATO-HI-4K
    30-day Returns
    Delivery date: 6-12 days

    4000 amps 3-phase AC 480 volt to DC 24 volt electroplating rectifier machine adopts pulse width modulation (PWM) as the control circuit and the main circuit adopts the world famous IGBT power modules, provides higher conversion efficiency. Forced air cooling solution to system thermal problems by using axial fans.

    Application: This kind of plating rectifier is mainly used in brush plating process, suitable for repairing plated work pieces with defects, depositing different metal patterns on metal surfaces and electrolysis degreasing and plating process etc.

    Parameter List

    Model ATO-HI-4000
    PDF 1. User Manual for ATO plating rectifier power supply
    2. Modbus RTU Protocol V6.5
    Input Voltage Three phase AC 380V/ 400V/ 415V/ 440V/ 460V/ 480V (optional, 220-1000V voltages are customizable)
    Input Frequency 50Hz/60Hz
    Output Current 0-4000A (continuously adjustable by 1A)
    Output Volatge DC 0-12V/ 0-18V/ 0-24V/ 0-36V/ 0-48V (optional, 8-500V voltages are customizable)
    Note: Output voltage is adjustable by 0.1V.
    Output Frequency 15kHz
    Output Current Stability ≤1%
    Output Voltage Stability ≤1%
    Efficiency ≥92%
    Power Factor ≥0.9
    Operation Mode Remote control or manual control
    Module IGBT module
    Cooling Method Air cooling
    Start-up Postponing Time ≤10s
    Limiting Current Value Io±5A (Io is the rated current)
    Limiting Voltage Value Vo±5A (Vo is the rated current)
    Signal Interface RS485, PLC 0-10V, 4-20mA (Optional)
    Modulation Mode PWM control
    Complete Protection Functions Over current, over voltage, over heat, short circuit, phase lack, input undercurrent protection, over temperature, diode defect...
    Proection Grade IP20
    Ambient Temperature -10℃-50℃
    Relative Humidity ≤80%
    Size 650*550*1050mm
    Net Weight 220kg
    Certification CE, ISO
    Warranty 12 months

    Product Main technical characteristics

    • Operation mode: Remote control or manual control for optional.
    • Output control mode: One-way pulse and two-way pulse output control for optional.
    • Constant output control mode: Constant current and constant voltage control modes can be selected.
    • Soft start time: Soft start working time can be set in the range of 0-200s.
    • High control accuracy: Control accuracy ≤ ± 1%.
    • Rectification mode: IGBT inverter soft switch rectification, PWM pulse step modulation, IGBT chopper control mode.
    • Pulse pacing frequency range: 1000-8000Hz.
    • Man-machine operation interface: PLC color touch screen.
    • Main controller: DSP microcomputer digital trigger control, PWM pulse width adjustment control, pulse phase shift resolution ≤1μs.
    • Main protection functions: AC power phase loss, overvoltage, undervoltage, fast fuse blowing alarm and circuit breaker protection; output overcurrent, current limit protection, output short circuit, instantaneous overload protection; IGBT switch module, fast rectifier components, switching rectifier transformer, busbar copper bus overtemperature and overheating, fan overheating or water pressure is too high/low, blocking PWM trigger pulse protection.
    • Communication method: CAN bus, PROFIBUS, ETHERNET industrial Ethernet, RS485, RS232 optical fiber communication can be configured according to customer needs to achieve remote group control or monitoring.
    • With 1-5 stage constant current slow rise and slow down stage number control, each stage oxidation current and oxidation time can be set separately.
    • Real-time recording of multiple process parameters and real-time curves such as forward and reverse current / voltage, pulse current / voltage amplitude, pulse duty cycle, pulse frequency, oxidation time, bath temperature, etc.
    • Remote operation control box: The remote operation control box can be configured according to the customer's site conditions, the plating rectifier and the remote control box are separated to prevent, the field operation is more convenient, and the rectifier's corrosion protection is significantly enhanced.
    • 5 sets of process parameters can be stored or recalled to shorten the processing programming time.
    • Can be connected to the computer through the RS485 communication interface, or stored in the U disk and transferred to the computer, which is convenient for the customer to save the file and analyze the product process quality of the oxidized workpiece.
    • Workpiece coating quality: Compactness, smoothness and corrosion resistance are significantly better than ordinary plating process.

    Rectifier Controller Features

    Rectifier controller features

    Volmeter Ammeter Timer Start-up
    Alarm Lamp Output Regulation Steady Current / Steady Voltage Manual / Timing


    4000A Three Phase Plating Rectifier Details

    Tips: High frequency plating rectifier in power system

    In the power system, the DC power supply is used as a power source for relay protection, automatic devices, control operation circuits, lights, sound signals, and accident lighting. It is a relatively important equipment in power plants and substations. Accidents caused by DC power supply failures occur from time to time, so the reliability and stability of the DC power supply have high requirements. In recent years, many DC power supply manufacturers have introduced intelligent high-frequency plating rectifier switching power supplies. This power supply system has many advantages: Safety, reliability, high degree of automation, smaller size and weight, high overall efficiency, and low noise. To meet the needs of power grid development, it is worth promoting. Therefore, the DC power supply used in the power system is gradually changing from the traditional phase-controlled power supply to the modular high-frequency electroplating rectifier switching power supply.

    The working principle of the high-frequency plating rectifier switching power supply is: AC power is connected to the rectifier module, converted into DC after filtering and three-phase full-wave rectifier, and then connected to a high-frequency inverter circuit to convert DC to high-frequency AC. Finally, after passing through the high-frequency transformer, rectifier bridge and filter, the output is smooth DC. This high-frequency switching power supply is mainly composed of a high-frequency switching charging module, a centralized monitor and a battery pack, etc., wherein the charging module and the centralized monitor have a built-in microprocessor, and the degree of intelligence is high. When the high-frequency switching power supply system is running normally, the output of the charger runs in parallel with the battery pack to supply power to the regular load.

    Existing reviews of 4000A Three Phase Plating Rectifier, 480V AC to 24V DC
    Some power supply information I want to know
    We are still designing a system trying to utilize one of these models. I believe we will use the 480V AC 3ph 60hz input >> 36V DC 2000A water cooled power supply. What I still need to know is the following:
    - What is the maximum water outlet temperature permissable to run the unit?
    - Is there a temperature the unit will shut down?
    - What are the water inlet/outlet port sizes?
    - Can the unit be run at a lower water flow rate (~5gpm) if the inlet temperature is constantly controlled to~20deg C?
    - What is the actual input amperage rating of this unit at 480V AC under full load?
    From: amos | Date: 02/03/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. The maximum water outlet temperature permissable to run the unit is 35°C.
    2. The equipment has temperature protection, and the power supply will automatically
    stop when the outlet water temperature is 75 degrees Celsius.
    3. Outlet port size DN20.
    4. If the inlet temperature is constantly controlled to~20deg C, the unit can run at a lower water flow rate.
    5. 480V AC actual input rated maximum current 95A.
    I have another question about 4000A 3 phase plating rectifier
    I had one remaining question regarding this 4000A three phase plating rectifier. The product page has a value for output frequency, but my use for the device requires continuous output. Is that possible with this device or will there always be some sort of frequency associated with the output?
    From: Zleahv | Date: 02/09/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. If it is a conventional DC voltage output, there is no frequency output.
    2. If the requirement is pulse frequency output, we can customize the pulse frequency output according to your requirements. In this case, you need to tell us the range of the output pulse frequency.
