    Absolute Encoder, 14 Bit, Single Turn, RS485/ CAN

    5 out of 5 based on 2 reviews | Write a review
    $193.65

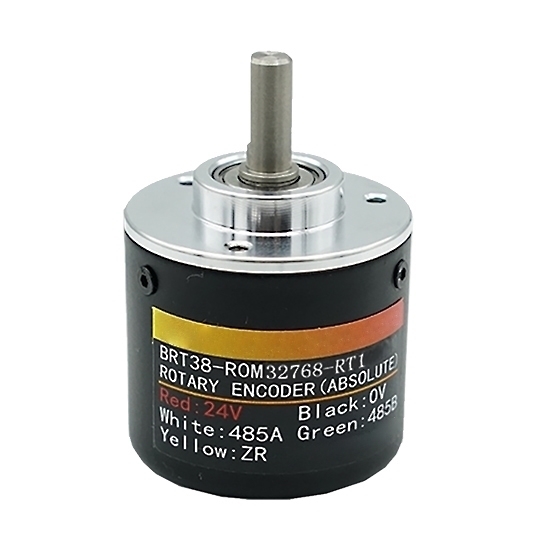

    Single turn rotary encoder with single turn, 14 bit absolute encoder with natural binary code encoded output, working voltage 5V/ 24V can be chosen, the shaft encoder with shaft diameter 6mm/ 8mm, blind hole 8mm are optional. The absolute rotary encoder is used in computer input devices such as optomechanical mice and trackballs, controlled stress rheometers, and rotating radar platforms.
    *
    *
    *
    *
    *
    SKU: ATO-RE-3914
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Economical price absolute rotary encoder has RS485/ CAN two communication interfaces for selection, single turn absolute encoder with 50mA/ 100mA working current. 14 position rotary encoder offers high quality, high resolution and optional installation advantages.

    Specification

    Model ATO-RE-38R016384 ATO-RE-38C016384
    Electrical parameters Communication interface RS485 CAN
    Protocol Modbus rtu CAN 2.0
    Working voltage 5V-24V
    Working current 50 mA 100 mA
    Baud rate 9600-115200 (default 9600) 50k-1000k (default 500k)
    Resolution 14 bit (16384)
    Encoded output Natural binary code
    Outer diameter/ shaft diameter 39mm/ 50mm/ 39mm
    Shaft diameter/ blind hole 6mm/ 8mm/ 8mm
    Working current 50 mA
    Linearity 0.001
    Kernel refresh cycle 50 uS
    Station numbeer/ address 1-127 (default 1)
    Electrical life >100000h
    Mechanical parameters Maximum machanical speed 1000 rpm
    Shell/ flange material Zinc-nickel coated steel/ Aerospace aluminum
    Shaft material Stainless steel
    Bearing material Bearing steel
    Maximum load of the shaft Axial 20N, radial 80N
    Starting torque 0.006 Nm
    Environmental parameters Operating temperature -40-85
    Storage temperature -40-85℃
    Humidity 98% (No condensation)
    Waterproof Shell: IP54/ IP67; Shaft, bearing: IP65/ IP67
    Wiring methods Red Positive power sipply (5V, 9-24V)
    Black Ground (GND)
    Yellow ZR
    Green RS485B CANH
    White RS485A CANL

    Dimension (mm)

    Shaft diameter 6mm, IP54

    Dimension of rotary encoder shaft 6mm

    Shaft diameter 8mm, IP54

    Dimension of rotary encoder of shaft 8mm

    Blind hole 8mm, IP54

    Dimension of rotary encoder of blind hole 8mm

    Shaft 6mm, IP67

    Dimension od rotary encoder of 6mm of IP67

    Shaft 8mm, IP67

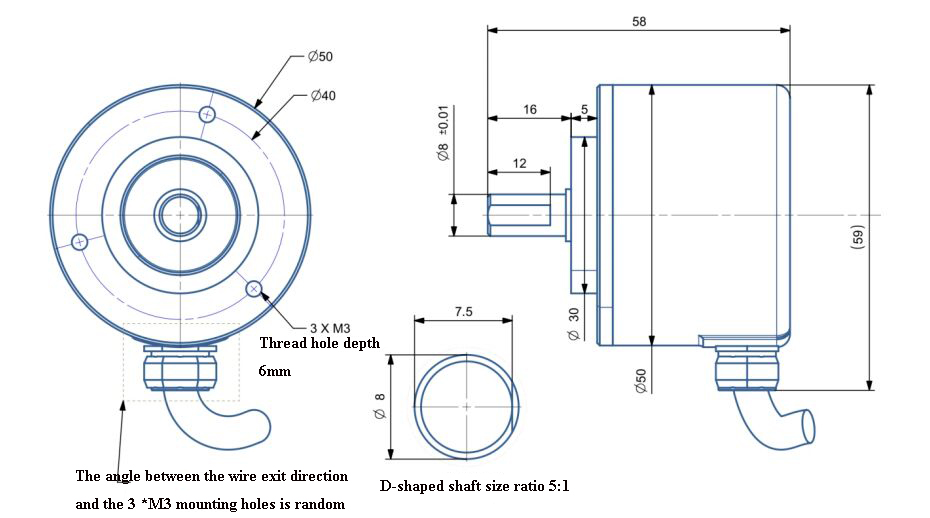

    Dimension of Rotary Encoder of 8mm IP67

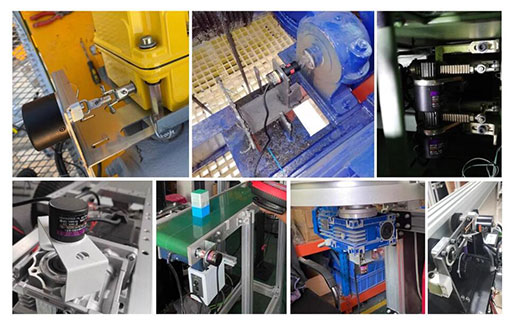

    Tips: Precautions for Installing and Using Rotary Encoder.

    1. Although the encoder itself will not lose the number of turns in the interference environment, it will cause interference to the data in the transmission process, so when there is a motor in the system or a strong electromagnetic interference environment, the encoder power supply should use an isolated power supply and external extension. It is best to use double-shielded cables and other measures for the communication line.
    2. The outer shell of the encoder shell and shielded cable should be well grounded to prevent damage to the encoder circuit due to lightning strikes or high-voltage static electricity!
    3. Except for the above zero-setting (yellow wire) allows grounding, any other signal wires of the encoder are forbidden to be short-circuited with each other. After power-on, avoid accidentally touching the signal wires, otherwise it may cause permanent damage to the
    circuit!
