    Digital Rotary Torque Sensor, 0.1/5/300/1000 Nm to 10000 Nm

    4.9 out of 5 based on 50 reviews | Write a review
    $939.15
    Digital rotary torque sensor with LCD display has the capacity range from 0.1 Nm/0.3 Nm/1 Nm/5 Nm/10 Nm/300 Nm/1000 Nm to 10000 Nm. LCD display can show torque, speed and power value at the same time. Dynamic torque sensor adopts two NSK shafts to ensure starting torque as low as 0.00001 Nm. Rotary torque transducer with 7 pin waterproof circular connector and 3m cable can measure both forward and reverse torque, and then output ±5V/0-10V/4-20mA/RS485 torque signal to PLC.
    *
    *
    *
    SKU: ATO-TQS-D03
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Rotary torque sensors have capacity range from 0.1 Nm, 0.3 Nm, 0.5 Nm, 1 Nm, 2 Nm, 5 Nm, 10 Nm, 20 Nm, 100 Nm, 300 Nm, 1000 Nm, 5000 Nm to ±10000 Nm. Torque sensor capacity can be customized according to customer requirements. ATO torque sensor can directly output standard signal (±5V/0-10V/4-20mA/RS485) to PLC, DCS and other automation control systems.

    Specification:

    Model ATO-TQS-DYN-200
    Capacity range * 0.1Nm~5 Nm 10Nm~100 Nm 200Nm~300 Nm 500Nm~800 Nm 1000Nm~5000 Nm 10000 Nm
    Net weight 1.3kg 1.4kg 2kg 3.5kg 8kg 16kg
    Shipping weight 2.5kg 2.5kg 3kg 4.5kg 10kg 18kg
    Display LCD display (show torque/speed/power value)
    Non-linearity 0.1%FS (Accuracy 0.001 * Capacity=Lowest Nm)
    Hysteresis 0.03%FS
    Repeatability 0.03%FS
    Temperature drift on zero <0.01%FS/℃
    Temperature effect on output <0.01%FS/℃
    Power supply DC 24V
    Consumption current <150mA
    Load resistance ≥2kΩ
    Output torque * ±5V, 0-10V, 4-20mA, RS485, RS485 & ±5V, RS485 & 0-10V, RS485 & 4-20mA
    Software Option* Including software and USB to RS485 cable, you can install software on your computer (Win 8/ Win 10 system) to monitor torque data and graphs.
    Output speed 60 pulse per revolution (OC output is standard configuration, and 5V TTL output is optional)
    Response frequency 1kHz
    Acquisition speed 550/1200 times/s
    Signal delay 0.6ms
    Ultimate overload 200%FS
    Rated speed 10000rpm
    Maximum speed 15000rpm
    Protection grade IP43
    Maximum Deformation 0.149°/1Nm at 2.60*10rad (The maximum deformation angle generated by 1Nm at 2.6*10rad rotation arc is 0.149°)
    Inertia moment 0.38x10-4 - 0.35x10-3 kg·cm2
    Natural vibration frequency 19.4kHz
    Torsion constant 0.833×10Nm - 3602.7×10Nm/rad
    Elastic element material 17-4 stainless steel
    Operating temperature -10℃~+70℃ (14~158℉)
    Humidity 0~85%RH
    Electrical connection 7 pin waterproof circular connector
    Cable length 3m (Φ5mm)

    Details

    0.1Nm to10000 Nm Digital Rotary Torque Sensor Details

    Connection:

    Digital rotary torque sensor connection

    Dimension (unit: mm):
    1. Dimension for capacity 0.1~5 Nm (Basic Thread: 53*53, 4-M8-1.25 depth 10)

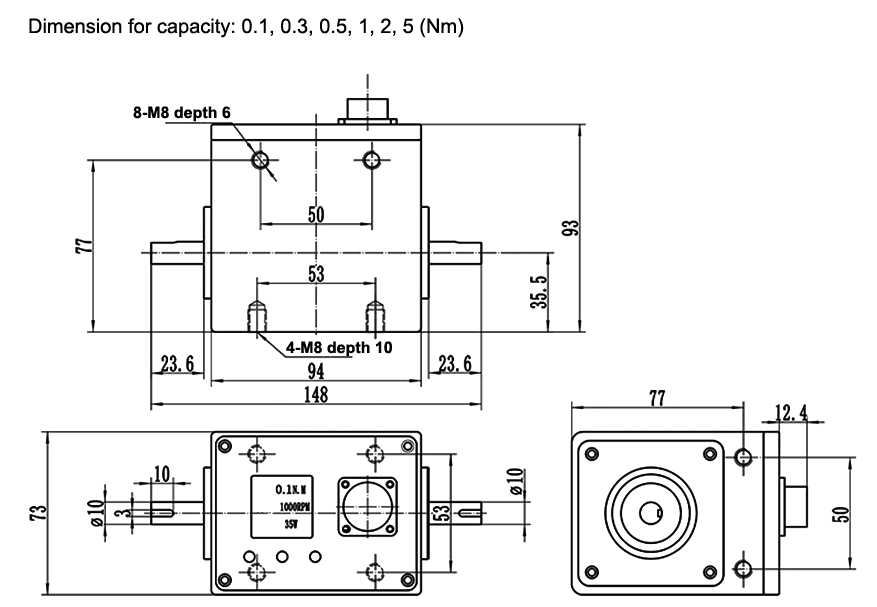

    Rotary torque sensor dimension for capacity 0.1- 5Nm
    2. Dimension for capacity 10~100 Nm (Basic Thread: 53*53, 4-M8-1.25 depth 10)

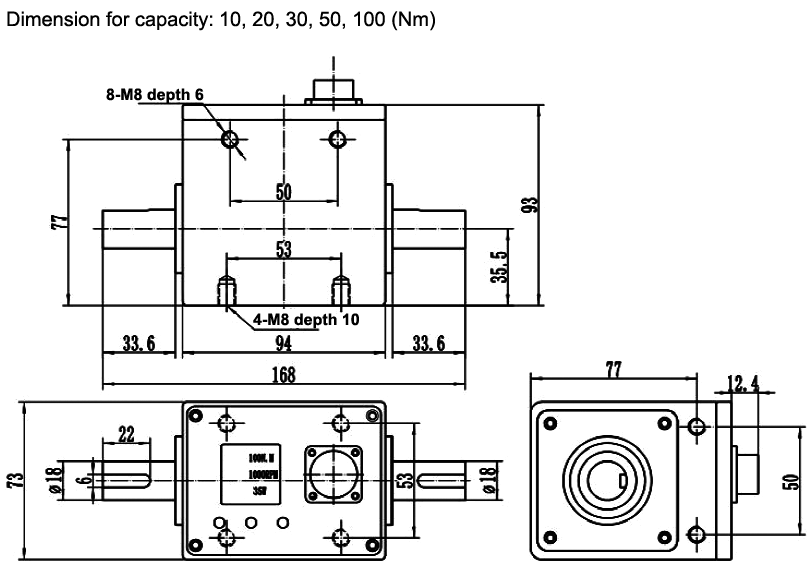

    Rotary torque sensor dimension for capacity 10-100 Nm
    3. Dimension for capacity 200~300 Nm (Basic Thread: 53*53, 4-M8-1.25 depth 10)

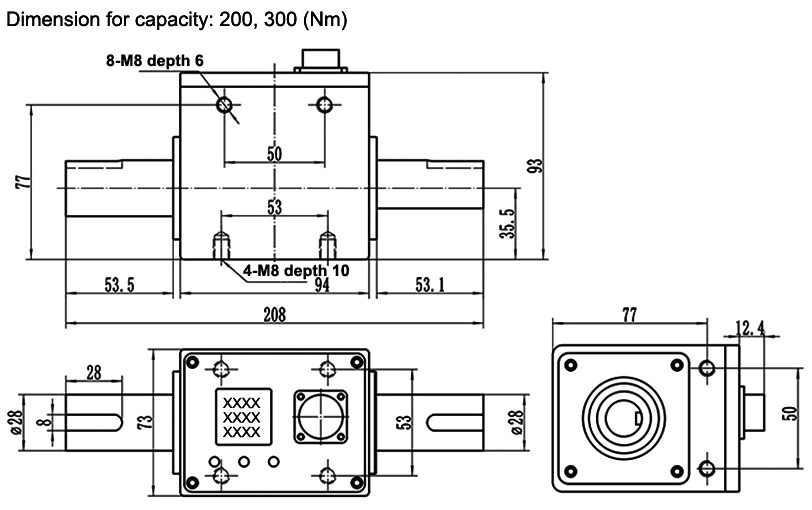

    Rotary torque sensor dimension for capacity 200-300 Nm
    4. Dimension for capacity 500~800 Nm (Basic Thread: 75*60, 4-M8-1.25 depth 12)
    Rotary torque sensor dimension for capacity 500 800 Nm
    5. Dimension for capacity 1000~5000 Nm (Basic Thread: 75*60, 4-M8-1.25 depth 10)
    Rotary torque sensor dimension for capacity 1000-5000 Nm
    6. Dimension for capacity 10000~20000 Nm (Basic Thread: 120*80, 4-M12-1.75 depth 25)

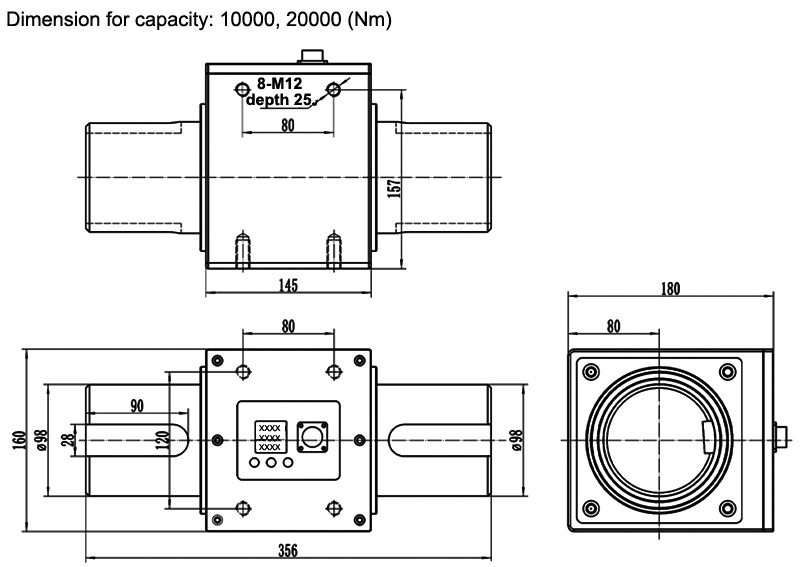

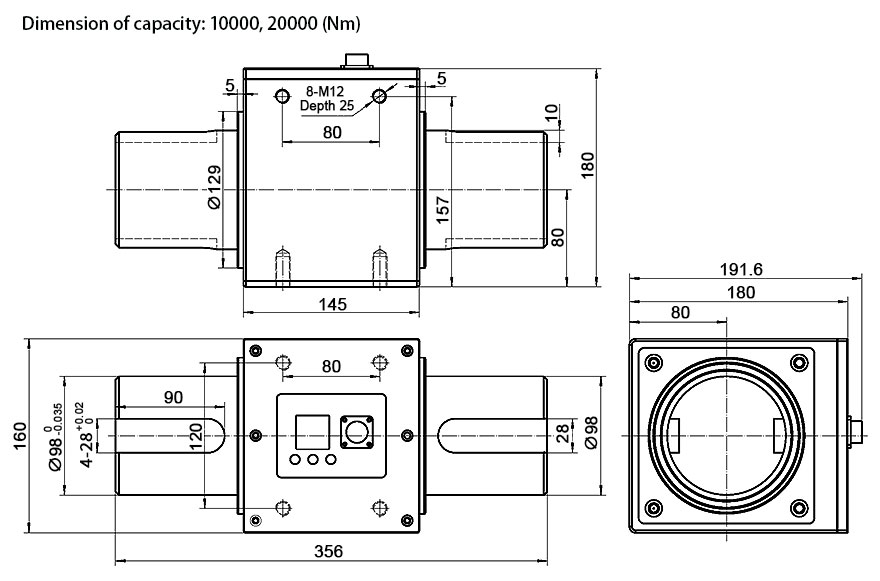

    Rotary torque sensor dimension for capacity 10000-20000 Nm

    How to Wire & Set Digital Rotary Torque Sensor

    Digital rotary torque sensor feature a wide capacity range from 0.1/5/300/1000 Nm to 10000 Nm, with optional RS485 as well as other types output signals. Equipped with a 7 pin waterproof circular locking connector and 3m cable, this torque sensor can measure both forward and reverse torque. The following video will show you how to wire and set a ATO rotary torque sensor.

    How Torque Sensor Outputs Working with Software

    A torque sensor is a device used to measure torque. Its working principle is to detect the torque acting on an object and then convert it into an electrical signal for output. These electrical signals can be read and input into a computer system, analyzed and processed by specialized software to obtain accurate torque values. This video shows how to operate the torque sensor and its dedicated real-time monitoring software, as well as five frequently asked questions about the specific operating steps.

    Torque sensor analog output wiring experiment

    The experiment is mainly to verify the performance and accuracy of the torque sensor. The torque sensor force measurement range is from 0.1Nm~5000N.m, output 0~5V/0~10V/4~20mA/Modbus, etc.

    Torque Sensor Modbus Communication via RS485 Interface

    This video show you how to wire and set a torque sensor in Modbus mode via S484 interface as a walkthrough of one of the applications of torque sensors.

    Existing reviews of Digital Rotary Torque Sensor, 0.1/5/300/1000 Nm to 10000 Nm
    Build a machine to test bits as per attached
    I want to build a machine to test bits as per attached.
    I would like to see the amount of torque from the drill and be able to set a given torque resistance, my drill would cycle on and off. Let me know what of your products I would need, I would like to be able to output the data to a computer.
    From: Karl | Date: 08/05/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. To see the amount of torque from the drill, what is the torque measurement accuracy requirement? And what is the speed range (rpm) for system testing? Our digital torque sensor is very suitable for your use.
    2. You can apply resistance through a magnetic particle brake paired with a magnetic particle controller. Do you have any other requirements for magnetic powder brakes?
    RPM vs. Torque and Power
    Hello,

    I am interested in purchasing the 500nm version of this but would like to understand its capabilities a little more.

    Does the sensor provide feedback allowing adjustment in RPMs to take readings from free speed down to stall?  From what I see it appears to just output current speed, torque and RPM, is this correct? I would like to collect the data and be able to graph it to analyze torque and power vs. RPM curves.

    I am working with a 200 ftlb air ratchet for industrial applications and need to understand the power output at various RPMs.
    From: Jack | Date: 14/03/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    ATO-TQS-D03 can sample torque and RPM at the same time and calculate the real-time power. However, the sampling rate of RPM is 25Hz at maximum, and the sampling rate of torque is 1KHz, so the rate of generating the real-time power data can only be 25Hz. Does this sensor meet your requirement?
    Help me to Digitalized my rotational torque data.
    1. I want to check the torque of my product within the range of 1-9 Nm (Spec range). I plan to attach it to a jig socket, insert my product, and manually rotate it by hand through a 360-degree angle. Can this sensor provide and transmit the average torque data as a single value after rotating it 360 degrees?

    2. Which option should I select based on the application described above?

    3. Do you have any authorized dealers in Malaysia?
    From: Ridwan | Date: 16/02/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    If your maximum torque is less than 10Nm, then you can choose the 10Nm specification. Also you can purchase the RS485 interface version, which can output a digital signal, you can read the real time torque information, and you can also purchase our software to monitor the real time torque.
    Of course our customized version shows the average torque. If you need customized version, please contact us at sales@ato.com (America), service@ato.com (Europe & Asia & Africa).
    We have no distributor in Malaysia for the time being.
    We are hoping for your response on this.
    We have a torque sensor from ATO with the software.
    We have some questions regarding the ATO software 200 torque reading from the torque sensor

    Question 1
    It indicates a transfer rate of 500 readings per second at 38400 bps. However, in Excel, the software seems to send approximately 200 readings per second. The question arises: is there a relationship between the time and the torque/RPM data transmitted by the torque sensor? Essentially, are the readings (1 to 217) as per Excel sheet from the torque sensor progressively increasing over time?

    Question 2
    We have inquiries about the correlation between RPM and torque sensor, as in our data, there are instances where RPM is rising while torque lacks any recorded readings.
    From: Max | Date: 06/02/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. Regarding the amount of data, the manual may be a little wrong.

    If you want to achieve a transfer rate of 500 readings per second, the torque sensor baud rate needs to be changed to 57600, and the software must also be changed simultaneously.

    2. Regarding the increase in speed but No change in torque (according to the data sheet you provided, the torque has Not changed).

    This means that only the speed of your motor has increased at this time, but your load has Not changed, that is, the torque has Not changed.
    I need some help
    How can I connect 2 sensors at the same time, I need to see the parameters for the input sensor and the output sensor. It seems that only one sensor can be connected, but I need 2 at the same time, to have a clear comparison.
    From: Oliver | Date: 08/01/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    This software is available in different versions, single channel to connect one sensor or 4 channels to connect 4 sensors.  please provide us with 2-3 complete display pages of the software for confirmation. Which version of your software is it? If it is a single channel, we can change it to a multi-channel version for you.
    Question for the rotary torque sensor
    I'm interested in purchasing the rotary torque sensor

    I have two questions:
    1) Is the calibration certificate NIST-traceable?
    2) Can you point me to a description of how the associated software works? I'm assuming I can access the Serial Port data with or without the associated software right?
    From: logan | Date: 08/01/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. We can Not provide NIST-traceable certificate, we can provide IAS certificate, is that acceptable?
    2. Associated software communicates with the sensor through RS485 port, and of course you can refer to the comm protocol and realize the communication all by yourself.
    use for the high accuracy measurements.
    For our case, it won’t be practical to access the sensor and reset manually in every power cycle. So, is it OK if commanded by the PLC after each power ON through RS485 channel? We expect a high stability of sensor as the device we designed is intended to use for the high accuracy measurements.
    From: Dylan | Date: 06/11/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Clearing instructions can be sent via communication:
    Send: 01 05 00 00 ff 00 8C 3A (clear operation)
    Return: 01 05 00 00 ff 00 8C 3A
    Question about the digital torque sensor
    We noted in the sensor that the ZERO value is shifting automatically after few minutes of power up. What could be the reason? The shifting is around  /- 0.03 Nm
    Is it normal and within the sensor stability capabilities.  What is the best way to overcome the zero offset shifting issue?
    From: Oliver | Date: 06/11/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    We also need to know: Is the torque sensor completely unloaded? Is there a big temperature difference at the sensor location?
    You can long press K3 to clear and observe the data changes.
    Question about the digital torque sensor
    I am interested to know about the digital torque sensor (Capacity: 100Nm, Output signal: 4-20mA).
    Can this particular model read torque less than 10 Nm?
    Will the sensor provide torque values even at low speeds (input shaft rotated by hand)?
    Can the sensor take axial loads, and is there a possibility that the axial load might affect the torque measurement?
    If the product does not work as needed, can it be returned?
    Regards,
    From: Jude | Date: 19/10/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. Yes, this unit can read torque less than 10 Nm, and can also provide torque values even at low speeds, No problem.

    2. For the 100Nm range, the sensor can withstand an axial load of up to 200Kg without affecting the measurement. Exceeding this value will affect the measurement accuracy.

    3. If the product is Not damaged artificially and has No quality problems, you can apply for return within 30 days. For details, please see: https://www.ato.com/shipping-returns
    Detailed about torque sensor
    I would like to buy a torque sensor (maximum torque larger than 1kNm, maximum speed higher than 3000rpm) for our motor testing platform.  Could you please send me a quote with detailed descriptions? Thank you very much!
    From: Kristen | Date: 17/10/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    We recommend Digital Rotary Torque Sensor, SKU: ATO-TQS-D03, capacity 1000Nm, see spec on: https://www.ato.com/rotary-torque-sensor-10000-nm

    Also, for “maximum torque larger than 1kNm”, is the maximum torque 1000Nm?
    Question about the radix point
    Default value when we received the unit, it was 2 for a display range of  /-50.00N.m. If I changed this value to 3, the range on the display change to  /-5.000N.m? Is this correct?
    From: Zephyr | Date: 16/10/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    3# parameter is the setting of the number of decimal places, you can Not modify the default value 2 to 3 or the range value of the sensor will change from 50 to 5.0.
    We suggest you restore the original value.
    Powder brake can get out of alignment over time?
    This powder brake can get out of alignment over time (or with certain use cases)? If so, we do we need to do exactly? Tap is with a rubber hammer to redistribute the powder?
    And I understand that it’s critical to stay under the rated current. Any other advice?
    From: Cliff | Date: 16/10/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    This powder brake is used for braking, as long as it can produce brakes normally, it can be used. As for the deviation of the brake installation center, it is related to factors such as your system installation structure and application strength. This powder brake input voltage is rated at 24VDC, if you lower the voltage it will also pull down the brake output power.
    Could you be more specific for torque sensor?
    Please could you be more specific?
    I have Panasonic plc and do I only need to see two data in the plc through rs485?
    For example, I want to see RPM and Torque. With the plc, I will send the data to an HMI and I will be able to graph that data. Please help me.
    From: lailli | Date: 28/08/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The PLC reads the torque and rotational speed of the torque sensor through 485 and then sends the read torque and rotational speed to the external display screen, all of which require writing a communication program. Unfortunately, we do not provide these.
    How the data is to be read from the sensor to the PLC?
    Hello, I am trying to communicate the torque sensor to a PLC through RS485, but I cannot communicate.
    It is a Panasonic FP0R plc. What are the addresses in decimal to place in the plc so that it can read torque and rpm?
    In the manual, I cannot clearly understand how the data is to be read and written from the sensor to the PLC.
    Thank you very much in advance, and I look forward to your prompt response.
    From: niki | Date: 28/08/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The communication address in the product manual is an address without offset.
    Some PLCs need to add an offset address of 40000. You can try to read the PLC start address directly.
    Please refer to our product brochure and video links:
    https://www.ato.com/Content/doc/Digita-rotary-torque-sensor-user-manual-ATO-TQS-DYN-200.pdf
    https://www.ato.com/Content/doc/digital-rotary-torque-sensor-user-manual-upgrade-version.pdf
    https://youtu.be/-1lpJZA6Wn4
    List of errors
    Good afternoon!
    We have the digital rotary torque sensor ATO-TQS-D03 (DYN-200) .
    Now it doesn't measure torque. It's writes "error" or "error4".
    What do these errors mean?
    From: Evgeniy | Date: 22/08/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Please contact our after-sales team at support@ato.com with a detailed description of your problem, wiring method, and attached the wiring diagram.
    Please provide a quote of torque sensor we need
    Thank you for the help!
    We are trying to use this torque sensor to read  2.5Nm and -2.5Nm.
    Would the 5 Nm capacity with ±5V be the device we should be looking to use?
    If so, could you please provide a quote?
    From: heard | Date: 24/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    We recommend ATO-TQS-D03 with a range of 10Nm, which can distinguish between positive and negative torque.
    help with RS485 communication
    Hello, I am trying to communicate the torque sensor to a plc through RS485, I cannot communicate, it is a panasonic FP0R plc, what are the addresses in decimal to place in the plc so that it can read torque and rpm, in the manual I cannot clearly understand how the data to be read and written from the sensor to the plc is routed, thank you very much in advance, I look forward to your prompt response.
    From: llan | Date: 20/07/2023
    Was this review helpful? Yes No (0/0)
    Why are they not the same?
    I have a torque sensor DYN-200 0-500Nm.
    We tried to check the correctness of the sensor torque using a torque wrench of 35 Nm and it read the sensor torque of 324 Nm with setting dec. This point, why not the same?
    From: yuri | Date: 19/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    What is your order number?
    Are you reading via RS485?
    The feedback from the sensor is a hexadecimal integer, you need to convert the feedback data into decimal.
    Calibration of rotary torque sensor
    Is there any standard calibration done on the sensors or could calibration be done?
    From: skyla | Date: 19/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The torque sensor has been calibrated when it leaves the factory, and the calibration parameters are stored inside the sensor.
    If there is no problem in use, it does not need to be calibrated again.
    If you have any questions during use, you can contact us at any time.
    I'm looking for a suitable torque sensors
    I'm looking for a pair of torque sensors that can measure shaft torque on either side of a gearbox, running in both directions.
    Our configuration is motor - torque sensor - gearbox - torque sensor - load.
    On the high torque side we will have a maximum torque between 240 and 310 Nm (we have flexibility in the system design right now to allow for that range of maximum torques) and on the low torque side, we have a maximum of torque of 100 Nm with a maximum angular speed of 165rpm.
    We were initially considering rotary torque sensors for both sides, however, we are budget conscious and so we also wanted to consider using a torque reaction sensor on the motor side.
    How do the two compare in performance, would having a torque reaction sensor connected between the motor stator and the frame the motor is mounted on seem like a suitable application for such a sensor?
    I also wanted to discuss accuracy and reliability, looking at the prices on your website your products are significantly less expensive than competitors I just wanted to discuss that, and any impact the low cost may have on your sensor's accuracy and/or reliability.
    If you believe that you have any products that are suitable, can you please provide us with budgetary and lead time estimates to Toronto, Canada?
    Lead time is important to us and we likely can only accept a maximum lead time of 4 to 5 weeks due to project constraints.
    We intend to use a Labjack T7 Pro to read an analog voltage as the torque transducer output, if possible.
    From: fanny | Date: 18/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    We recommend Digital Rotary Torque Sensor. This torque sensor can meet your needs.
    Please refer to the user manual: https://www.ato.com/Content/doc/digital-rotary-torque-sensor-user-manual-upgrade-version.pdf
    Can it be coupled on the shaft of the load cell without using the bearing?
    When I read the user manual for the unit, we need to install the bearing between the drive and shaft of the load cell and a bearing between the load shaft.
    Is it possible to be coupled directly on the shaft of the load cell without using the bearing?
    From: ritchie | Date: 17/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    What is the load on your equipment?
    What force needs to be measured?
    Please describe your equipment application environment in detail.
    It would be better if there are drawings or physical pictures.
    Is the 4-20 mA output of torque sensor scaled to correspond to 0 -100 N.M.?
    Thanks for the info.
    A couple more questions:
    We ordered the meter with the 4-20 mA output
    (and the label on the meter box lists a range of 100 N.M.).
    Is the 4-20 mA output scaled to correspond to 0 -100 N.M.?
    Also, is the 4-20 mA output loop powered (need to provide power for the 4-20 mA loop) or self-powered (only need to measure 4-20 mA from the meter)?
    From: irving | Date: 17/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. Yes, 4-20 mA output scaled to correspond to 0 -100 N.M.
    2. It's self-powered (only needs to measure 4-20 mA from the meter).
    Question about Modbus RTU communication
    Hello! I purchased one ATO-TQS-DYN-200 sensor and I want to interface it to my custom-made PCB, via a MAX485 transceiver: on one side I connect the signals A and B coming from the sensor, on the other side I will connect the Rx, Tx and DE/RE to my PCB, so that I will be able to read the measurements of the the sensor using Modbus RTU protocol. During my implementation, I am noticing that when the signal DE/RE is low, the signals A and B are very noisy and this causes problems in the reading of the reply coming form the TQS-DYN-200. I can see this noise using a logic analyser.
    Could you help me solving the issue?
    From: Crobu | Date: 14/07/2023
    Was this review helpful? Yes No (0/0)
    Want to ask some questions about the torque sensor.
    I want to ask some questions about the torque sensor:
    1. Is the RS485 output signal using Modbus RTU protocol?
    2. Can your software work with other sensors from other companies via RS485?
    From: Sapelloly | Date: 27/06/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. Yes, the RS485 output signal using Modbus RTU protocol,
    2. Our software can work with other sensors from other companies via RS485, as long as the receiving protocol is the same.
    Is there a way to decrease the torque sensor friction?
    I have purchased the a rotary torque sensor presented in the link https://www.ato.com/rotary-torque-sensor-10000-nm#quickTab-reviews for 0.1Nm maximum torque like 2 years ago.
    I didn't use it since then, now when I'm using it the shaft looks to be heavy for a 0.0001Nm resolution and a major portion of the torque is lost due to the torque sensor friction.
    Is there a way to decrease the sensor friction (by lubrication or something) and how?
    And is it normal for the shaft to be that heavy?
    Note: I can provide a video showing how heavy is the sensor rotation.
    From: boris | Date: 15/06/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    We think it's because of the increased starting torque friction that you've had for a long time without using it.
    You can use a heat gun to heat the bearings at both ends of the sensor, and then run the sensor at about 2000rpm without load for 20 minutes, and then check whether this can reduce the starting resistance.
    Where can I find torque sensor coefficient?
    Currently I am in Hobart Indiana to finalize our FAI preparations. I have one questions though on how to calibrate the sensor. I am particular looking for the “coefficient” mentioned in your user manual on page 3. Where can I find this value on interface 1?
    It probably has a different name as no “coefficient” is mentioned. Can you assist?
    If possible, please send screenshots to easy resolve.
    Thanks.
    From: adler | Date: 13/06/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. The sensor has been calibrated before leaving the factory, as long as the sensor is not overloaded and the torque is not faulty, so you do not need to calibrate. Calibrating the sensor yourself is cumbersome and requires calibration rods and weights.
    2. The coefficients have been calibrated at the factory, and we do not recommend you to modify them unless necessary. If the parameters are disordered due to improper operation, you can restore the factory settings by pressing "K2" 5 times continuously under the main display page.
    Torque sensor tolerance calculation sheet
    Thanks a lot for your response and quotation.
    Meanwhile we created a tolerance calculation sheet, which is attached as excel file.
    We need to understand if your product is capable to measure our stepper motor from 2 Nm to approximate 20 Nm.
    May you check this calculation sheet with your tech team, if it is correct?
    From: coty | Date: 12/06/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. Yes, we check that the tolerance calculation sheet is correct and can be achieved.
    Now you choose the torque sensor ATO-TQS-DYN-200, which can also realize this function.
    2. About torque sensor ATO-TQS-DYN-200, do you need to configure data acquisition software?
    We can provide the calculation table test report similar to the attachment for your reference.
    Speed Sensor Readout
    I have very similar question about reading out the speed sensor of my DYN-200 using digital counter. I didn't realize that the OC was the default option and I actually need TTL. How can I convert the signal so that my TTL device can read it out?
    From: Arky | Date: 07/06/2023
    Was this review helpful? Yes No (0/0)
    Some question of torque sensor
    For the output speed of this sensor, the specifications state the ''OC'' output is standard configuration, and 5V TTL output is optional.
    Does ''OC'' mean open collector?  Also, how does the 5V TTL output option get implemented?
    Is it a different part? Thanks.
    From: lisa | Date: 06/06/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, OC output refers to open collector output. When using OC output, it is necessary to add a pull-up resistor to the collector. The pull-up resistor can be selected between 1K-10KΩ. Generally, a 5.1KΩ resistor is selected as the pull-up resistor. Please refer to the attached circuit diagram.
    We do not recommend you to use 5V TTL square wave output, otherwise the sensor will burn out if the circuit is connected incorrectly.
    Some questions about rotary torque sensor
    I am writing to ask 2 questions regarding the ATO-TQS-D03 and the DAQ software provided by ATO.
    We have been conducting some torque measurements on a system and I had a question regarding the torque sensor displayed numerical values on the LCD display versus the recorded numerical values in the DAQ software. I noticed that both the RPM and torque measurements in the DAQ software are recorded as 10x larger than the displayed and as far as I can tell true values.
    I have reviewed all the DAQ software settings and I cannot clearly find a parameter that would allow me to adjust the DAQ recorded value to the true value which is 10x lower. Is there a way to change this setting in the DAQ software so that I don't have to adjust the numerical values after I export them? Is there a setting that I can adjust on the torque sensor itself in the parameter settings that may be able to modify the values to the true value when being sent to the DAQ software?
    My second question is about some of the measurements that we have been getting on the system we are testing. I have provided three pictures, one of the simplified system and a screenshot of the torque measurements. My supervisor is curious if, given the system we are testing, in your experience do the oscillations in the measurements appear generally correct to you? With respect to the values in this plot, I actually divided the raw RPM and torque values by 10 to get the graphed values which are the same as the displayed values on the LCD and what seem to be more theoretically correct to the values we were anticipating.
    I provided a third picture of the torque measurements of a radial bearing supported screw that I conducted some torque measurements on and we were wondering if you might be able to shed some light on why the values are oscillating so regularly, we have some ideas but the team wanted me to reach out to the experts to hear what you thought.
    The torque and RPM are different in each graph but the legend is at the bottom of each picture. Any help would be greatly appreciated!
    Just for reference we are using the ATO-TQS-D03 with 5N-m capacity,  /-5V output and we are purchased the USB to RS485 cable pus software that is supplied by ATO.
    From: zoey | Date: 10/05/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. The torque decimal point and rotational speed decimal point in the software should be adjusted until the torque sensor shows synchronization.
    Because this software actively uploads integers, but the torque range is different, you need to manually change the decimal point.
    2. Regarding the regular vibration you mentioned, it should be that the coaxiality of the equipment is out of tolerance, and the difference in coaxiality should be less than 0.05mm.
    Please adjust the center of the mechanical installation.
    To make sure some questions
    To make sure, I would like to ask again whether we are both talking about 30 times gravity and not about grams. Can you please confirm that again?
    From: Daye | Date: 06/04/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Capacity: 0.1Nm. The axial direction of this sensor can withstand a maximum load of 10 times, less than 30 times.
    In our experiments
    We would like to use the digital rotary torque sensor in one of our experiments with the axis vertical. Can you tell us if it can withstand a momentary load of 30G in this position?
    From: Glack | Date: 03/04/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, the axial direction of this sensor can withstand a momentary load of 30G in this position.
    Do you provide the connector/cable ?
    I'm interested in using your torque sensor in a test jig we are building to cycle test a hinge. We would like to actuate the hinge (both clockwise and anticlockwise) at approximately 0.1 to 1 rpm over the range of about 180 degrees, and measure a peak torque between 2-3 N.m in both directions. We are intending to characterise the average and peak torque that the hinge requires over a large number of cycles.

    In particular, I was looking at the 5 N.m model with the RS485    /- 5V option - would this work for our application ? Is the 5V output directly from an amplifier (ie analog) as opposed to generated by a DAC?

    Do you provide the connector/cable ? We do not need the USB version of the cable or the software, as we have a custom system it will be integrated with (RS485 is already present)

    Could you please also tell me if you have any information on the number of cycles / the lifetime of the device?
    From: Nata | Date: 06/03/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. ATO-TQS-D03 can be tested according to your requirements, please refer to the link: https://www.ato.com/rotary-torque-sensor-10000-nm
    2. “I was looking at the 5 N.m model with the RS485 + +/- 5V option - would this work for our application ?”
    It depends on what signal you are collecting.
    “Is the 5V output directly from an amplifier (ie analog) as opposed to generated by a DAC?”
    485 signal and analog can be output at the same time.
    3. Our sensor comes with a 3m signal line by default.
    4. Sensor lifetime: If it is not used beyond the range, the life span is 1 million times.
    Can this equipment output PEAK readings of torque?
    I’m currently working on equipment for capping operations and am looking to implement a sensor that can provide readings for torque and RPM of a main shaft. I saw that ATO offers digital rotary torque sensors (https://www.ato.com/rotary-torque-sensor-10000-nm) and had a few questions regarding the device.

    Can this equipment output PEAK readings of torque? One of the key metrics for my equipment will be maximum torque applied before the operation ends
    Can this device be mounted so that the shaft is vertical? Could the red housing be left hanging free in the air or will it have to be mounted to some supporting fixturing?
    Do the torque sensors only come in these keyed shaft configurations?

    Please let me know if you are able to answer these questions!
    From: Womin | Date: 06/03/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. PEAK readings of torque need to be equipped with instrument ATO-D054
    2. Can be installed vertically. The shell needs to add a baffle to prevent rotation.
    3. The output shaft of the torque sensor is equipped with keyed shaft dconfigurations.
    Please refer to the figure below for the physical picture of the instrument.
    Cold Performance
    We use multiple 100 Nm sensors and we are quite content with them.

    My question is, can we operate these sensors in colder temperatures than -10℃,  i.e. will they be operational in -50℃ with an error?

    What is the IP classification?
    From: Mine | Date: 28/02/2023
    Was this review helpful? Yes No (0/0)
    Looking for help choosing a rotary torque transducer for testing a small experimental wind turbine.
    I need a range of 0-50 Nm and 0-1200 rpm that can send a signal 0-5V or 0-10V to a data logger. Also needed will be necessary shaft couplers to go from the transducer to 25mm shafts. Any assistance in selecting the correct equipment is appreciated.
    From: Jaivik | Date: 12/12/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Our digital rotary torque sensor with 50Nm capacity and 0-10V output signal will meet your requirements.
    Is this Digital Rotary Torque Sensor achievable for my application?
    Is this Digital Rotary Torque Sensor achievable for my application that requires 4 torque transmitters to be mounted on the shaft between the gear drive and the equipment. 4-20mA output is required. This is also in Class 1 Div 2 group C/D.
    From: DeLisle | Date: 12/12/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. What is the range of Nm measured by these 4 torque sensors in the system application?
    2. What is the measurement accuracy?
    3. Is 4-20 mA signal for 4 sensors outputting combined or 4-20mA for each sensor?
    Please note that our torque sensor is not Class 1 Div 2 group C/D, it is gas explosion-proof standard.
    I am interested in purchasing a digital rotary torque sensor
    I apologize in advance. I am not at all in the field of testing rotary systems. I am interested in purchasing a digital rotary torque transducer. What I am asking is what reference load is recommended at the other end of the device. I would like to connect a small DC motor at one end and measure its torque/rotation per minute for a given voltage input. Does the other end of the sensor have a rotating disk of known weight and moment of inertia as a reference?
    From: Devito | Date: 12/12/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    On the other end of our torque sensor spectrum, we recommend a reed brake. In order to recommend a suitable brake model for you, we need to know the following.

    1. What is the output torque and what is the maximum speed of this small DC motor?
    2. What analog signal (±5V, 0-10V, 4-20mA, RS485, RS485 & ±5V, RS485 & 0-10V, RS485 & 4-20mA) do you need to output from the torque transducer?
    RPM Signal
    What wires do I connect to the breakout board to read the torque with a serial converter?
    From: Stephen | Date: 25/10/2022
    Was this review helpful? Yes No (0/0)
    RPM Signal
    What is the signal output type for RPM. Does this output in Quadrature?
    From: joshua | Date: 13/07/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Output pulse signal, but not Quadrature signal.
    Use for continuous rotation?
    May I ask for a clarification on the maximum rotating angle specification? "2.60*10rad (0.149°)". Can this sensor be used for multiple rotations?

    2.6 * 10 rad = 26 rad = 1490 deg
    What does the 0.149° value reprepsent?
    From: Timothy | Date: 05/05/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. This torque sensor can be rotated multiple times without limit.
    2. 0.149° means: The maximum deformation angle generated by 1Nm at 2.6*10rad rotation arc is 0.149°.
    Negative torque on 4-20mA outpput
    We are using a 4-20mA output sensor, and we want to read torque in both directions. It seems the 4-20mA only supplies the absolute value. Is there a way that we can set the 0Nm at 12mA and get both positive and negative readings around that point?
    From: Tom | Date: 04/04/2022
    Was this review helpful? Yes No (0/0)
    Questions about torque sensor
    I am integrating the torque sensor ATO-TQS-D03 in a design.
    Per my calculations, the torque value to be measured could go up to almost 100Nm (93).
    What happens if we exceed this value due to the starting torque of the driving system?
    Do we just get bad reading, or is there a risk of mechanical or electrical damage?
    From: Mrsdish | Date: 03/01/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    If you exceed this value due to a starting torque of the driving system, it will cause the internal circuit board failure of the sensor or overload damage.
    We recommend that you choose two to three times the rated range of 100Nm. If the system starts with a high torque, you can choose 0 to 300Nm.
    Mounting holes
    For the 100 Nm model, Which holes are for mounting and anti-rotation?
    Can 4 M8 depth 10 be used for mouting?
    From: JiEun | Date: 18/11/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. The bottom thread hole is fixed, and the threaded holes on both sides can be fixed. The premise is that you must maintain that transparency when installing, and the transparency must be good.
    2. Can be installed.
    Which torque sensor do you think is more suitable for us?
    My name is Erlantz Otaola and I write on behalf of added value solutions, a company devoted to developing mechantronic equipment for big science and space. Currently, we are looking for a torque meter for a bench we are developing. This torque meter should measure up to 300 mNm with a minimum resolution of 0.1mNm. Looking at your page, we have come across the digital rotary torque sensor, which seems to fit our purpose. However, we would very much appreciate your assessment of this. Besides, we would like to know the price and lead time for the digital rotary torque sensor or any other you consider that fits our application better.
    From: Crawford | Date: 16/11/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, our ATO-TQS-D03 torque sensor is able to measure up to 300 mNm with a minimum resolution of 0.1mNm when the measuring range is 0.1NM.
    0.1~10000Nm digital torque sensor related information
    Will our ATO-TQS-D03 torque sensor be able to measure up to 300 mNm with a minimum resolution of 0.1mNm? If yes, then what is the measuring range?
    From: Flgardener | Date: 12/09/2021
    Was this review helpful? Yes No (1/0)
    ATO Responded
    Yes, our ATO-TQS-D03 torque sensor is able to measure up to 300 mNm with a minimum resolution of 0.1Nm when the measuring range is 0.1NM.
    Usually the measurement resolution is 1/1000 of the measuring range. So, what is the measuring range for customer requirements?
    How low is the measurement of the digital torque sensor?
    SKU: ATO-TQS-D03, your 100Nm will measure how low?
    From: Blair | Date: 06/09/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    SKU: ATO-TQS-D03
    For 100Nm capacity, the lower Nm it can measure will be 0.1NM.
    Calculation: Range 100NM*Accuracy 0.001(1/1000)=0.1
    Design of digital rotation torque sensor
    For your ATO-TQS-D03 digital rotary torque sensor, is this a contactless design or with slip rings?
    From: Kaptain | Date: 17/08/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    It's a contactless design.
    Information about digital rotary torque sensor
    SKU: ATO-TQS-D03
    what is the zero torque output voltage of the 0-10V option?
    I want to get negative torque in case of reversing direction, do I need to use  /-5V output?
    From: Witucki | Date: 29/06/2021
    Was this review helpful? Yes No (1/0)
    ATO Responded
    Yes, you are right. If want to get negative torque in case of reversing direction, you need to use +/-5V output signal instead of 0-10V. So, when the +/-5V output, the positive torque will correspond to positive voltage and reverse torque to negative voltage.
    Torque sensor connection
    Can your torque sensor be setup such that one end is connected to the motor while the other end is connected to nothing? What sort of reading will I get if this is the case?
    From: Connor | Date: 08/04/2020
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Unfortunately, can't be connected like this. Because if the other end of the rotary torque sensor is not connected (no load equipment), there will be no data to compare between the input and output, and the reading will be abnormal.
    Load more reviews...
    Write your review for Digital Rotary Torque Sensor, 0.1/5/300/1000 Nm to 10000 Nm
    • Only registered users can write reviews
    • Bad
    • Excellent
    Customers who bought this item also bought

    Magnetic Particle Brake, Single Shaft, 3Nm-400Nm

    $319.89
    SKU: ATO-PB
    Magnetic particle brake, single shaft, rated torque can select 6Nm, 12Nm, 25Nm, 50Nm, 100Nm, 200Nm or 400Nm, maximum rated speed of 1800rpm, with maintain, braking, buffer start, tension control and torque limit. Electric brake has the advantages of quick response, simple structure, no shock vibration and energy saving. Manufacturer direct sales.

    24V DC 4.5A 100W Switching Power Supply

    $58.15
    SKU: ATO-SMPS-100-24
    Low price 24V DC switching power supply has universal AC input voltage (selected by a switch), 4.5A rated current and 108W rated power, cooling by free air convection, short circuit and overload protection, ideal SMPS power supply for all kinds of applications.

    One Diaphragm Coupling, 12mm to 25mm

    $136.98
    SKU: ATO-SC-GSM5645
    12mm to 25mm diaphragm coupling rated torque 25N.m, diameter 56mm x length 45mm, high speed operation, low noise, accurately assembled using high-strength, corrosion-resistant fasteners and have a long service life time, designed for connecting servo motors and stepping motors.

    10 kVA Isolation Transformer, 3 phase, 400 Volt to 240 Volt

    $2,635.71
    SKU: ATO-T-SG10KVA
    Safety 10 kVA isolation transformer is suitable for circuit of 50 or 60Hz, 3 phase, primary voltage 400V to secondary voltage 240V. The transformers is high quality with lower cost, manufactured direct sale and fully compliant with reduced low voltage regulations.

    1 kW Brushless DC Motor, 36V/48V, 3.18 Nm, 3000 rpm

    $415.85
    SKU: ATO-BLDC-1000R3
    Good price 1 kW 36V/48V BLDC motor and controller for sales, electric motor with 3000 rpm rated speed, 3.18 Nm holding torque, brushless design for long life, cost-effective replacement for brush DC motors. 3 phase brushless DC motor kit best for electric car.
